Medium pressure oil-free oxygen and nitrogen booster

Medium pressure oil-free oxygen and nitrogen booster

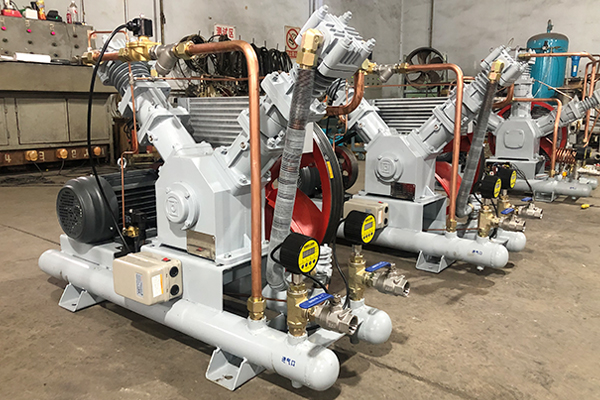

Reciprocating piston differential structure, single-acting air cooling, three-stage compression: integral circulating aluminum intercooler to ensure the exhaust temperature. Single and double units can be freely combined, controlled by an automatic pressure regulator, and can be started freely without special personnel on duty. An air storage tank is installed below to provide a stable air source, with little vibration, low noise, long life and easy maintenance. Provide a medium-pressure pure gas source, the waste gas does not contain oil, and does not pollute secondary products and gas facilities.


Product Feature


1. Oil-free design, the guide ring and piston ring are made of self-lubricating materials, 100% oil-free lubrication, and the bearing part is designed with high temperature resistance to avoid gas pollution during the compression process and ensure the purity of the gas.
2. Small size, light weight, easy maintenance, no need to add lubricating oil, low maintenance cost.
3. Microcomputer controller control, high compressor temperature exhaust, low intake pressure, high exhaust pressure, alarm, high degree of automation, reliable operation of the compressor.
4. Data remote display and remote control can be configured according to customer requirements.


Application industry

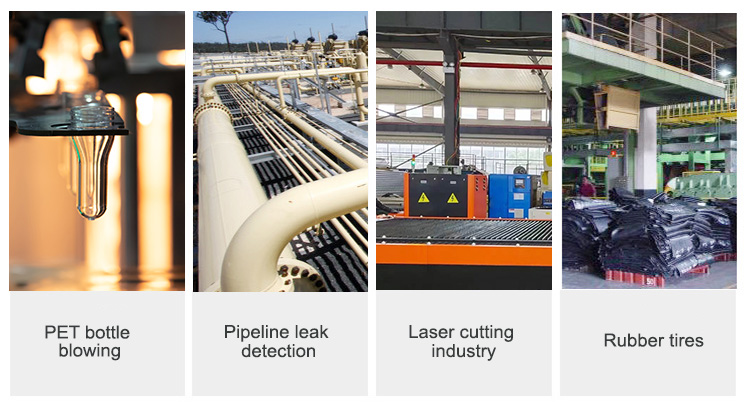

Widely used in process environments that require medium pressure (1.6MPa~3.5MPa, up to 4.0MPa), more suitable for air tightness test, pressure test, blow molding, bottle filling, high pressure leak detection, pipeline cleaning, electronic components , oil exploitation and other occasions that require high gas source.
