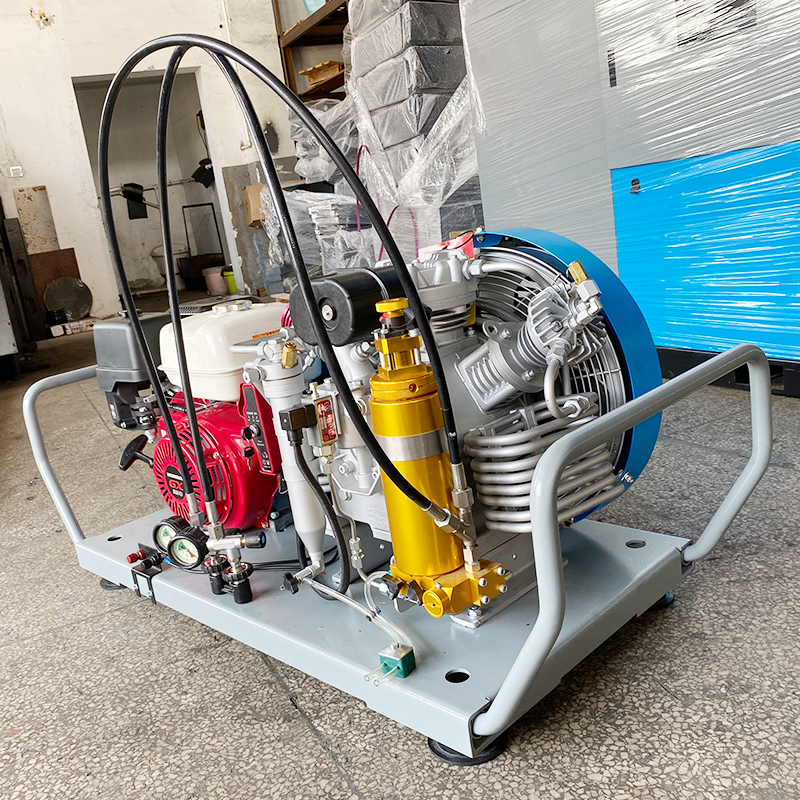

300bar High Pressure Air Compressor GDR-265P for Diving/firefighting Breathing

High-pressure breathing air compressors are widely used in diving breathing, fire fighting, paintball shooting, mountaineering, aquaculture and other industries.

  • Working Pressure:225~330[ bar ]3263~4785[ psig ]
  • Free Air Delivery:3.5~14[ cfm ]0.1~0.4[ m3/min ]
  • Working Power:2.2~9.7[ kw ]3~14[ hp ]

Product Details

Product advantages

1. High efficiency and high reliability

This type of compressor usually adopts three-cylinder three-stage compression, with high efficiency and high reliability, and can quickly provide clean high-pressure air for human breathing.

2. Compliance with international standards

The high-pressure air generated can be directly supplied to the human body for breathing, and complies with EU EN12021, German DIN3188 and US CGAE standards.

3. High working pressure

The high-pressure breathing air pump can provide high-pressure air, usually with a working pressure of 200bar to 330bar, to meet the requirements of various fire-fighting equipment.

4. Low noise

The noise of some models of compressors is controlled below 65dB, providing a quieter working environment.

5. Air purification system

Some compressors are equipped with a triple breathing air purification system, including oil-water separator, activated carbon, molecular sieve, etc., to ensure that the air provided is clean and odorless.

6. Durability

The design is reliable and durable, simple to maintain, and energy-efficient. All products are strictly tested before leaving the factory.


Technical Parameters

ModelFlow
(L/min/cfm)
Pressure
(Bar)
Power
(Hp)
(V/HZ/PH)Speed
(Rpm)
Compression
stage
Oil amount
(L)
Operating
Temp (°C)
Dimension
L*W*H(mm)
Weight
(Kg)
GDR-200E200/7225/3505.5220-440V 50/60HZ 3PH125032.85~ +451160*590*570116
GDR-200P200/7225/3508Honda Gasoline Engine125032.85~ +451180*590*570109
GDR-265E265/9225/35010220-440V 50/60HZ 3PH145032.85~ +451160*590*570124
GDR-265P265/9225/35012Honda Gasoline Engine145032.85~ +451180*590*570115
GDR-320E320/11225/35010220-440V 50/60HZ 3PH195042.85~ +451300*640*740138
GDR-320P320/11225/35013Honda Gasoline Engine195042.85~ +451300*640*850154
GDR-400E400/14225/35010220-440V 50/60HZ 3PH285042.85~ +451450*640*740160
GDR-400P400/14225/35013Honda Gasoline Engine285042.85~ +451450*640*850178
