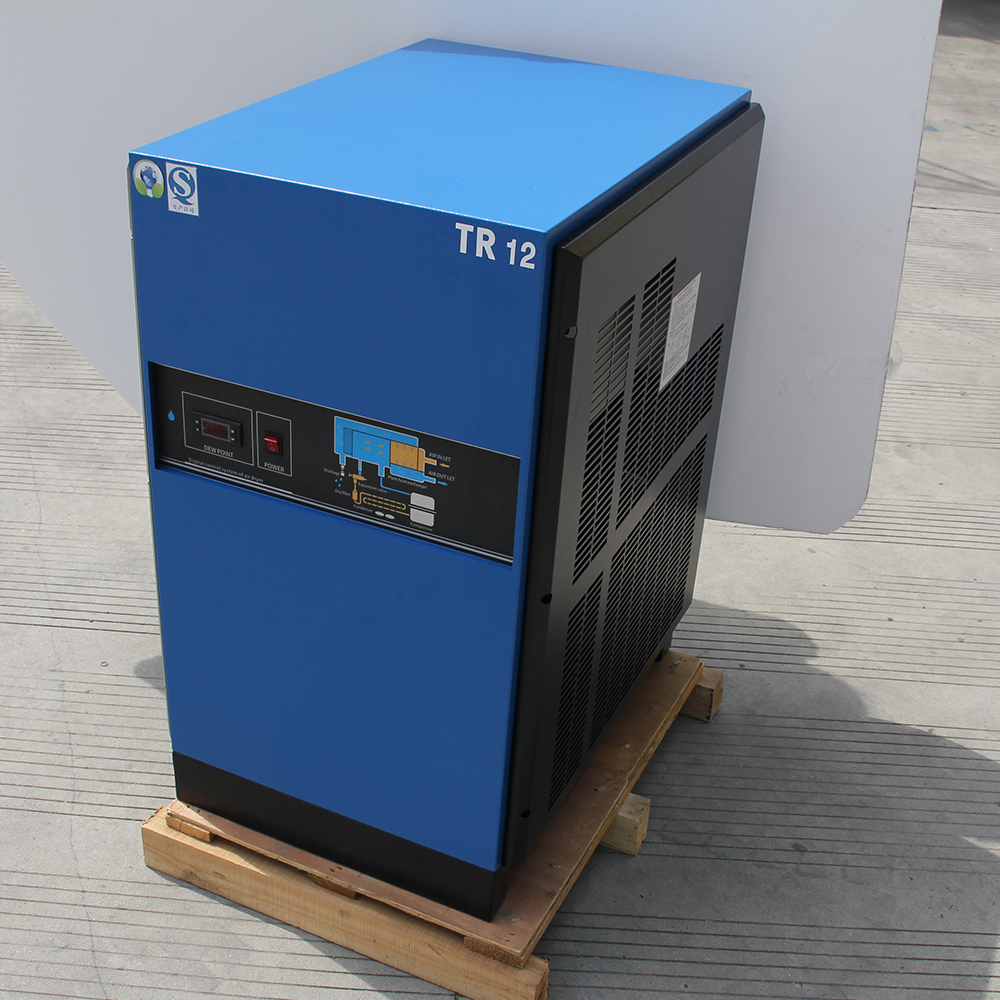

220V 60HZ Industrial Refrigerated Air Dryer TR12 Marine Refrigerated Dryer

An air compressor dryer (refrigerated dryer) is a device used to remove water and moisture from compressed air.

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details



Product feature


Energy saving.

Aluminum alloy three-in-one heat exchanger design, under the same processing capacity, the total input

power is reduced by 15-50%.

High efficiency.

Guide fins are added to the integrated heat exchanger to make the compressed air uniform inside.

Intelligent.

Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, self-diagnosis

function, automatic protection of equipment.

Environmental protection.

The whole series uses R134A & R410A as refrigerant, meets european standard, true eco-friendly.

Stable.

Standard constant pressure expansion valve, intelligent temperature control, stable operation even when the

intake air temperature reaches 65°C and the ambient temperature reaches 55°C.

Technical Parameters

TR series Environmental Protection Refrigerant Air Dryer
Model
TR01TR02TR03TR06TR08TR10TR12
Capacitym3/min1.22.43.66.58.510.513
Power supply
220V 1PH 50HZ/60HZ
Input powerkW0.370.520.7351.261.872.432.63
Air pipe connection
RC3/4"RC1"RC1-1/2"RC2"
Evaporator type
Aluminum alloy plate
Refrigerant model
R134aR410a
Display Anti-freezing protection
LED dew point display, LED alarm code display, operation status indication Constant pressure expansion valve & compressor
automatic start /stop
Temperature control
Automatic control of condensing temperature / dew point temperature
High voltage protection
Temperature sensorTemperature sensor&lnductive intelligent protection
Low voltage protection
Temperature sensor&lnductive intelligent protection
WeightKg34425063738594
DimensionL480520640700770770800

W380410520540590590610

H6657258509509909901030


ModelTR15TR20TR25TR30TR40TR50TR60TR80TR100TR120
Capacity(m3/min)1723273342556585110130
Power supply380V 3PH 50HZ/60HZ
Input power(kW)3.74.95.86.189.210.11218.722.8
Air pipe connectionDN50DN65DN80DN80DN100DN100DN100DN125DN150DN150
Evaporator typeAluminum alloy plate
Refrigerant modelR407C
DisplayLED dew point display, LED alarm code display, operation status indication
Anti-freezing protectionConstant pressure expansion valve & compressor automatic start /stop
Temperature controlAutomatic control of condensing temperature / dew point temperature
High voltage protectionTemperature sensor&lnductive intelligent protection
Low voltage protectionTemperature sensor&lnductive intelligent protection
Weight(Kg)18021035042055068078092010601200
Dimension(L*W*H)1000120012001450145016001650185022802100

8509009501000110012001200135018001900

1143120312731523168317001700185019602000
