10m3/min air compressor Condensate Oil-Water Separator ROWS 10

Air compressor condensate oil-water separator is a device used to treat oily condensate generated in the air compressor system.

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:10~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

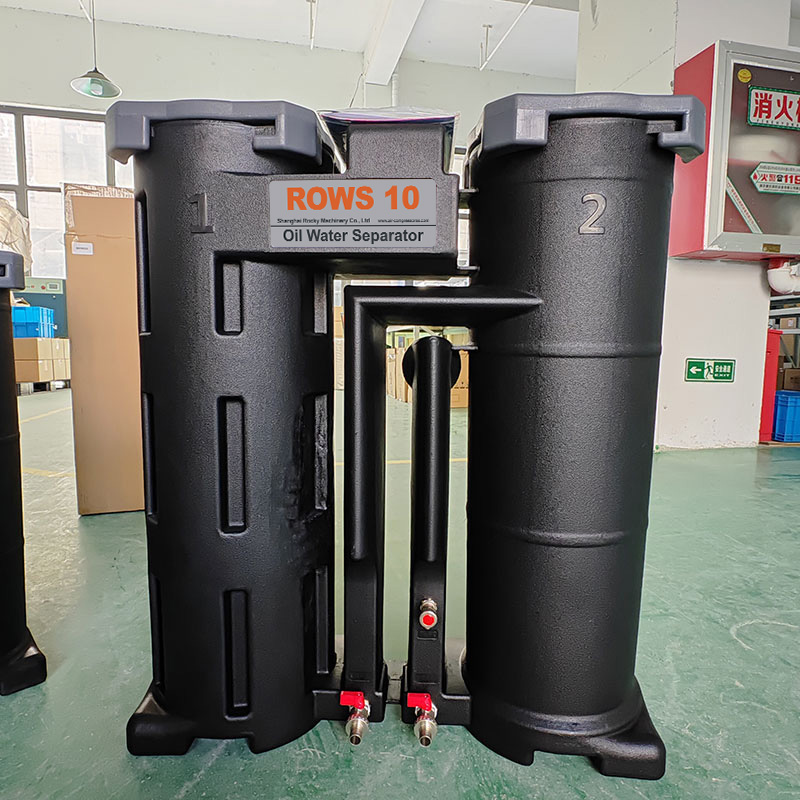

ROWS 10.jpg

Produte featue

1. Compact integrated structure design.

2. Filter life indicator rod, intuitively display filter oil absorption status.

3. No need for complex specification selection table.

4. Overflow indicator rod, display blockage status.

5. Can separate various air compressor lubricating oils.

6. Sampling valve, test bottle, detect oil residual ppm value.

7. Simple installation, ready to use PE shell, strong and corrosion-resistant.

8. Easy to replace the filter element and easy to maintain.

Technical Parameters

ROWS Condensate water oil separator
Product modelROWS  5ROWS 10ROWS  20ROWS 30ROWS 60
Max. compressor capacity（(based on a 8h. shift)）5 m3/min10 m3/min20 m3/min30 m3/min60 m3/min
Max. oil absorption5 L10 L15 L25 L50 L
Inlet2 * G1/2''2 * G1/2''2 * G1/2''2 * G1/2''2 * G1/2''
OutletG 1''G 1''G 1''G 1''G 1''
Test valveYesYesYesYesYes
Sample bottleYesYesYesYesYes
Service drainYesYesYesYesYes
Element life




indicatorYesYesYesYesYes
Overflow indicatorYesYesYesYesYes
Target output value<10 PPM<10 PPM<10 PPM<10 PPM<10 PPM
Housing materialPEPEPEPE PE
Dimensions（L* W*H）550 * 190 * 610650 * 240 * 750780 * 305 * 900970 * 380 * 9001150 * 470 *1045
Weight(kg)11.522 32 42 80
