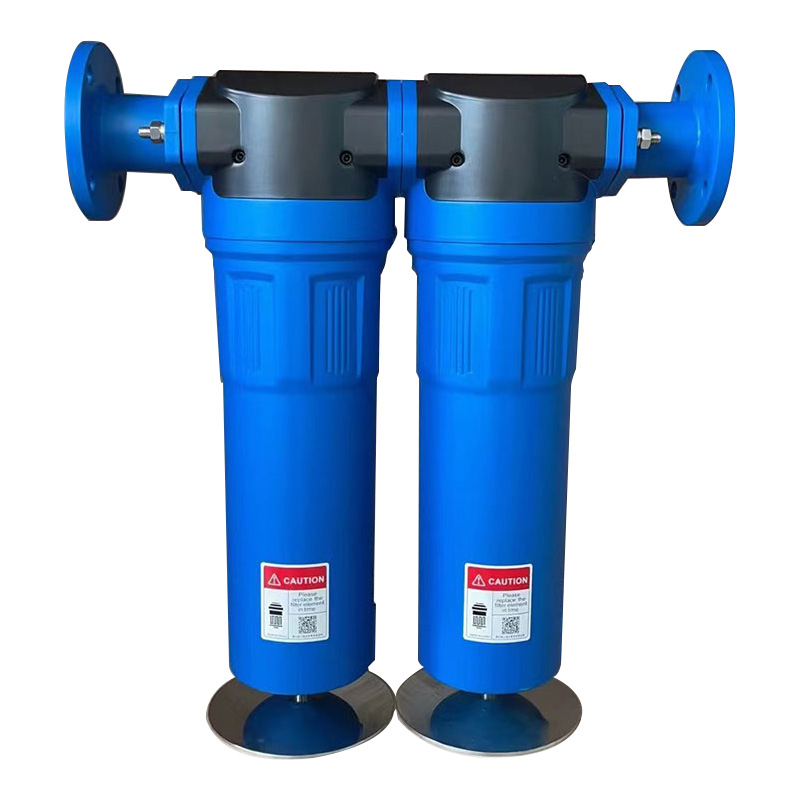

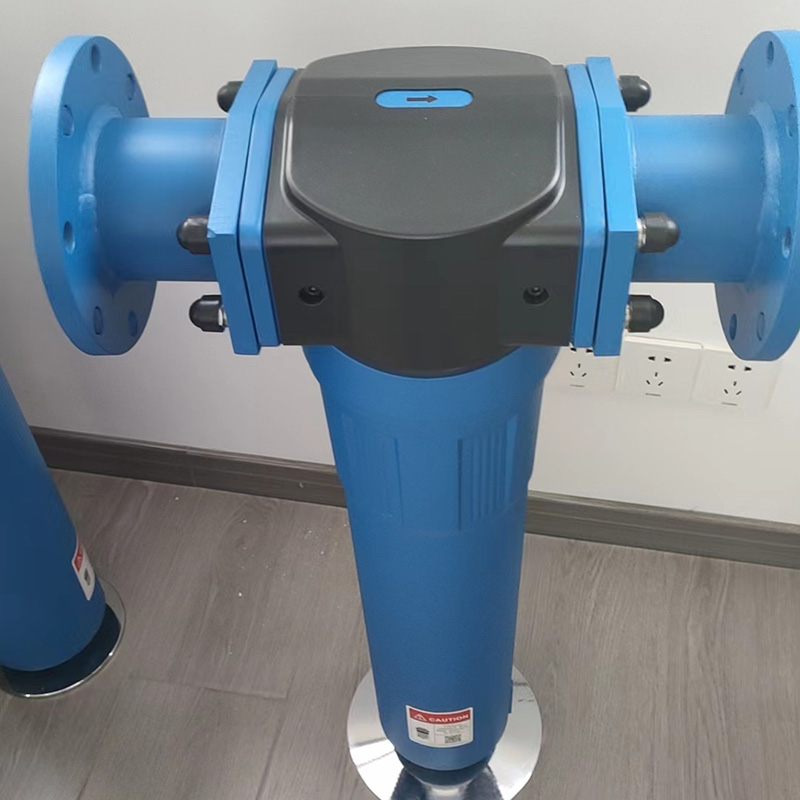

25Nm3/min Compressed Air Flange Precision Air Filter FRJX-250*

A precision filter is a filtering device used to remove tiny particles of impurities from fluids (liquids or gases).

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

铝合金过滤器 (25).jpg

Product feature

1. High filtration accuracy: It can effectively remove tiny particles, and the filtration accuracy can reach 0.1 micron.

2. Stable filtration performance: Under certain pressure and flow, the filtration effect is stable.

3. A variety of filter media are available: Different filter media can be selected according to different filtration needs.

4. Easy to maintain and replace: The filter element is usually designed to be replaceable and easy to maintain.

5. Wide range of applications: It can be used for filtration of liquids and gases.

Technical Parameters

Filter

model

Air Flow

m3/min

Interface C

Model of

filter element

RJ-010*1.2

1/2"or 3/4"

 or 1"

FJ-010*
RJ-020*2.3

1/2"or 3/4

"or 1"

FJ-020*
RJ-030*3.5 1" or 1-1/2"FJ-030*
RJ-050*5.7 1-1/2"FJ-050*
RJ-070*7.8 1-1/2"FJ-070*
RJ-110*11.6 2"FJ-110*
RJ-150*15.5 2"FJ-150*
RJX-200*20 2-1/2"FJX-200*
RJX-250*25 2-1/2"FJX-250*
RJX-300*30.8 3"FJX-300*
RJX-400*40.5 4"FJX-400*
FRJX-200*20 DN65FJX-200*
FRJX-250*25 DN65FJX-250*
FRJX-300*30.8 DN80FJX-300*
FRJX-400*40.5 DN100FJX-400*
