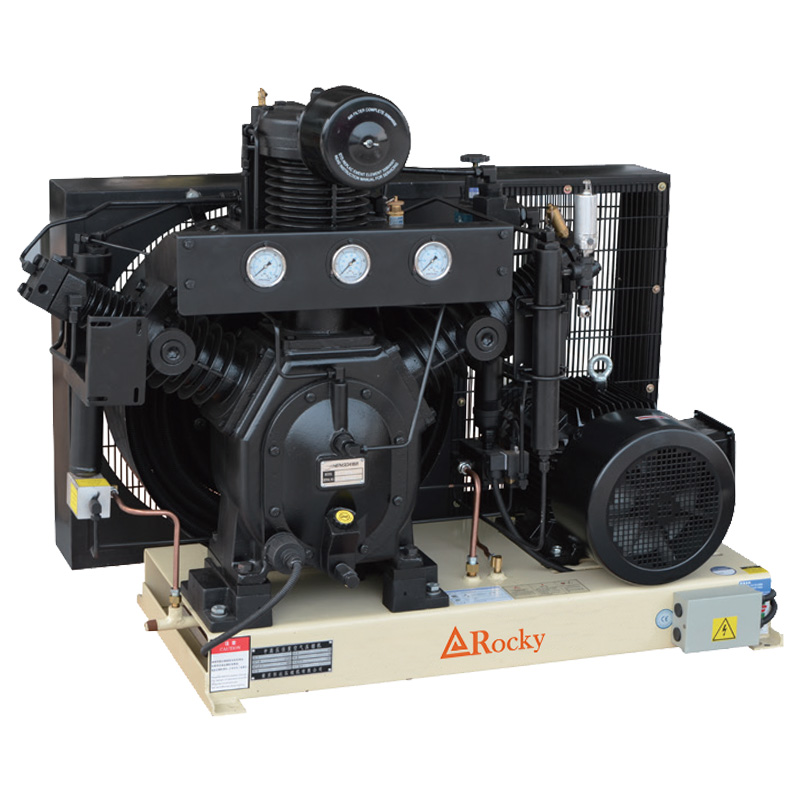

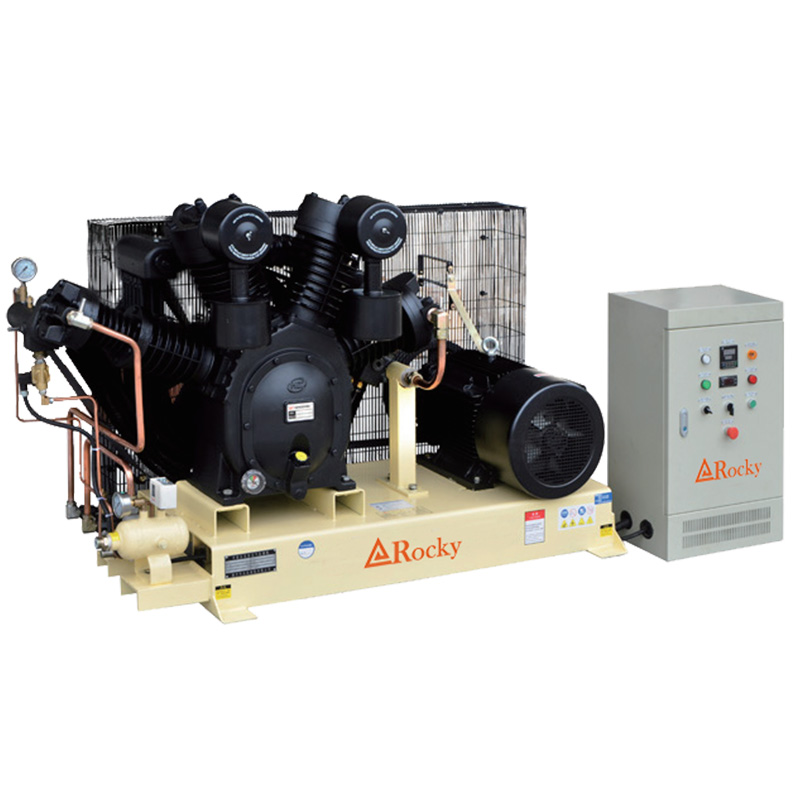

30 bar High Pressure Piston Compressor for PET Bottle Blowing

In the bottle blowing industry, medium-pressure compressed air of 40 Bar (4.0 MPa) is mainly used in the PET bottle blow molding process.

  • Working Pressure:30~420[ bar ]435~6090[ psig ]
  • Free Air Delivery:5.3~212[ cfm ]0.15~6[ m3/min ]
  • Working Power:7.5~30[ kw ]10~40[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

中压机 (19).jpg

Product Features

  1. Air-cooling, low rotation speed, durable.

  2. High-efficiency valve assembly.

  3. 3. Integrated crankcase.

  4. High-quality imported bearings.

  5. Compact, large-area intercooling and aftercooling.

Technical Parameters

Model
Air delivery
(m³/min)
Working
Pressure
(MPa)
Motor
Power
(kW)		Speed
(rpm)		Dimension (mm)

Weight

(kg）

RKV-0.7/300.7 3.0 7.5 680 1360X630X780310
RKV-0.7/30(T)0.7 3.0 7.5 680 1830X625X970410
RKW-1.0/301.0 3.0 11 620 1560X840X1140430
RKW-1.2/301.2 3.0 15 760 1560X840X1140450
RKW-1.0/30(T)1.0 3.0 11 620 2115X795X1135530
RKW-1.2/30(T)1.2 3.0 15 760 2115X795X1135550
RKW-2.0/302.0 3.0 2x11620 1930X1610X11001050
RKW-2.4/302.4 3.0 2x15760 1930X1610X11001090
RKW-1.6/301.6 3.0 18.5 790 1600X960X1230520
RKW-3.2/303.2 3.0 2x18.5790 2100X1700X13201200
RKW-2.0/302.0 3.0 22 735 2000X1010X1260490
RKW-4.0/304.0 3.0 2x22735 2260X1650X12401170
