40 bar Medium Pressure Air Compressor for Blowing Bottle Industry

In the bottle blowing industry, medium-pressure compressed air of 40 Bar (4.0 MPa) is mainly used in the PET bottle blow molding process.

  • Working Pressure:30~420[ bar ]435~6090[ psig ]
  • Free Air Delivery:5.3~212[ cfm ]0.15~6[ m3/min ]
  • Working Power:7.5~30[ kw ]10~40[ hp ]

Product Details

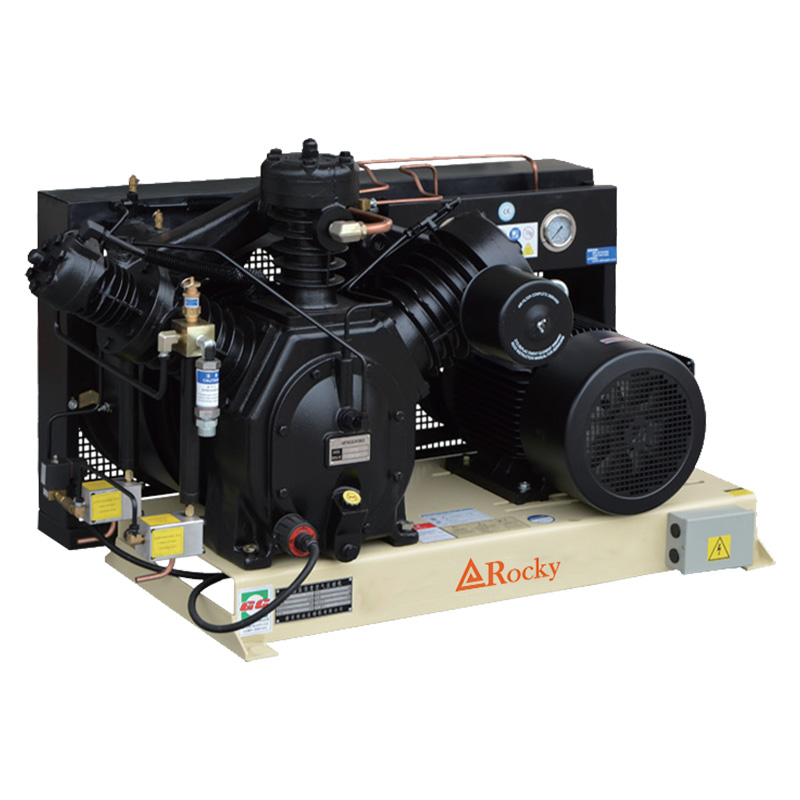

中压机 (19).jpg

Product Features

1. Air-cooling, low rotation speed, heavy-duty, energy-saving, durable.

2. Material of valve plate all made of stainless steel.

3. Multiple protection measures.

4. When starting up, the solenoid valve is fully open and automatically drains and relive to ensure  zero-pressure start.

5. Equipment is safe and reliable, long maintenance intervals.

Technical Parameters

ModelAir delivery
(m3/min)
Working

Pressure

(MPa)

Motor
Power
 (kW)
Speed
(rpm)
Dimension (mm)

Weight

(kg)

RKW-1.0/401.0 4.0 15 790 1420×840×840470
RKS-2.0/402.0 4.0 22 695 1800×850×1110660
RKS-4.0/404.0 4.0 2×22695 3650×850×11101800
RKS-3.0/403.0 4.0 30 690 2020×935×1100920
RKS-6.0/40(V)6.0 4.0 2×306902200×1120×22501905
