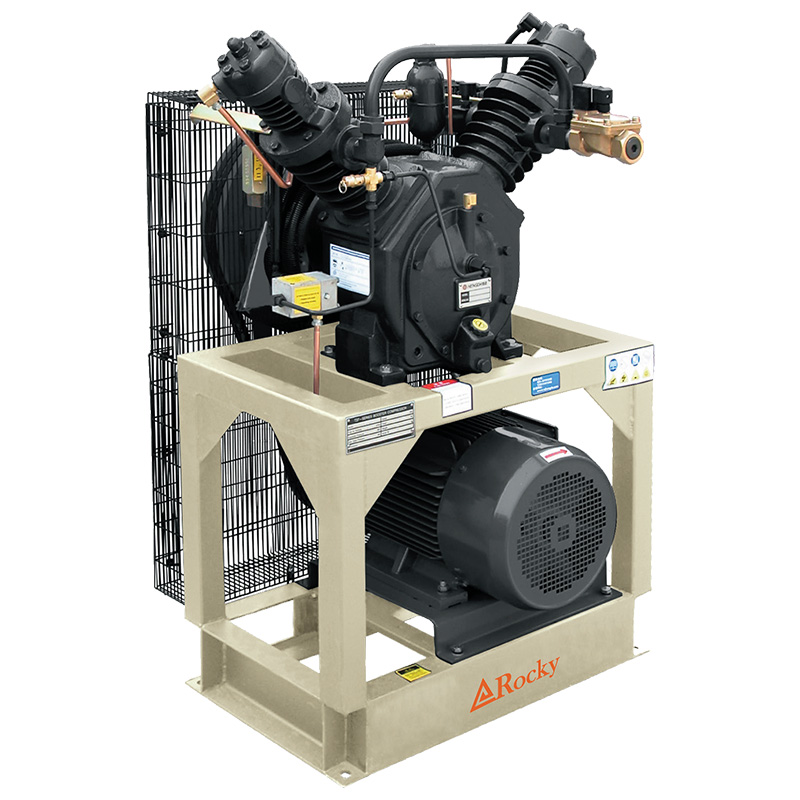

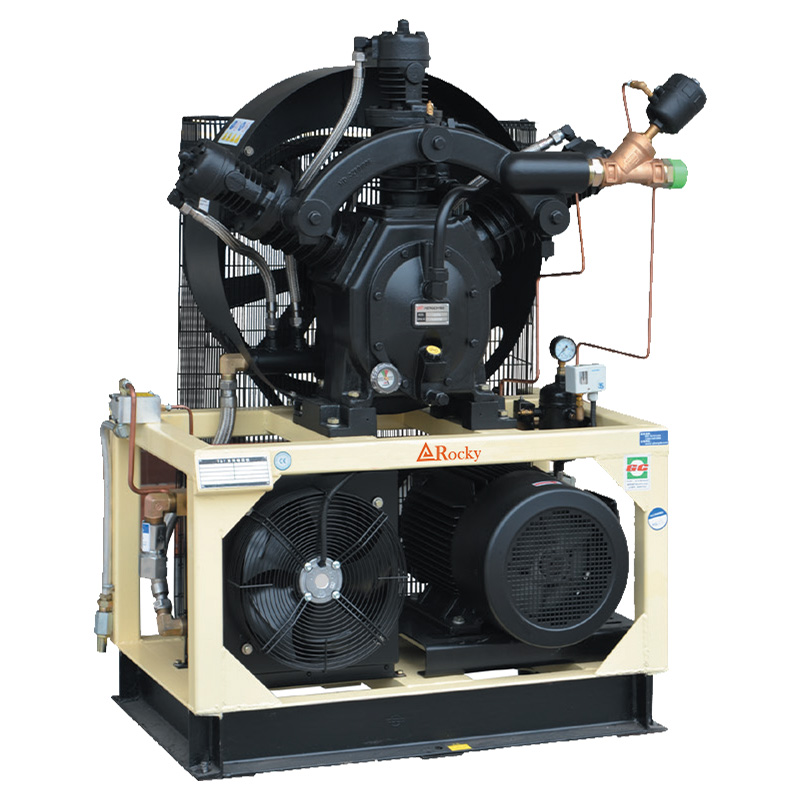

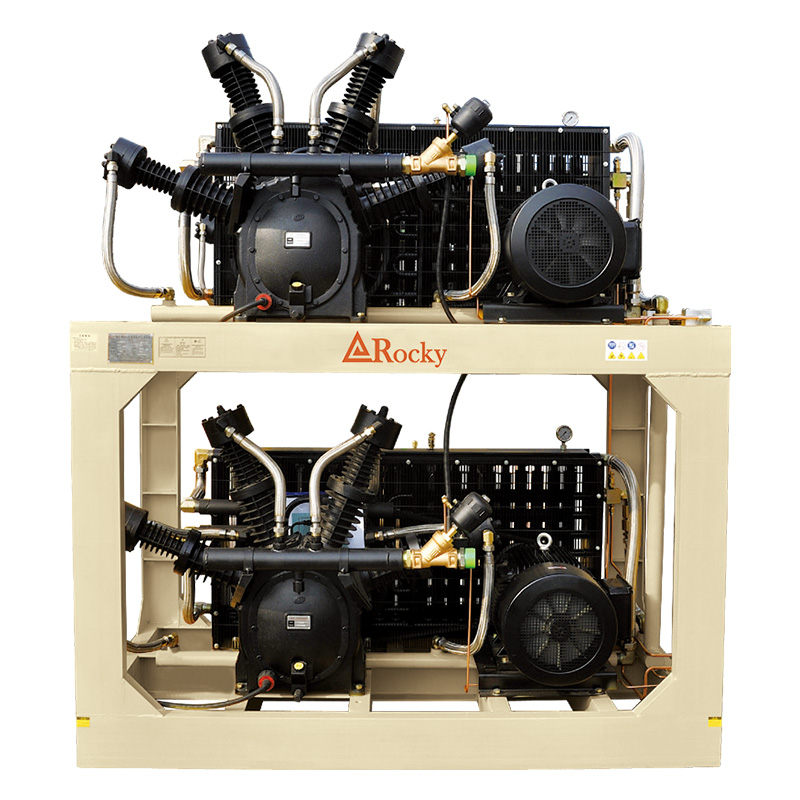

Industrial Electric Oil Free High Pressure Reciprocating Booster Air Compressor

Oil-free booster is a device that does not require any lubricating oil during the compression process.

  • Working Pressure:8~40[ bar ]116~580[ psig ]
  • Free Air Delivery:176.5~529.5[ cfm ]5~15[ m3/min ]
  • Working Power:22~55[ kw ]30~75[ hp ]

Product Details

增压机 (4).jpg

Product Features

1. Oil-free lubrication design: special materials and designs are used, and the internal parts are in direct contact with each other, without lubricating oil.

2. High efficiency and energy saving: energy loss is reduced and compression efficiency is improved.

3. Low noise operation: air suspension bearing and other technologies are used, and the noise is low during operation.

4. Easy maintenance: no need to replace lubricating oil and filter element, reducing maintenance costs.

5. Long service life: less wear on parts and longer service life of the machine.


Technical Parameters

ModelFree Air delivery
(m³/min)
Intake pressure
(bar)
Discharge Pressure
( bar)
Motor
power
(kW)
Speed
(rpm)
Dimension (mm)Weight(kg)
RKBZW-5/10-4010 4022 680 2300*1580*19201600
RKBVW-10/10-4010 10 40 45 690 2750*1580*16002000
RKBVW-12/8-4012 40 45 690 2750*1580*16002000
RKBWW-15/10-4015 10 40 55 690 2750*1580*19502250
