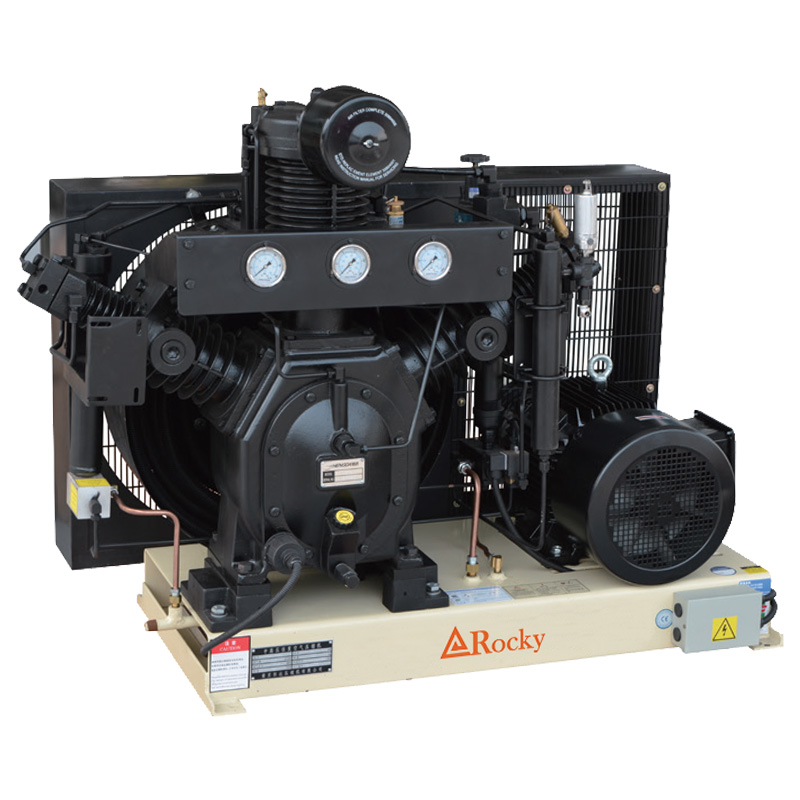

30 bar high pressure piston compressor for blowing PET bottles replaces WP100L

Medium and high pressure air compressors refer to equipment that can compress air to medium or high pressure.

  • Working Pressure:30~420[ bar ]435~6090[ psig ]
  • Free Air Delivery:35.5~1059[ cfm ]1~30[ m3/min ]
  • Working Power:11~200[ kw ]15~267[ hp ]

Product Details

中压机 (18).jpg

Product Features

1. Air-cooling, low rotation speed, durable.

2. High-efficiency valve assembly.

3. Integrated crankcase.

4. High-quality imported bearings.

5. Compact, large-area intercooling and aftercooling.


Technical Parameters

ModelAir delivery
(m³/min)
Working
Pressure
(bar)
Motor
Power
(kW)
  Speed
(rpm)
Dimensions (mm)Weight(kg)
RKA-1.0/301.0 30 11 620 1560*840*1140430
RKA-1.0/30(T)1.0 30 11 620 2115*795*1135530
RKA-1.2/301.2 30 15 760 1560*840*1140450
RKA-1.2/30(T)1.2 30 15 760 2115*795*1135550
RKA-1.6/301.6 30 18.5 790 1600*960*1230520
RKA-1.6/30(T)1.6 30 18.5 790 2150*900*1230620
RKA-2.0/302.0 30 22 735 2000*1010*1260550
RKA-2.4/302.4 30 2x15760 1930*1610*1100900
RKA-3.2/303.2 30 2x18.5790 2100*1700*13201150
RKA-4.0/304.0 30 2x22735 2260*1650*12401200
