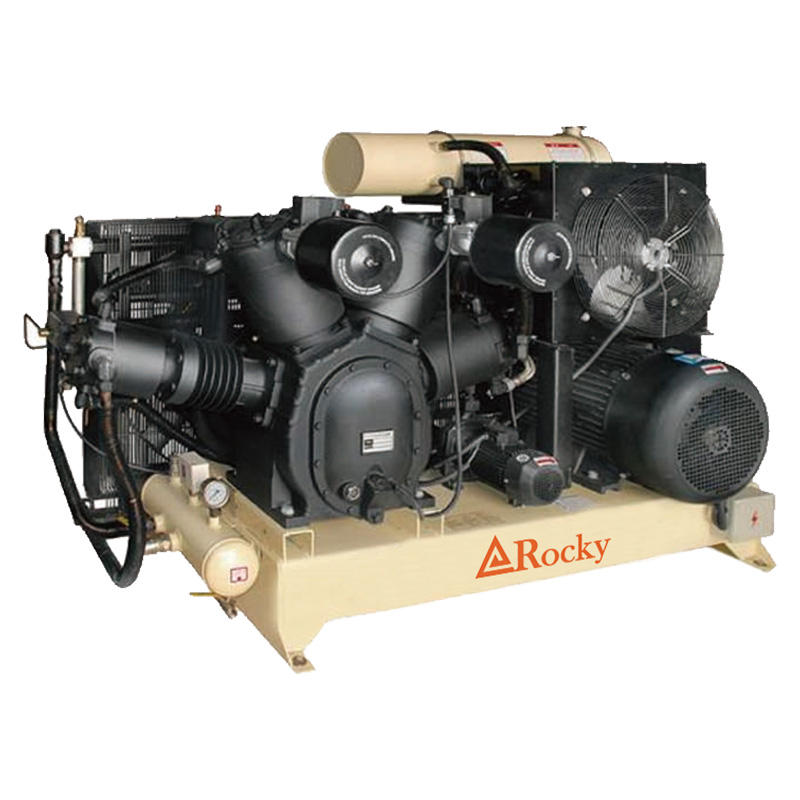

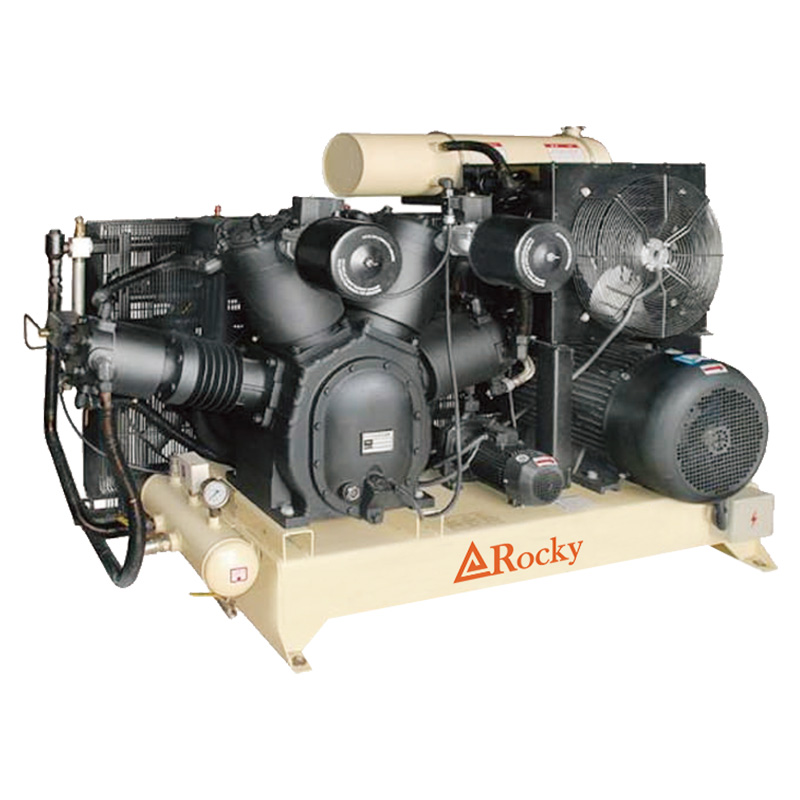

30 Bar high pressure water-cooled air compressor for chemical industry

Medium and high pressure air compressors refer to equipment that can compress air to medium or high pressure.

  • Working Pressure:40 [ bar ]580 [ psig ]
  • Free Air Delivery:35.3~141.2[ cfm ]1~4[ m3/min ]
  • Working Power:11~44[ kw ]15~60[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

中压机 (18).jpg

Product Features

1.High efficiency water cooling system, adaptable for diferent environment, ensure the operationwithout any problem.

2. Flexible and convenient combination of multiple compressor units can meet the different needsof users.

3. High efficiency intercooler and aftercooler, unique water-cooling system design, ensure thecompressor unit 24/7 running without break and overheat.

Technical Parameters

ModelCapacity (m3/min)Working pressure
(Bar)		Power (kW)Compression Speed
(rpm)		Cooling
method		Dismensions(mm)Weight
(kg)
RKW-1.0/301.0 30112730Water Cooling1500*820*1000430
RKW-1.3/301.3 30152730Water Cooling1500*820*1000460
RKW2-2.0/302.0 302*112730Water Cooling1900*1500*11001030
RKW-2.0/302.0 30222670Water Cooling1650*870*1150750
RKW2-2.6/302.6 302*152730Water Cooling1900*1500*11001090
RKW2-4.0/304.0 302*222670Water Cooling2000*1650*12501550
RKSW-2.0/302.0 30223660Water Cooling2000*900*1150850
RKSW-2.0/402.0 40223660Water Cooling2000*900*1150850
RKSW2-4.0/304.0 302*223660Water Cooling2100*2000*12501750
RKSW2-4.0/404.0 402*223660Water Cooling2100*2000*12501750
