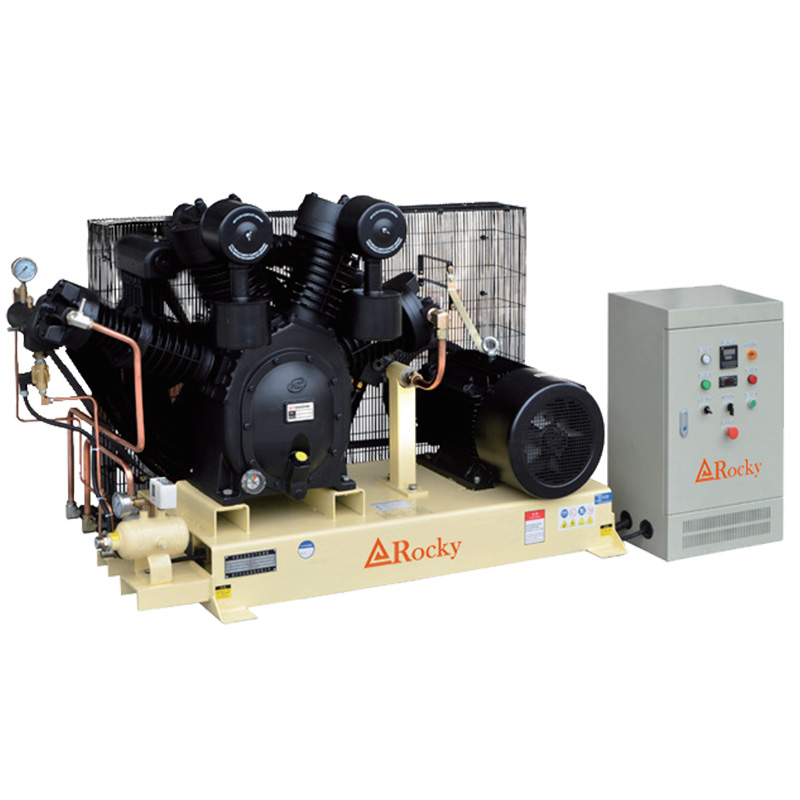

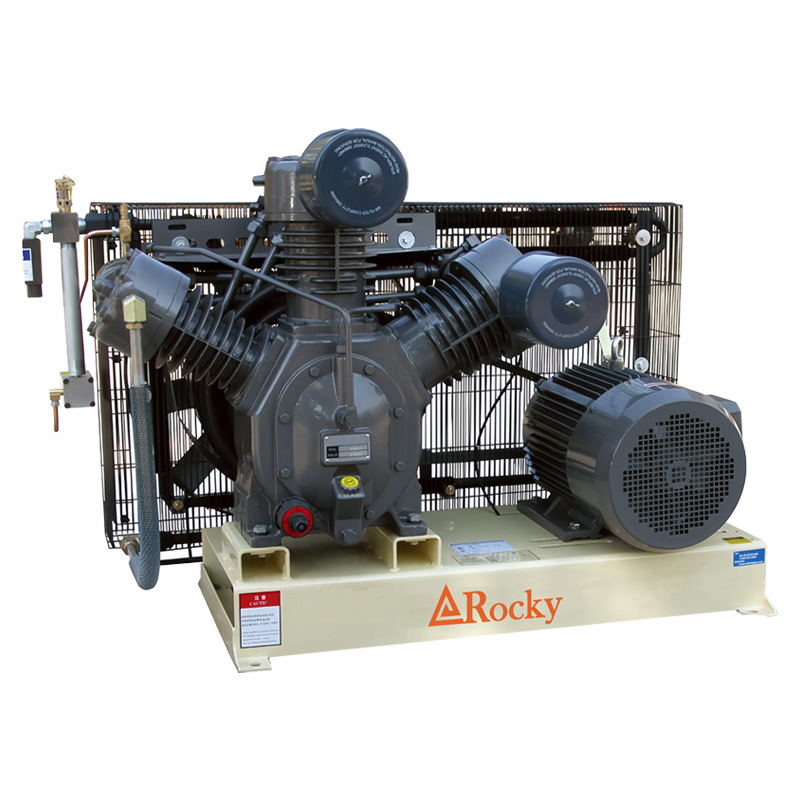

Piston Air Compressor 40 Bar High Pressure Oil Free Booster Air Compressor

An air booster is a device that can increase the pressure of low-pressure air or gas to medium or high pressure.

  • Working Pressure:10~40[ bar ]145~580[ psig ]
  • Free Air Delivery:176.5~530[ cfm ]5~15[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

中压机 (18).jpg

Product features
1.Energy-saving and high efficiency: Compared with electric booster pumps, pneumatic air booster pumps only need to provide a driving air source, do not consume electricity when working, and automatically stop working when the preset pressure is reached, with low energy consumption.
2. Low operating noise: Compared with ordinary high-pressure compression air compressors, it has low vibration and noise, and is suitable for more occasions.
3. High cost performance: The price is relatively low, and the maintenance cost is also low.
4. Flexible application: There are various models, which can be selected according to the actual required boost ratio and flow rate, and constant pressure air supply can be achieved.
5. Small size and light weight: easy to carry and install.


Technical Parameters

Model

Intake

pressure

(bar)
Discharge Pressure
(bar)

Free Air

delivery

(m³/min)


Motor
power
(kW)
Speed
(rpm)
Dimensions (mm)Weight(kg)
RKBW-5/10-4010.0 40.0 22 6802300*1580*19201600
RKBW-10/10-4010.0 40.0 10 45 6902750*1580*16002000
RKBW-12/8-4010.0 40.0 12 45 6902750*1580*16002000
RKBW-15/10-4010.0 40.0 15 55 6902750*1580*19502250
