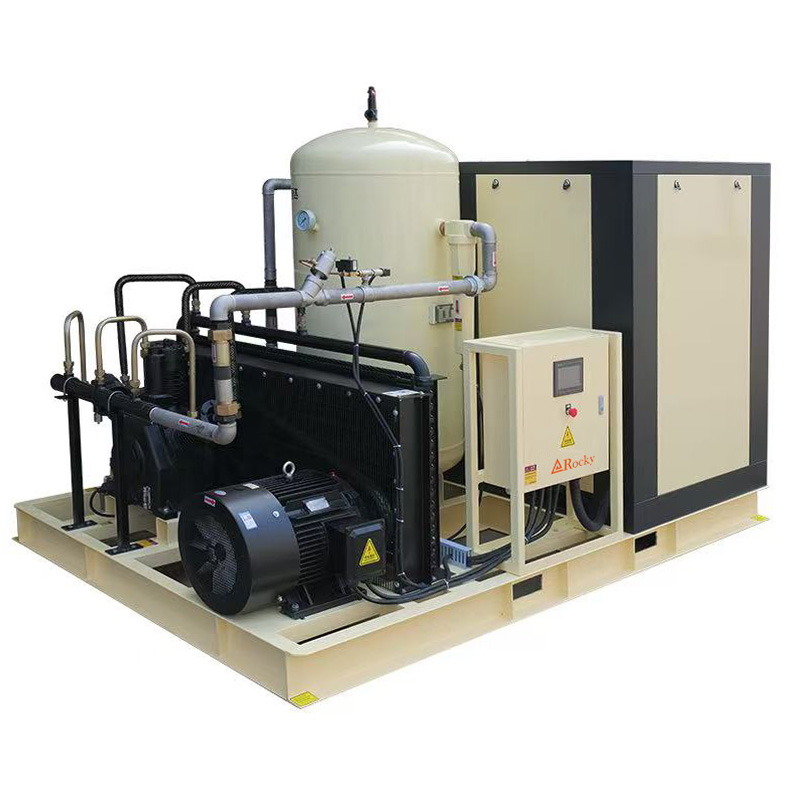

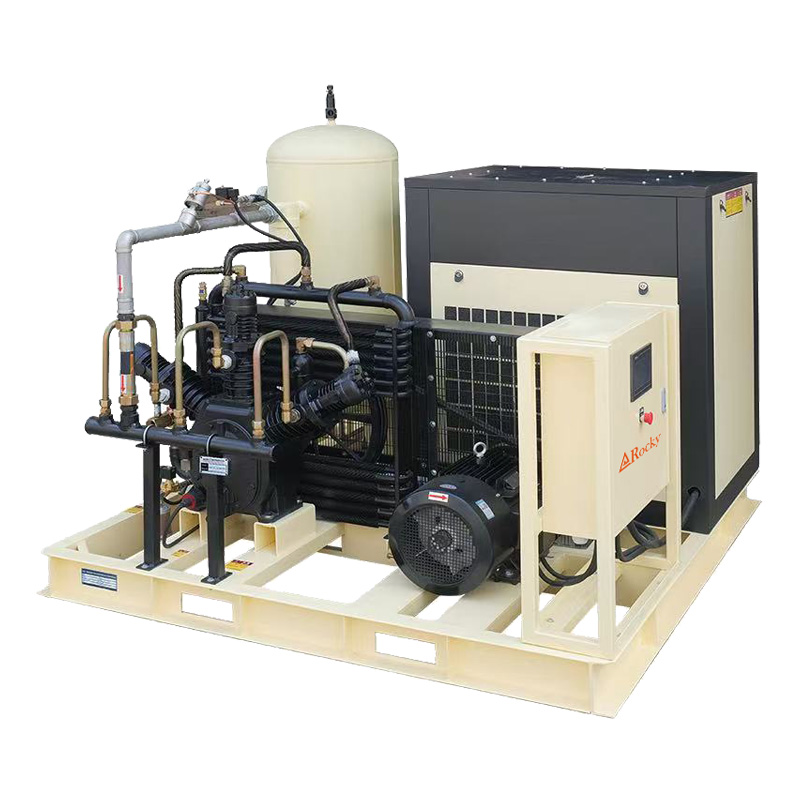

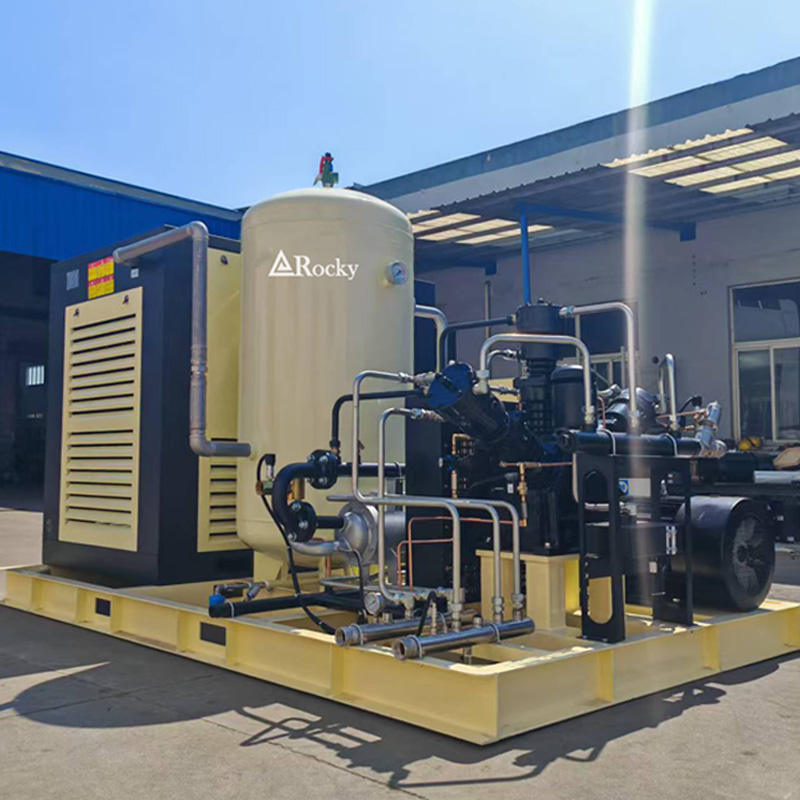

Industrial Air Cooling 40 Bar Screw and Booster Integrated Air Compressor

The 40 bar screw supercharger is a device that can compress air or other gases to a pressure of 40 bar. It integrates the screw compressor, supercharger, motor and other components into a compact whol

  • Working Pressure:40 [ bar ]580[ psig ]
  • Free Air Delivery:141.2~423.6[ cfm ]4~12[ m3/min ]
  • Working Power:30~90[ kw ]40~125[ hp ]

Product Details

螺杆增压一体机 (1).jpg

Features

1. High efficiency and energy saving: It adopts advanced screw compression technology and permanent magnet synchronous motor, with high compression efficiency and low energy consumption.

2. Compact structure: Integrating multiple components together reduces the footprint of the equipment and facilitates installation and maintenance.

3. Stable operation: The equipment adopts high-quality materials and advanced manufacturing processes to ensure the stability and reliability of operation.

4. Low noise: The design focuses on reducing noise and vibration to provide a quieter working environment.

5. Strong adaptability: It can adapt to different working environments and conditions, including harsh environments such as high temperature and high humidity.

Technical Parameters

Model Inlet Pressure
   (bar)
Discharge Pressure
(bar)

Free Air

delivery

(m³/min)
Compressor power(kW)Booster
power
(kW)
Dimensions (mm)Weight(kg)
RKBC-4/4010 40 30 19 2000*2000*18501380
RKBC-6/4010 40 45 22 2250*2050*21501500
RKBC-8/4010 40 55 30 3250*2060*22502300
RKBC-10/4010 40 10 75 30 3250*2050*23002700
RKBC-12/4010 40 12 90 37 3250*2050*23002800
