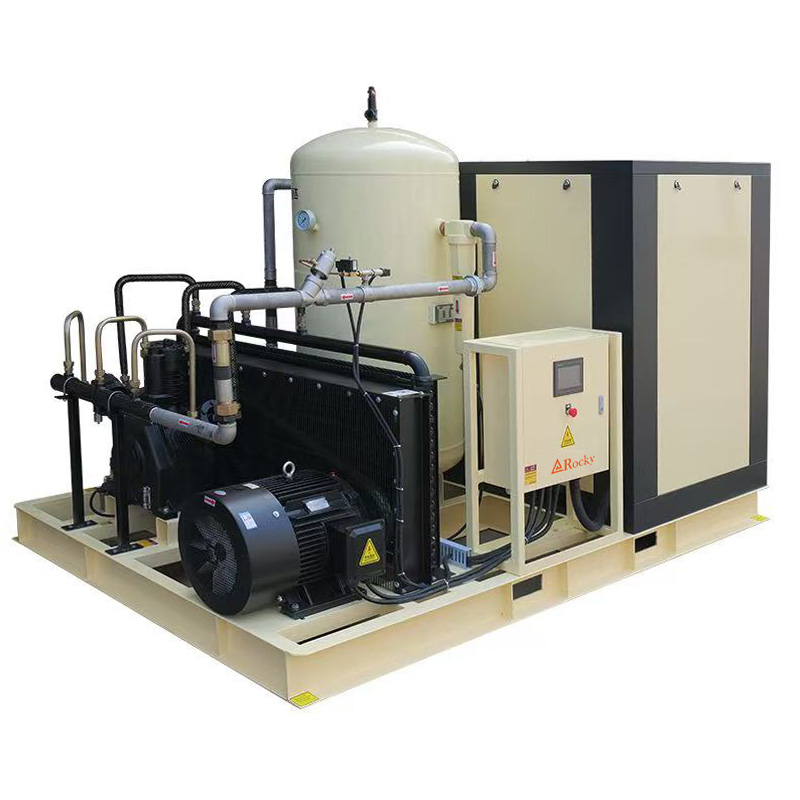

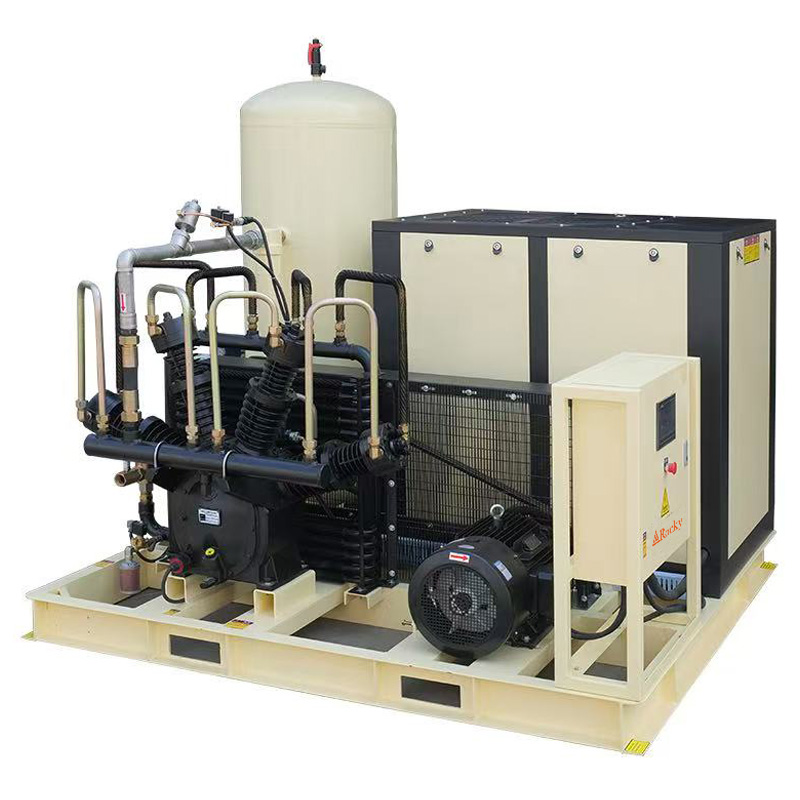

40 Bar 12m3/min High Pressure Screw Piston Booster Air Compressor for Pet Bottles

The 40 Bar screw supercharger is a high-efficiency compression device that combines a screw compressor and a supercharging system. It initially compresses the air through a screw compressor, and then

  • Working Pressure:40[ bar ]580[ psig ]
  • Free Air Delivery:141.2~423.6[ cfm ]4~12[ m3/min ]
  • Working Power:30~90[ kw ]40~125[ hp ]

Product Details

Features

1. High efficiency and energy saving: It adopts advanced screw compression technology and permanent magnet synchronous motor, with high compression efficiency and low energy consumption.

2. Compact structure: Integrating multiple components together reduces the footprint of the equipment and facilitates installation and maintenance.

3. Stable operation: The equipment adopts high-quality materials and advanced manufacturing processes to ensure the stability and reliability of operation.

4. Low noise: The design focuses on reducing noise and vibration to provide a quieter working environment.

5. Strong adaptability: It can adapt to different working environments and conditions, including harsh environments such as high temperature and high humidity.

Technical Parameters

Model

 Inlet

 Pressure

   (bar)
Discharge Pressure
(bar)

Free Air

delivery

(m³/min)

Compressor power

(kW)

Booster
power
(kW)
Dimensions (mm)Weight(kg)
RKBC-4/4010 40 30 19 2000*2000*18501380
RKBC-6/4010 40 45 22 2250*2050*21501500
RKBC-8/4010 40 55 30 3250*2060*22502300
RKBC-10/4010 40 10 75 30 3250*2050*23002700
RKBC-12/4010 40 12 90 37 3250*2050*23002800
