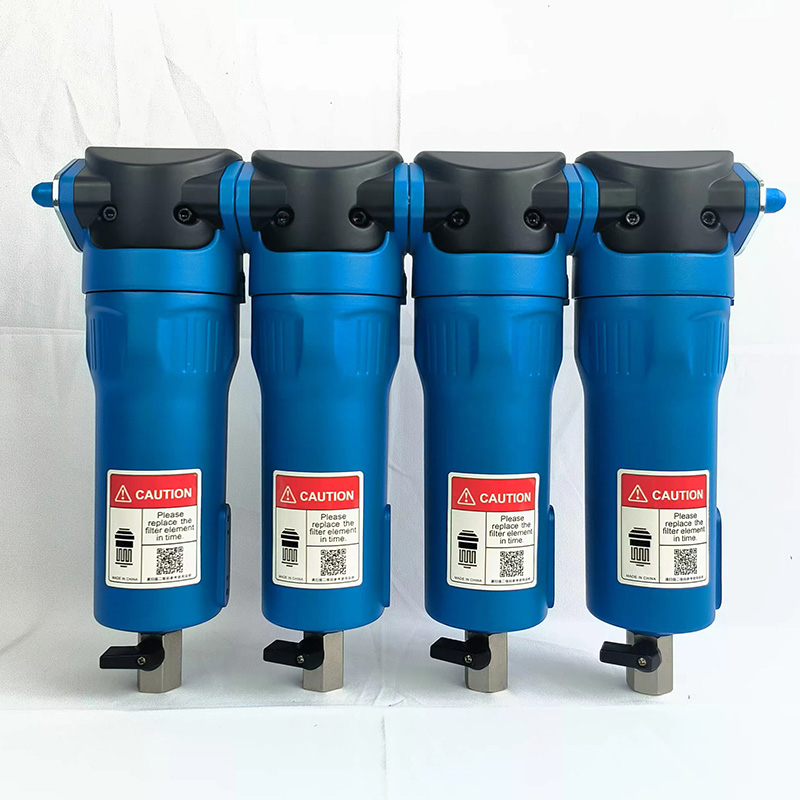

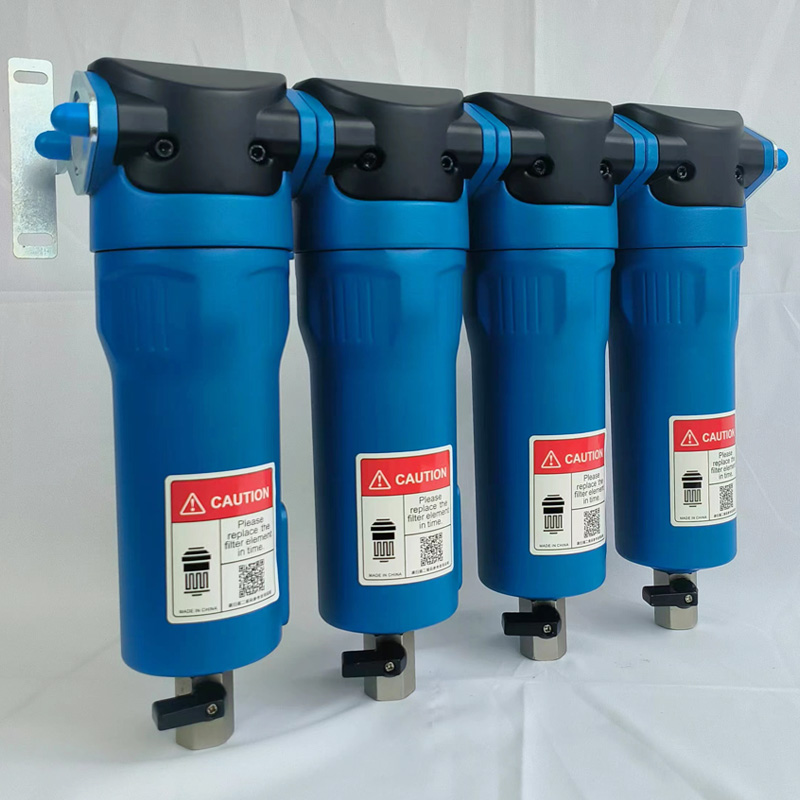

Compressed Air Filter Precision Line Filter RJX-300* for 7-16bar Compressor

RJ series precision filters provide users with high-quality compressed air filtration, dedicated to laser cutting, bottle blowing, advanced spraying, food, electronics, petrochemical and other industr

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:42~1430[ cfm ]1.2~40.5[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

铝合金过滤器 (15).jpg

Represents the filter level
Level C filtration accuracy: 3 microns, oil content: 3 ppm
Level T filtration accuracy: 1 micron, oil content: 1 ppm
Level A filtration accuracy: 0.01 micron, oil content: 0.01 ppm
Level H (activated carbon) filtration accuracy: 0.01 micron Oil content: 0.001ppm


Technical Parameters

Filter model

Flow

(m3/min)

Interface CModel of filter
element
RJ-010*1.2 1/2"or 3/4" or 1"FJ-010*
RJ-020*2.3 1/2"or 3/4" or 1"FJ-020*
RJ-030*3.5 1" or 1-1/2"FJ-030*
RJ-050*5.7 1-1/2"FJ-050*
RJ-070*7.8 1-1/2"FJ-070*
RJ-110*11.6 2"FJ-110*
RJ-150*15.5 2"FJ-150*
RJX-200*20 2-1/2"FJX-200*
RJX-250*25 2-1/2"FJX-250*
RJX-300*30.8 3"FJX-300*
RJX-400*40.5 4"FJX-400*
FRJX-200*20 DN65FJX-200*
FRJX-250*25 DN65FJX-250*
FRJX-300*30.8 DN80FJX-300*
FRJX-400*40.5 DN100FJX-400*
