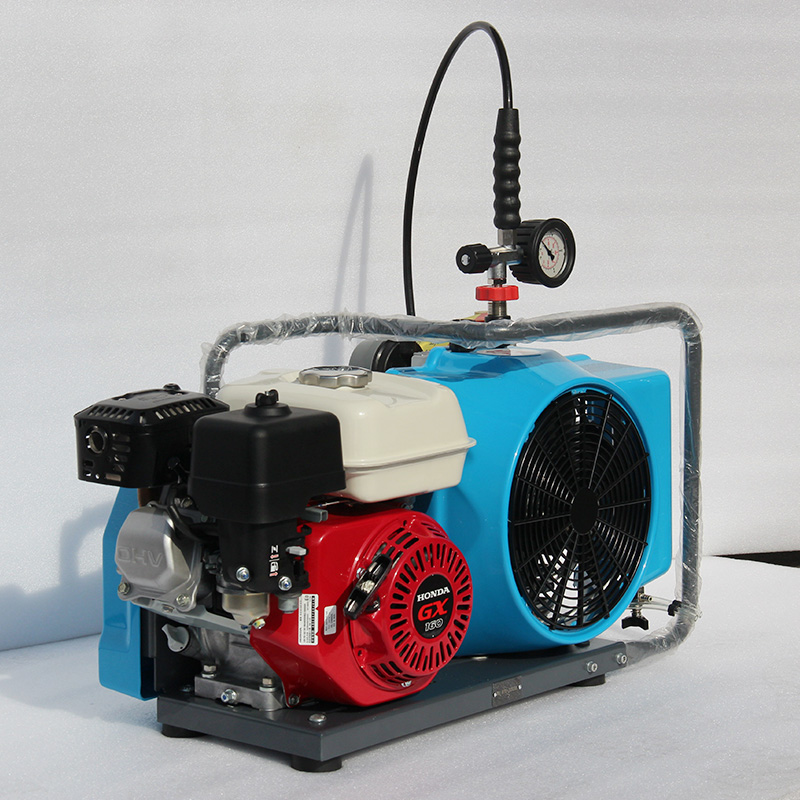

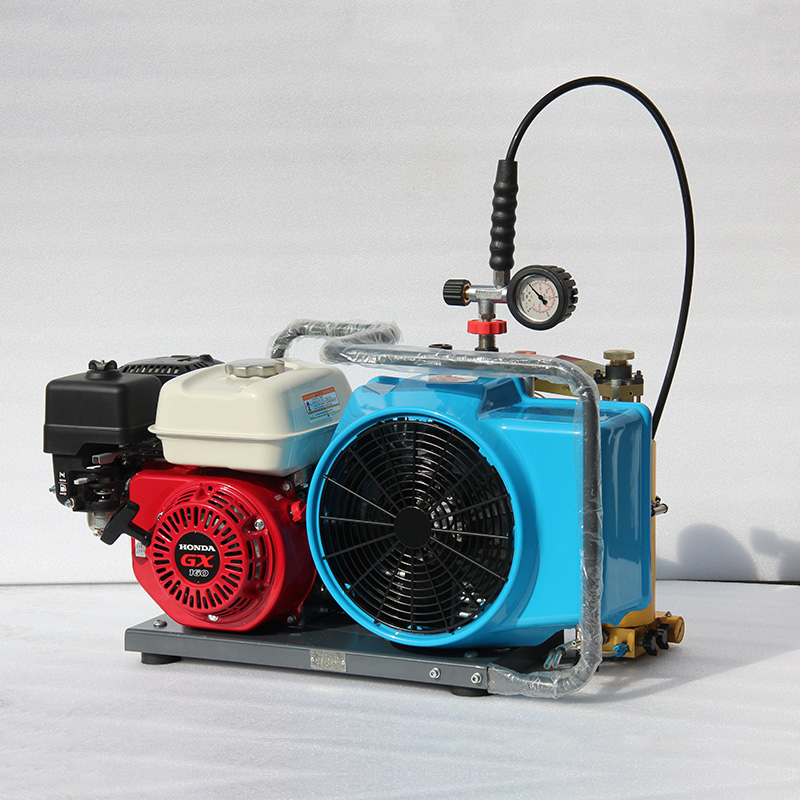

High Pressure Portable Scuba Air Compressor for Sale GDR-150P

High-pressure breathing air compressors are widely used in diving breathing, fire fighting, paintball shooting, mountaineering, aquaculture and other industries.

  • Working Pressure:225~330[ bar ]3262~4785[ psig ]
  • Free Air Delivery:3.53~14[ cfm ]0.1~0.4[ m3/min ]
  • Working Power:5.5~13[ kw ]7.5~20[ hp ]

Product Details

Product Feature

● With power cord and motor protection switch
● Button with start and stop
● The oil-water separator and filter adopt the integrated design of aluminum alloy
● Metal frame structure with plastic coating
● Final safety valve provides overpressure protection
● Stainless steel and aluminum alloy condenser tube
● Activated carbon molecular sieve filter
● Condensate drain valve

Technical Parameters

ModelFlow
(L/min/cfm)
Pressure
(Bar)
Power
(Hp)
(V/HZ/PH)Speed
(Rpm)
Compression
stage

Oil

 amount

(L)
Operating
Temp (°C)
Dimension
L*W*H(mm)
Weight
(Kg)
GDR-200E200/7225/3505.5220-440V 50/60HZ 3PH125032.85~ +451160*590*570116
GDR-200P200/7225/3508Honda Gasoline Engine125032.85~ +451180*590*570109
GDR-265E265/9225/35010220-440V 50/60HZ 3PH145032.85~ +451160*590*570124
GDR-265P265/9225/35012Honda Gasoline Engine145032.85~ +451180*590*570115
GDR-320E320/11225/35010220-440V 50/60HZ 3PH195042.85~ +451300*640*740138
GDR-320P320/11225/35013Honda Gasoline Engine195042.85~ +451300*640*850154
GDR-400E400/14225/35010220-440V 50/60HZ 3PH285042.85~ +451450*640*740160
GDR-400P400/14225/35013Honda Gasoline Engine285042.85~ +451450*640*850178
