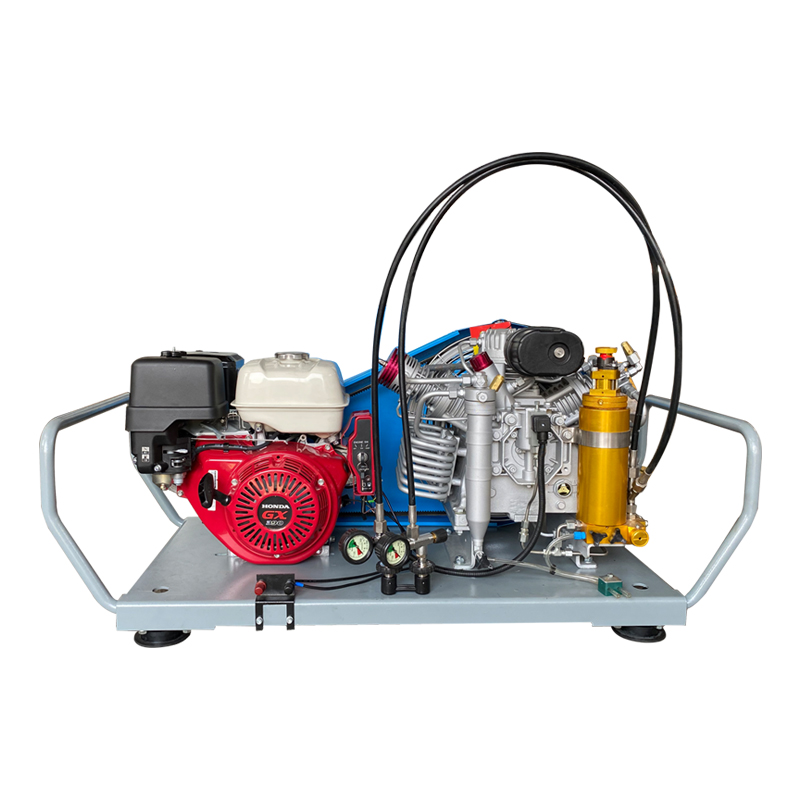

300 Bar High-Pressure Breathing Screw Air Compressor GDR-320P

High-pressure breathing air compressors are widely used in diving breathing, fire fighting, paintball shooting, mountaineering, aquaculture and other industries.

  • Working Pressure:225~330[ bar ]3263~4785[ psig ]
  • Free Air Delivery:11.3[ cfm ]0.32[ m3/min ]
  • Working Power:10[ kw ]13[ hp ]

Product Details

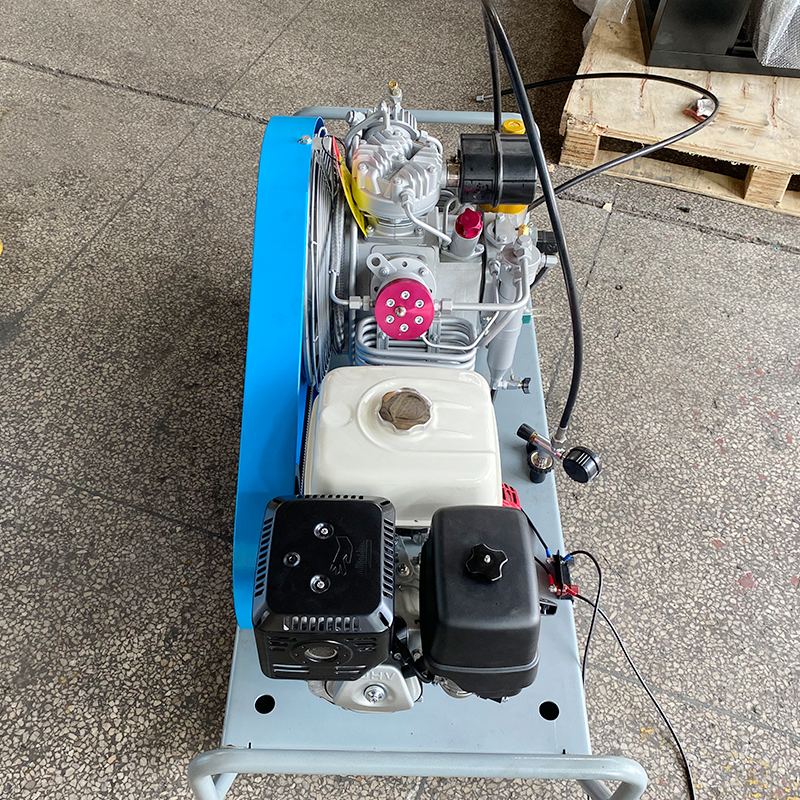

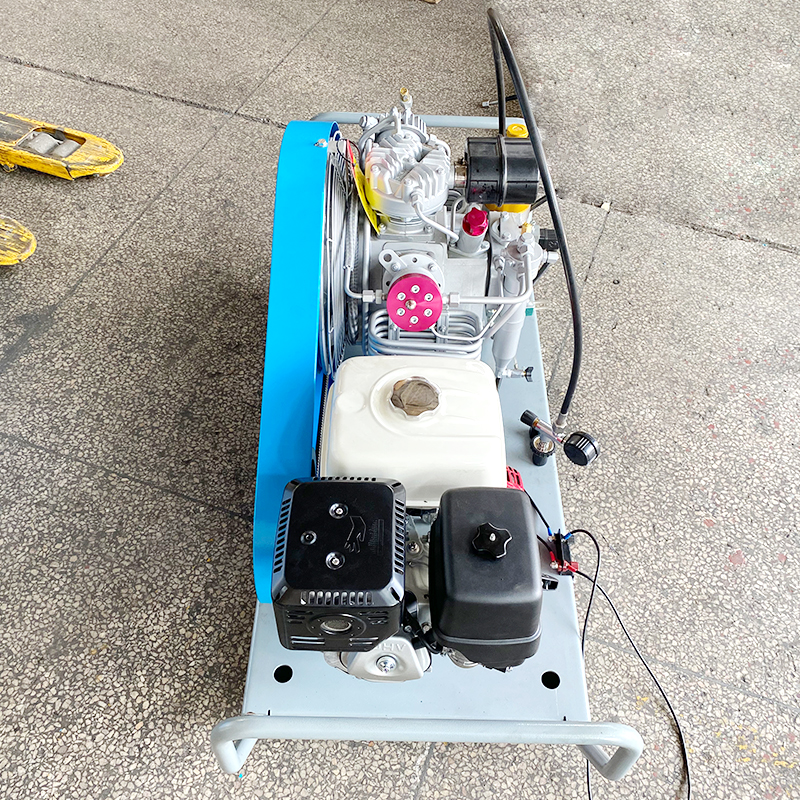

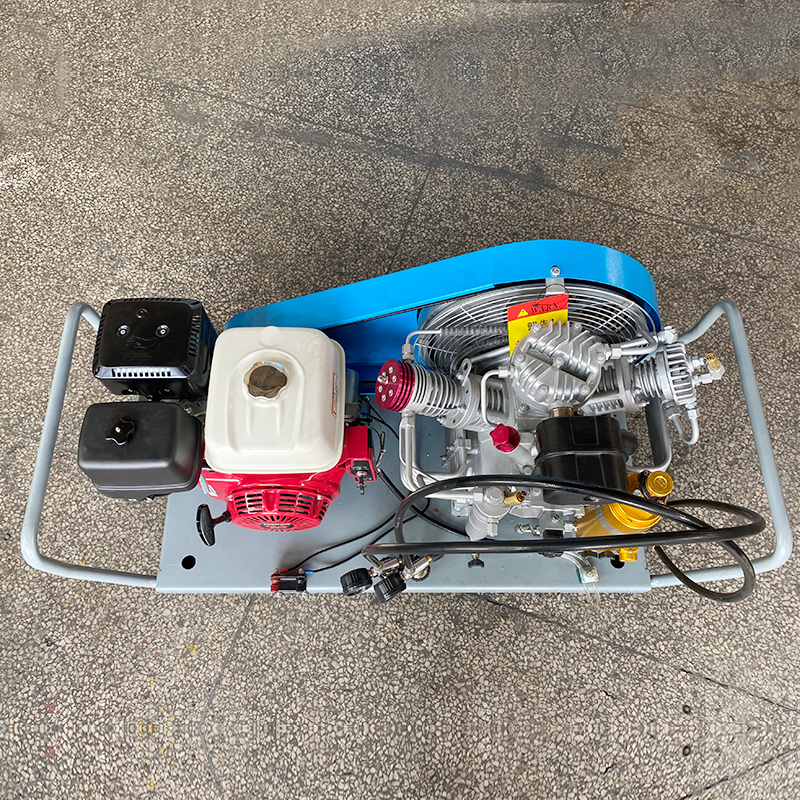

GDR-200P (7).jpg

Product specification
● With power cord and motor protection switch
● Button with start and stop
● The oil-water separator and filter adopt the integrated design of aluminum alloy
● Metal frame structure with plastic coating
● Final safety valve provides overpressure protection
● Stainless steel and aluminum alloy condenser tube
● Activated carbon molecular sieve filter
● Condensate drain valve

Technical Parameters

ModelFlow
(L/min/cfm)
Pressure
(Bar)
Power
(Hp)
(V/HZ/PH)Speed
(rpm)
Compression
stage

Oil amount

(L)
Operating
Temp (°C)
Dimensions
L*W*H(mm)
Weight
(kg)
GDR-200E200/7225/3505.5220-440V 50/60HZ 3PH125032.85~ +451160*590*570116
GDR-200P200/7225/3508Honda Gasoline Engine125032.85~ +451180*590*570109
GDR-265E265/9225/35010220-440V 50/60HZ 3PH145032.85~ +451160*590*570124
GDR-265P265/9225/35012Honda Gasoline Engine145032.85~ +451180*590*570115
GDR-320E320/11225/35010220-440V 50/60HZ 3PH195042.85~ +451300*640*740138
GDR-320P320/11225/35013Honda Gasoline Engine195042.85~ +451300*640*850154
GDR-400E400/14225/35010220-440V 50/60HZ 3PH285042.85~ +451450*640*740160
GDR-400P400/14225/35013Honda Gasoline Engine285042.85~ +451450*640*850178
