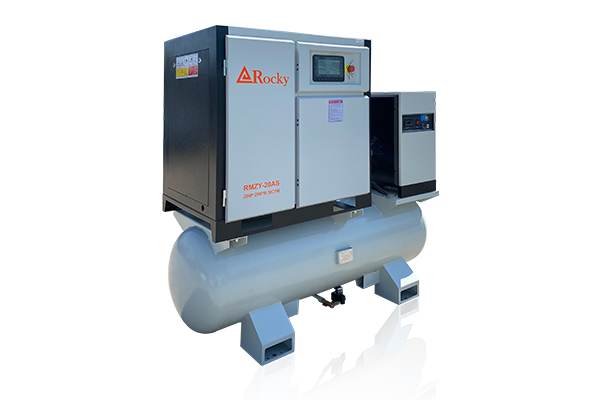

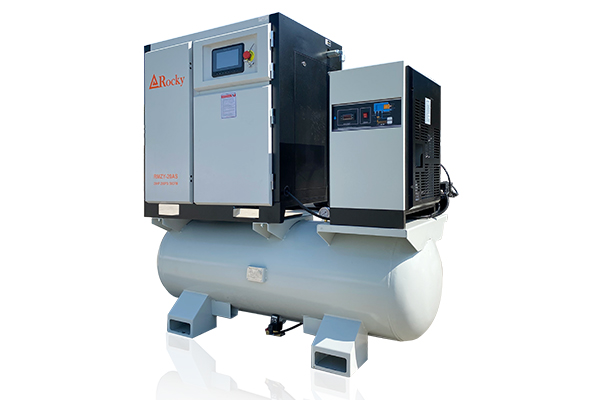

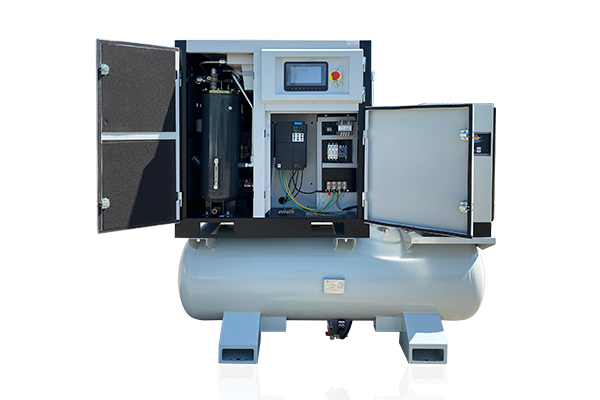

16 bar PM VSD High Pressure Air Compressor for Laser Cutting

4-in-one (Compressor + receiver tank+ dryer + filters) high pressure air compressor is special compressor for Fiber Laser Cutting industry, custom built to provide filtered, dried, continuous reliable

  • Working Pressure:16[ bar ]232[ psig ]
  • Free Air Delivery:21.2~635.4[ cfm ]0.6~18[ m3/min ]
  • Working Power:7.5~132[ kw ]10~180[ hp ]

Product Details

Save your lens from contamination! Cut by Rocky All-in-one Fiber Laser Compressor!


1. How we control the particles in the compressed air?

Higher grade air filter with multilayer design, ensure air dustless.


2. How we control the moisture in the compressed air?

Built-in air dryer.

Cyclone air-water separator filter.

Special design air tank.


3. How we control the oil content in the compressed air?

Special system design, no-touch compression technology.

Oil filter and separator filter to make sure the oil stay controlled.


Cut thicker, faster, cleaner? Cut by Rocky All-in-one Fiber Laser Compressor!

1. The world's leading compressor technology, constantly supply 20bar (284psi) pressure ultra-high  compressed air, by maximize your laser feature to provide efficient laser cutting experience  with no dross.

2. More than 8 filters has been installed in  the system, strictly control the air quality  to prevent lens get contaminated.

3. User-friendly design, power on/off that’s all, the whole process is automatic, including  the draining the impurities and sewage.

4. Money saving, VFD inverter shifts the  mode to idling when the storage is enough,  tank-mounted design saves the shipping  cost with small footprint, pay off in month  one or two.


Product features

1. Latest high-tech screw air end, ensure high stability,  smoother cutting and better-looking cutting surface.

2. Multiple high-efficiency oil and water removal devices  ensure the compressed air entering the laser cutting  machine is dry and oil-less

3. Thermostatic control minimizes the moisture content  of the air, ensuring system reliability & lifetime

4. Equipped with a large-capacity air storage tank, which  stabilizes the air supply pressure and condensates the moisture.

5. The integrated automatic drainage system improves the  purity and dryness of the compressed air, significantly keeps  the laser lens clean away from contamination.

6. All-in-one design, user-friendly,easy to use and transport.



Technical Parameters

High Pressure Screw Air Compressor for Fiber Laser Cutting Application
ModelAir Delivery (m3/min)        maxExhaust
pressure
(Bar)            max
Power
 (kW/HP)
Noise
(Db)
Outlet
diameter
Dimension (mm)  Weight
    (Kg)
Exhaust
pressure
dew point (℃)
Exhaust dust
content (μm)
Exhaust oil
content (ppm)
Gas storage
tank capacity (L)
RMZY-15A1.051611/1565G3/41800*900*17804302~100.010.001400
RMZY-20A1.521615/2065G3/41800*900*17804502~100.010.001400
RMZY-30A2.411622/3068G3/41880*900*19805502~100.010.001400
RMZY-30AA2.411622/3070G3/42250*900*2080700-200.010.001400
RMZY-50AA3.91637/5070G3/42660*1000*2050980-200.010.001600
RMZY-15AS1.052011/1565G3/41800*900*17804602~100.010.001400
RMZY-20AS1.522015/2065G3/41800*900*17804802~100.010.001400
RMZY-30AS2.412022/3068G3/41880*900*19806002~100.010.001400
RMZY-30AAS2.412022/3070G3/42250*900*2080780-200.010.001400
RMZY-50AAS3.92037/5070G3/42660*1000*20501080-200.010.001600
