2~5 bar Two stage Low Pressure Screw Air Compressor

Low-pressure air compressor refers to an air compressor exhaust pressure is usually ≤5 bar, and in some applications it can be as low as 2~3 bar.

  • Working Pressure:2~5.5[ bar ]29~80[ psig ]
  • Free Air Delivery:671[ cfm ]19[ m3/min ]
  • Working Power:75[ kw ]100[ hp ]

Product Details

RL75APMII  (6).jpg

Product features

1.Big rotor, low RPM, high performance.
2.Touchable LED controller, intelligent control, high-ekciency motor, production level IP54.
3.Patented airend design, ensure best compression ratio.
4.Long time continuous working hours for textile industry, programmed pre-alert, not stop immediately, to ensure enough time for machine halt.
5.No need to clean the nozzle frequently because the puri"cation process is designed at the very beginning.

Technical Parameters

Model

Air Delivery

 (m³/min)

Power
(kW/hp)
Noise
dB(A)
Outlet
diameter
Dimensions(mm)Weight
(kg)
5.5 barL*W*H
RL60APMII12.0 45/6068 DN652450*1700*17601450

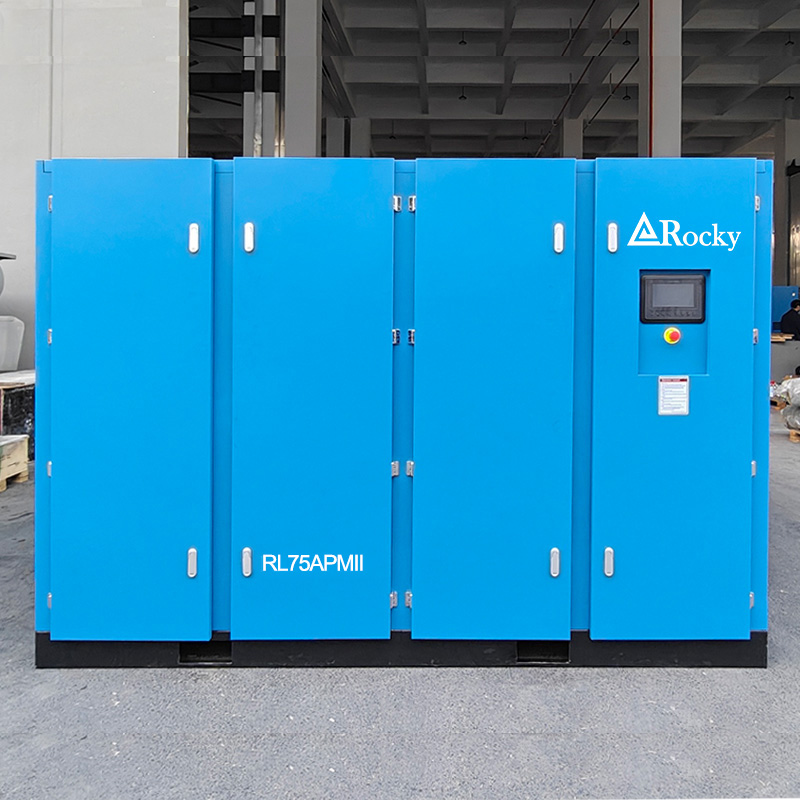

RL75APMII15.0 55175 70 DN652450*1700*17601800
RL100APMII19.2 75/10070 DN652450*1700*17602000
RL125APMII23.0 90/12572 DN802604*1904*18922700
RL150APMII27.90 110/15072 DN802604*1904*18923200
RL175APMII33.30 132/17572 DN1003000*1900*19503100
RL220APMII41.50 160/22078 DN1003000*1900*19504400
RL250APMII43.50 185/25078 DN1253600*2200*22005500
RL270APMII50.50 200/27078 DN1253600*2200*22006000
RL300APMII55.06 220/30080 DN1504000*2300*23006800
RL350APMII60.45 250/35080 DN1504000*2300*23007500
