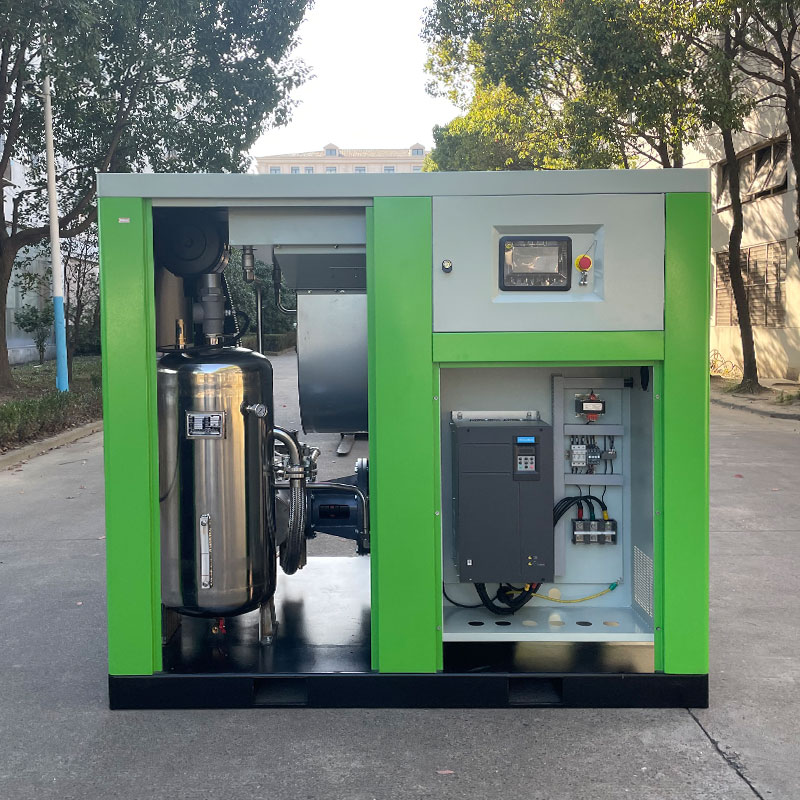

10hp~350HP Oil-free Water Lubricated Screw Air Compressor

Oil-Free Water-Lubricated Air Compressor is a compressor technology that uses pure water as the lubricating medium. Its core feature is that there is no oil involved in the compression process, ensuri

Working Pressure:7~13[ bar ]101.5~189[ psig ]
Free Air Delivery:28.3~1536[ cfm ]0.8~43.5[ m³/min ]
Working Power:7.5~250[ kw ]10~350[ hp ]

PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

10hp~350HP Oil-free Water Lubricated Screw Air Compressor

Product Details

Product feature

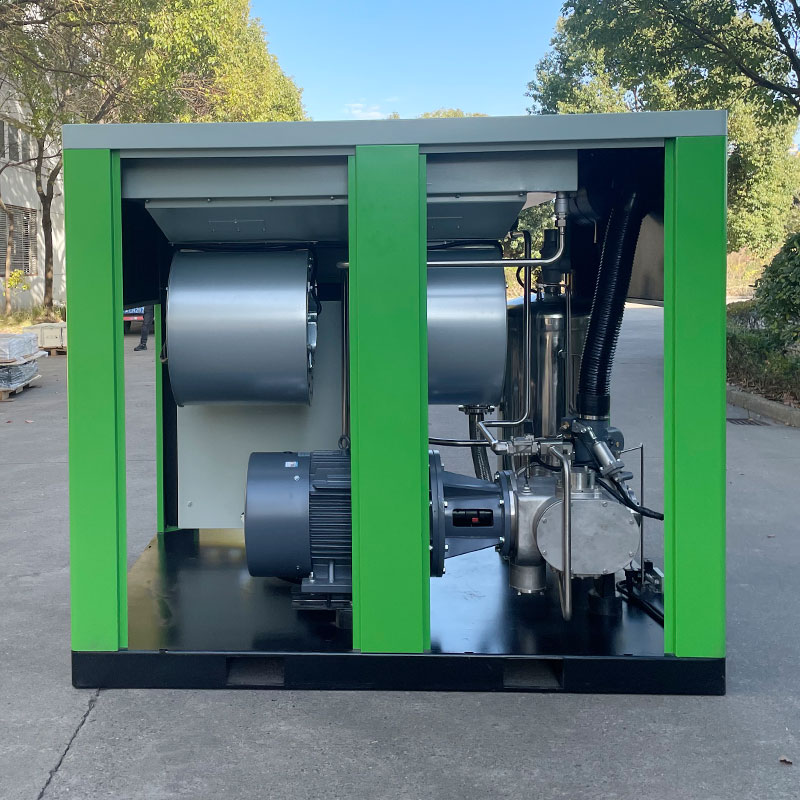

Optimal Water Lubricated Screw Unit

The oil-free water lubricated screw unit adopts PEEK ultra-high-strength ultra-wear-resistant molecular material and aerospace-grade all-stainless steel rotor. The system piping and housing are also made of stainless steel.

Class 0 Oil-free

Water is used for lubrication, cooling, sealing and noise reduction. 100% oil-free and pollution-free, the used water is environmentally friendly and can be drained directly.

Reliable Solenoid Valve

Danfoss and ODE solenoid valves are selected, high sensitivity & longer lifetime.

Less Consumables and Easy Operation

Air filter and water filter only. Lubricating water is automatically replenished and drained regularly.

Technical Parameters

Oil-free Water Lubricated Air Compressor
Model	Air Delivery (m³/min)			Power (kW)	Lubricating water amount (Liters)	Cooling water amount (T/Hour)	Cooling water inlet/outlet diameter	Noise dB(A)	Outlet diameter	Dimensions (mm)
Model	8 bar	10 bar	12.5 bar	Power (kW)	Lubricating water amount (Liters)	Cooling water amount (T/Hour)	Cooling water inlet/outlet diameter	Noise dB(A)	Outlet diameter	LWH
RW-08A/W	1.17	1.05	0.81	7.5	10	2.0	3/4"	58	3/4"	8008001200
RW-11A/W	1.65	1.42	1.10	11	26	2.5	1"	60	3/4"	11507551340
RW-15A/W	2.43	2.17	1.80	15	26	3.5	1"	63	3/4"	11507551340
RW-18A/W	3.13	2.82	2.05	18.5	30	4.0	1"	65	1"	14009001450
RW-22A/W	3.52	3.21	2.78	22	30	5.0	1"	65	1"	14009001450
RW-30A/W	5.12	4.43	3.63	30	40	7.0	1 1/2"	67	1 1/4"	155011501550(A) 150011501300(W)
RW-37A/W	6.30	5.33	4.77	37	40	9.0	1 1/2"	67	1 1/4"	155011501550(A) 150011501300(W)
RW-45A/W	7.40	6.30	5.56	45	90	10.0	1 1/2"	68	2"	198013001760(A) 180013001670(W)
RW-55A/W	9.60	8.55	7.67	55	120	12.0	1 1/2"	70	2"	198013001760(A) 180013001670(W)
RW-75A/W	13.00	11.50	9.70	75	120	18.0	1 1/2"	73	2"	210016001900(A) 220015001800(W)
RW-90A/W	14.80	13.90	12.60	90	180	20.0	1 1/2"	73	2 1/2"	240016002000(A) 220015001800(W)
RW-110A/W	19.85	16.66	15.56	110	180	24.0	2"	78	2 1/2"	300017002250(A) 220015001800(W)
RW-132A/W	23.10	19.97	16.90	132	240	30.0	2"	78	2 1/2"	300017002250(A) 220015001800(W)
RW-160W	28.11	25.45	22.52	160	240	35.0	3H	80	DN80	270028002050
RW-185W	33.97	29.00	25.21	185	300	38.0	3"	80	DN80	270028002050
RW-200W	36.75	32.78	29.24	200	300	42.0	4"	80	DN100	270028002050
RW-220W	39.67	36.75	29.63	220	360	47.0	4"	80	DN100	270028002050
RW-250W	43.50	39.30	34.00	250	360	58.0	4"	80	DN100	270028002050
Note:" A" means air cooling," W" means water cooling.
