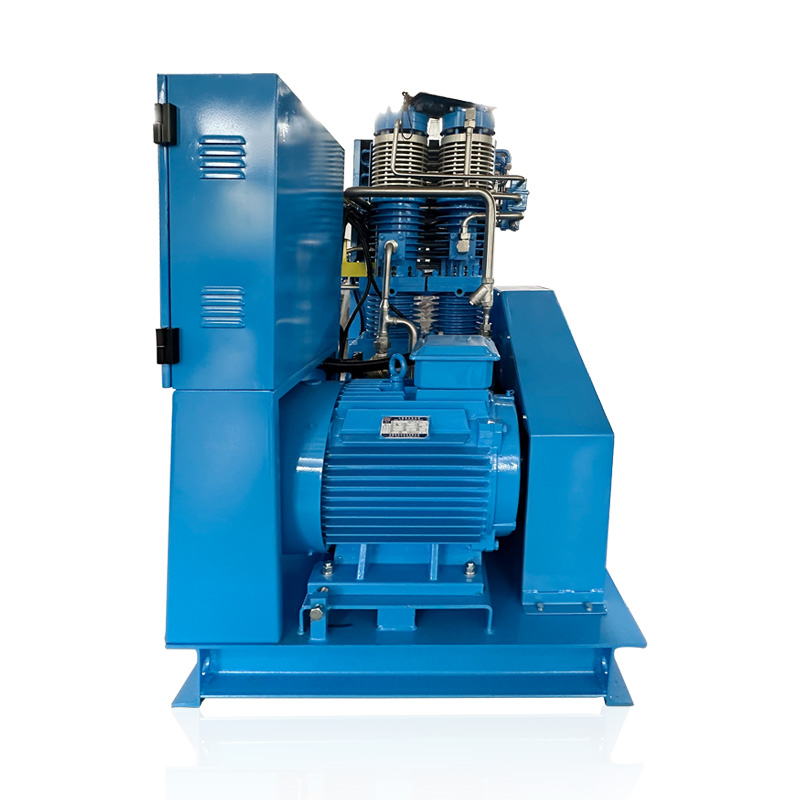

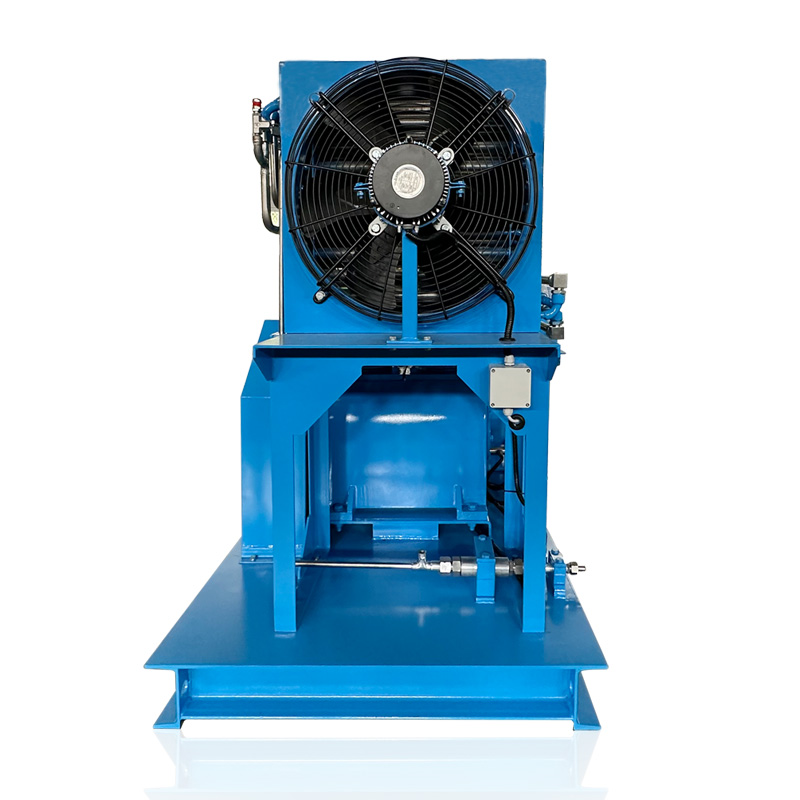

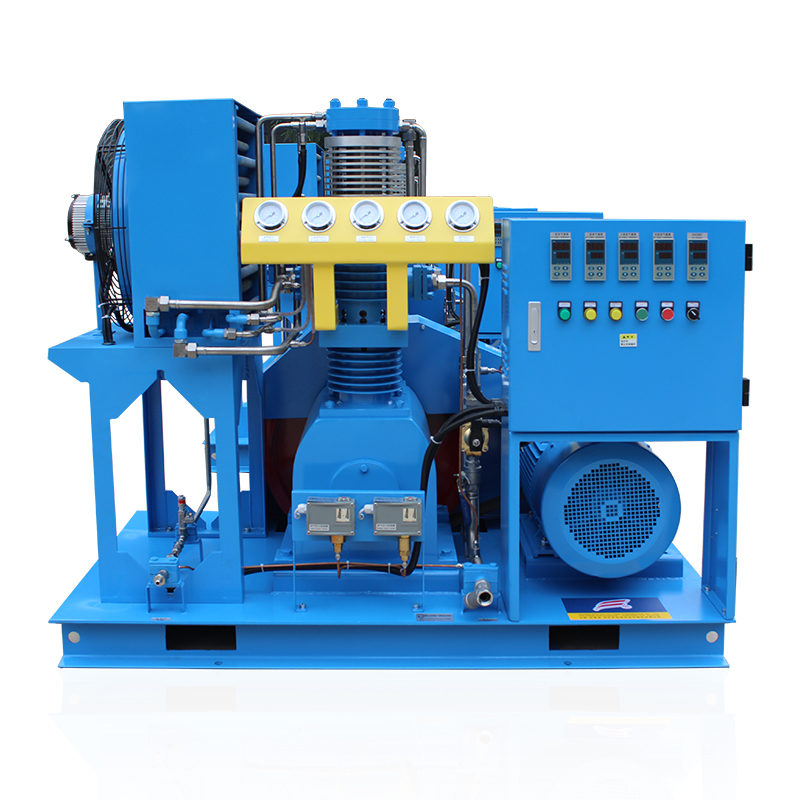

100Nm3 high pressure oil-free oxygen compressor nitrogen compressor

A booster is a mechanical device used to increase gas pressure. It compresses air or other gases to increase their pressure to meet specific needs in industries such as industry, energy, and transport

Working Pressure:150~200[ bar ]2175~2900[ psig ]
Free Air Delivery:35.5~5295[ cfm ]1~150[ m³/min ]
Working Power:1.5~45[ kw ]3~60[ hp ]

PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

100Nm3 high pressure oil-free oxygen compressor nitrogen compressor

Product Details

Product features

1. Medical grade oil-free compression, Class 0 Certified.

2. Heavy-duty design,with 24/7 continuous performance

3. High outlet pressure up to 500bar.

4. Available for special gases such as oxygen, nitrogen, hydrogen, CNG, and more.

Technical Parameters

Model	Capacit y(m³/h)	Inlet P (Barg)	Outlet P (Barg)	Motor Power (kw)	Inlet/Out Temp(℃)	Inlet Size	Outlet Size	Dimension LW H(mm)	Weight (kg)
GOW-1~3/4-150	1~3	3~4	150	1.5~3.0	45	M14*1.5	M14*1.5	850640680	140
GOW-1~3/4-200	1~3	3~4	200	1.5~3.0	45	M14*1.5	M14*1.5	850640680	140
GOW-4~12/4-150	4~12	3~4	150	3.0~5.5	45	DN15	M16*1.5	10008001100	320
GOW-4~12/4-200	4~12	3~4	200	3.0~5.5	45	DN15	M16*1.5	10008001100	320
GOW-10~15/4-150	10~15	3~4	150	5.5~7.5	45	DN15	M16*1.5	10507501020	450
GOW-10~15/4-200	10~15	3~4	200	5.5~7.5	45	DN15	M16*1.5	10507501020	450
GOW-13~60/4-150	13~60	3~4	150	11~18.5	45	DN25	M16*1.5	16509501470	960
GOW-13~60/4-200	13~60	3~4	200	11~18.5	45	DN25	M16*1.5	16509501470	960
GOW-60~70/4-150	60~70	3~4	150	22	45	DN40	M22*1.5	195013501400	1300
GOW-80~150/4-150	80~150	3~4	150	30~45	45	DN50	M22*1.5	210011001600	2000
GOW-80~150/4-200	80~150	3~4	200	30~45	45	DN50	M22*1.5	210011001600	2000
