High-purity and Low-noise Industrial-grade Food PSA Nitrogen Generator

Nitrogen and oxygen boosters are follow-up equipment used in gas separation and other fields. They are widely used in chemical, food and other industries. The oil-free low-pressure nitrogen and oxygen

  • Working Pressure:0 ~ 0.8[ bar ]0~116[ psig ]
  • Free Air Delivery:2.8~4695[ cfm ]0.08~ 133[ m3/min ]
  • Working Power:7.5~220[ kw ]10~300[ hp ]

Product Details

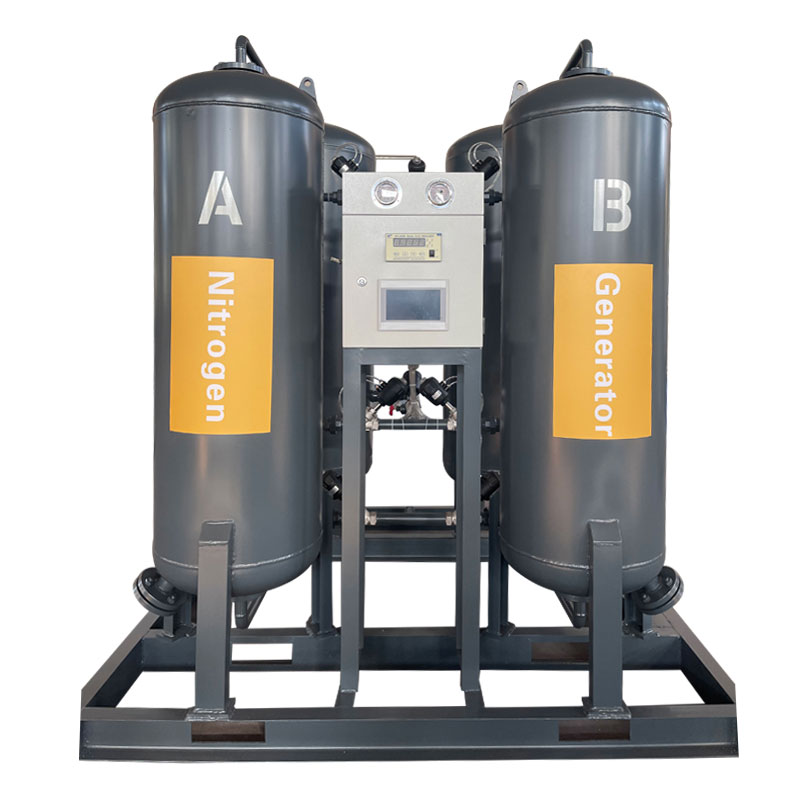

PSA nitrogen generator (1).jpg

Product feature

1. Imported pneumatic angle valve, service lifespan for more than 3 million times.

2. Siemens PLC intelligent program controller, easy to operate, stable operation.

3. Special alumina ceramic ball diffusion technology to make the air distribution uniform, improve the adsorption efficiency of the adsorbent.

4. Self-powered cylinder pressing device to protect the service lifespan of carbon molecular sieve.

5.Original centrifugal vibration filling mode effectively ensures the maximum amount of filling.

Technical Parameters

High Performance PSA Nitrogen Plants

Technical indicators:

Nitrogen production: 5 ~ 8000Nm3/hr

Nitrogen purity: 95 ~ 99.999999%

Nitrogen pressure: 0 ~ 0.8Mpa (1.0 ~ 15.0Mpa is also available)

Dew point: ≤-45 ~ -70℃
