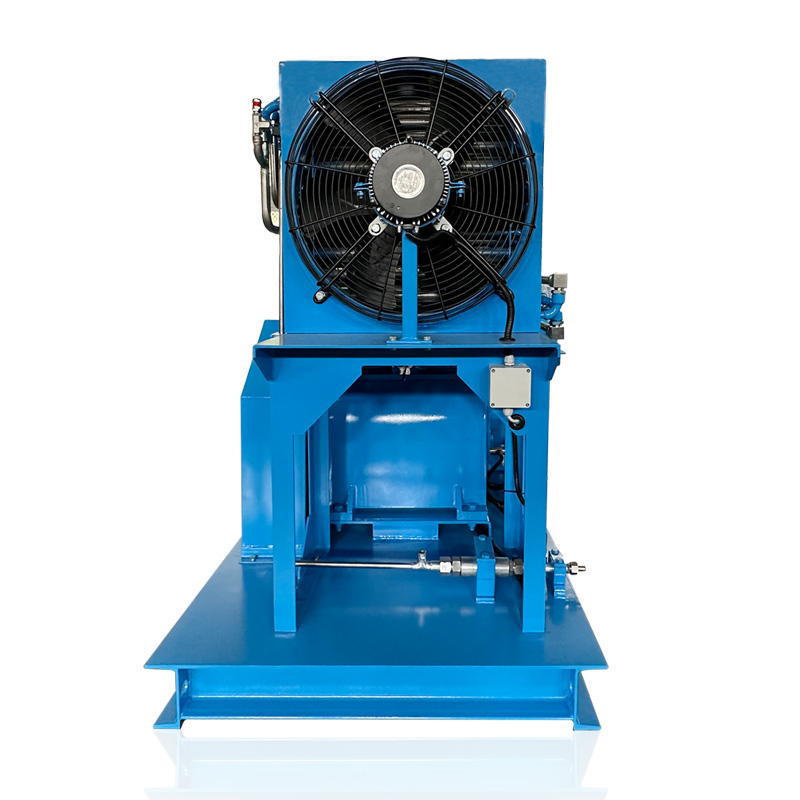

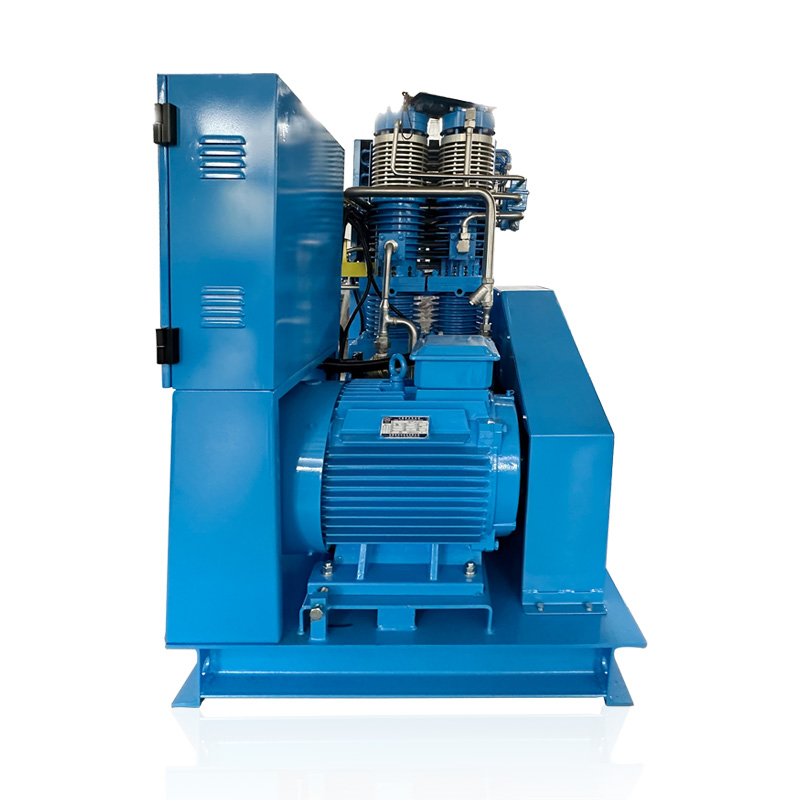

150~200 bar High Pressure Oxygen Booster Compressor

  • Working Pressure:150~200[ bar ]2175~2900[ psig ]
  • Free Air Delivery:0.7~88.3[ cfm ]0.02~2.5[ m3/min ]
  • Working Power:1.5~45[ kw ]2~60[ hp ]

Product Details

Core Advantages

1. Extreme Safety

Through its oil-free design, compatible materials, and rigorous cleaning, it fundamentally eliminates the risk of combustion and explosion, safeguarding life and property.

2. Guaranteed Oxygen Purity

The oil-free design and specialized materials prevent secondary contamination of oxygen during the compression process, ensuring the purity of the output oxygen, meeting the requirements of high-end applications such as medical, electronics, and aerospace.

3. Reliable and Stable Operation

The specialized design for harsh operating conditions ensures long-term stable operation even in high-pressure, oxygen-rich environments with a low failure rate.

4. Compliance with Strict Regulations

Meets mandatory national and industry safety standards for oxygen equipment.

Technical Parameters

Model

Capacity

(m3/h)

Inlet P

(Barg)

Outlet P (Barg)

Motor

Power

(kW)

Inlet/Out

Temp

()

Inlet

Size

Outlet

Size

Dimensions L*W*H(mm)Weight (kg)
GOW-1~3/4-1501~33~41501.5~3.045M14*1.5M14*1.5850*640*680140
GOW-1~3/4-2001~33~42001.5~3.045M14*1.5M14*1.5850*640*680140
GOW-4~12/4-1504~123~41503.0~5.545DN15M16*1.51000*800*1100320
GOW-4~12/4-2004~123~42003.0~5.545DN15M16*1.51000*800*1100320
GOW-10~15/4-15010~153~41505.5~7.545DN15M16*1.51050*750*1020450
GOW-10~15/4-20010~153~42005.5~7.545DN15M16*1.51050*750*1020450
GOW-13~60/4-15013~603~415011~18.545DN25M16*1.51650*950*1470960
GOW-13~60/4-20013~603~420011~18.545DN25M16*1.51650*950*1470960
GOW-60~70/4-15060~703~41502245DN40M22*1.51950*1350*14001300
GOW-80~150/4-15080~1503~415030~4545DN50M22*1.52100*1100*16002000
GOW-80~150/4-20080~1503~420030~4545DN50M22*1.52100*1100*16002000
