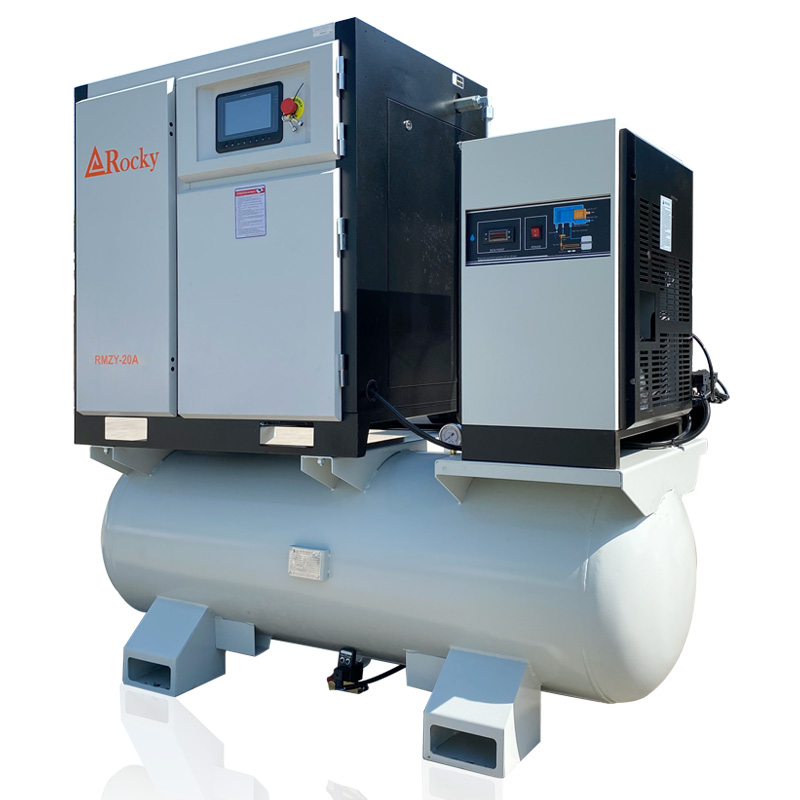

16 bar High Pressure PM VSD Integrated Screw Air Compressor for Fiber Laser Cutting

The high-pressure integrated screw air compressor for laser cutting is an air power system designed and integrated specifically for laser cutting equipment. It integrates the screw air compressor, dry

  • Working Pressure:7~20[ bar ]101.5~290[ psig ]
  • Free Air Delivery:1.05~5.5[ cfm ]37.1~194[ m3/min ]
  • Working Power:7.5~55[ kw ]10~75[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

Features and Advantages

1. Highly Integrated, Space-Saving

The modular design integrates multiple components into a compact structure, significantly reducing on-site installation work and floor space.

2. Stable Air Supply, High Cutting Quality

Designed specifically for the high-pressure requirements of laser cutting, it provides stable, pure compressed air, ensuring smooth, burr-free, and highly precise cut surfaces.

3. Energy-Efficient

The screw airend and high-efficiency motor provide improved energy efficiency, especially under partial load conditions, and lower energy consumption compared to traditional "compressor + post-processing equipment" split solutions.

4. Plug-and-Play, Easy Operation

Factory-installed and fully integrated, users only need to connect the power supply and air outlet piping, significantly reducing installation and maintenance complexity.

5. High Reliability

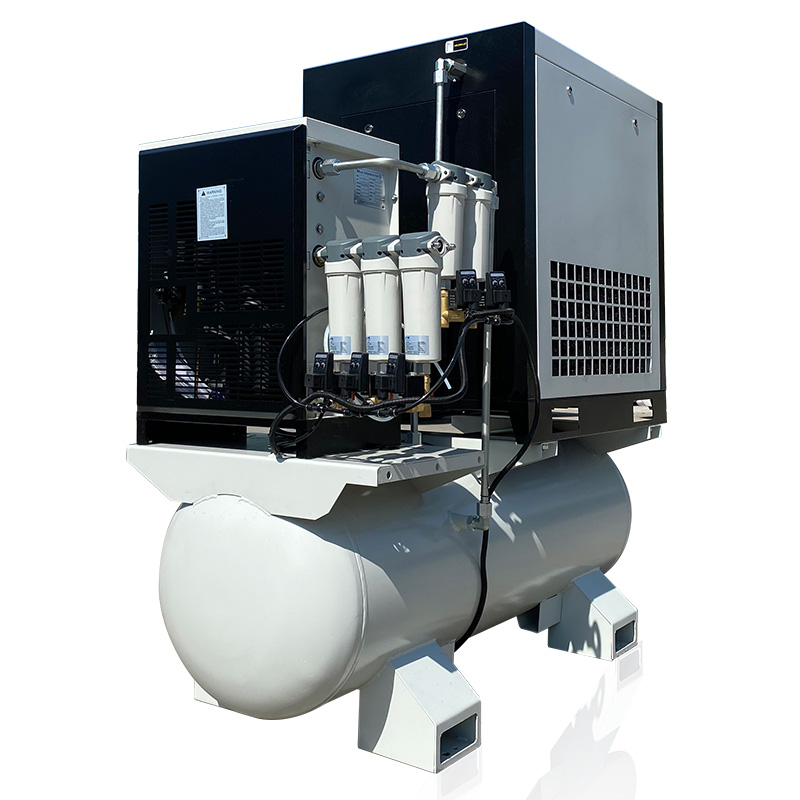

The integrated design reduces pipe connection points, minimizing the risk of leaks. The built-in freeze dryer and precision filter effectively remove oil, water, and dust, protecting the laser cutting head from contamination and damage.

Technical Parameters

High Pressure Screw Air Compressor for Fiber Laser Cutting Application



Model

Air Delivery
(m3/min)
max

Exhaust

pressure
(bar)
max


Power

(kW/hp)


Noise

dB(A)


Outlet

diameter
(In)


Dimensions

(mm)


Weight

(kg)		Exhaust
pressure
dew point (°C)		Exhaust
dust
content (μm)		Exhaust oil
content
(ppm)		Gas storage
tank
capacity (L)
RMZY-10A81.20 8 7.5/1063 G3/41505*740*1430350 2~100.01 0.001 260
RMZY-15A81.70 8 11/1565 G3/41800*900*1780410 2~100.01 0.001 400
RMZY-20A82.30 8 15/2065 G3/41800*900*1780430 2~100.01 0.001 400
RMZY-30A83.60 8 22/3068 G3/41800*900*1980530 2~100.01 0.001 400
RMZY-15A1.05 16 11/1568 G3/41800*900*1780430 2~100.01 0.001 400
RMZY-20A1.52 16 15/2065 G3/41800*900*1780450 2~100.01 0.001 400
RMZY-30A2.41 16 22/3068 G3/41880*900*1980550 2~100.01 0.001 400
RMZY-20AA1.52 16 15/2065 G3/42250*900*2080450 -20 0.01 0.001 400
RMZY-30AA2.41 16 22/3070 G3/42250*900*2080700 -20 0.01 0.001 400
RMZY-50AA3.90 16 37/5070 G3/42660*1000*2050980 -20 0.01 0.001 600
RMZY-75AA5.50 16 55/7570 G3/43500*2330*22151540 -20 0.01 0.001 1800
RMZY-15AS1.05 20 11/1565 G3/41800*900*1780460 2~100.01 0.001 400
RMZY-20AS1.52 20 15/2065 G3/41800*900*1780480 2~100.01 0.001 400
RMZY-30AS2.41 20 22/3068 G3/41880*900*1980600 2~100.01 0.001 400
RMZY-20AAS1.52 20 15/2065 G3/42250*900*2080740 2~100.01 0.001 400
RMZY-30AAS2.41 20 22/3070 G3/42250*900*2080780 -20 0.01 0.001 400
RMZY-50AAS3.90 20 37/5070 G3/42660*1000*20501080 -20 0.01 0.001 600
RMZY-75AAS5.50 20 55/7570 G3/43500*2330*22151540 -20 0.01 0.001 1800
Note:
1."A" indicates an additional absorption dryer.
2."S" indicates "Super High 20 bar" discharge pressure.
3.All compressors feature adjustable pressure settings.
