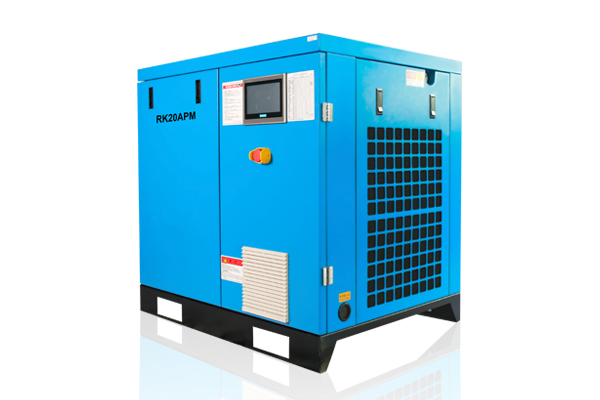

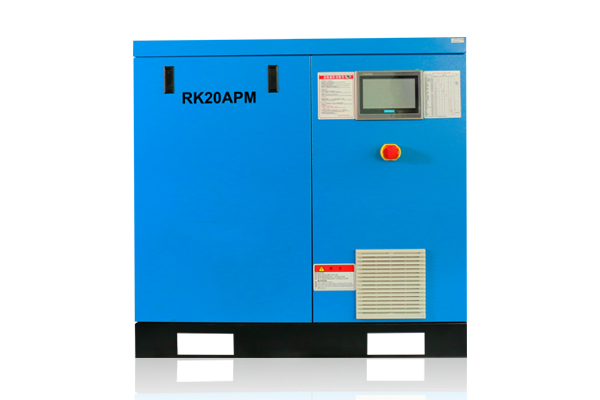

Energy-saving Permanent Magnet Variable Frequency Screw Air Compressor

Energy-saving permanent magnet variable frequency screw air compressor

  • Working Pressure:8~13[ bar ]116~188.5[ psig ]
  • Free Air Delivery:24.7~85[ cfm ]0.7~2.4[ m3/min ]
  • Working Power:15[ kw ]20[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details


Product features

1.  Super IE4 class, 97% high-efficiency energy-saving PM motor.

2. Latest technology screw air end, more compact and stable.

3. Intelligent frequency conversion technology, energy saving  up to 42%.

4. Internet remote control, monitor your compressor anytime,  anywhere.

Technical Parameters

Intelligent PM VSD Screw Air Compressor
ModelAir Delivery (m3/min)Power
(kW)		Noise
(dB)		Outlet
diameter		Dimension (mm)Weight
  (Kg)
8bar10bar13barL * W * H
RK10APM0.5-1.20.4-1.00.3-0.77.563G3/4900*650*860190
RK15APM0.6-1.70.5-1.60.4-1.01165G3/41150*750*960320
RK20APM1.0-2.40.8-2.10.7-1.61565G3/41150*750*960340
RK30APM1.5-3.71.3-3.21.1-2.82268G11350*850*1120430
RK40APM2.0-5.01.6-3.91.4-3.43068G11500*1000*1350600
RK50APM2.5-6.22.2-5.62.0-4.93769G1 1/21500*1000*1350650
RK60APM3.0-7.32.4-6.02.3-5.94570G1 1/21500*1000*1350730
RK75APM3.8-9.53.5-8.73.0-7.35570G21700*1200*1550950
RK100APM5.1-12.84.5-11.33.7-9.27572G21700*1200*15501050
RK125APM6.2-15.55.4-13.65.0-12.59072G22100*1400*16501420
RK150APM7.8-19.67.1-17.86.2-15.511072DN652500*1650*19002200
RK175APM9.3-23.27.8-19.57.1-17.813272DN652500*1650*19002400
RK220APM11.1-27.89.2-23.08.0-20.016072DN803000*1900*19503650
RK250APM12.5-31.211.0-27.510.3-25.818572DN803000*1900*19503950
RK270APM13.6-34.012.2-30.511.2-28.020076DN803600*2200*22004200
RK300APM14.0-35.012.8-32.012.0-30.022076DN1003600*2200*22004600
RK350APM16.6-41.515.2-38.014.0-34.925076DN1003600*2200*22005900
RK375APM20.2-50.618.4-46.016.6-41.528082DN1003600*2200*22006000
RK420APM22.2-55.920.0-50.116.8-42.031582DN1254600*2300*24307800
RK420WPM22.2-55.920.0-50.116.8-42.031582DN1254200*2300*24307500
RK475APM26.0-65.422.0-55.118.4-46.035585DN1254600*2300*24308200
RK475WPM26.0-65.422.0-55.118.4-46.035582DN1254200*2300*24307900
