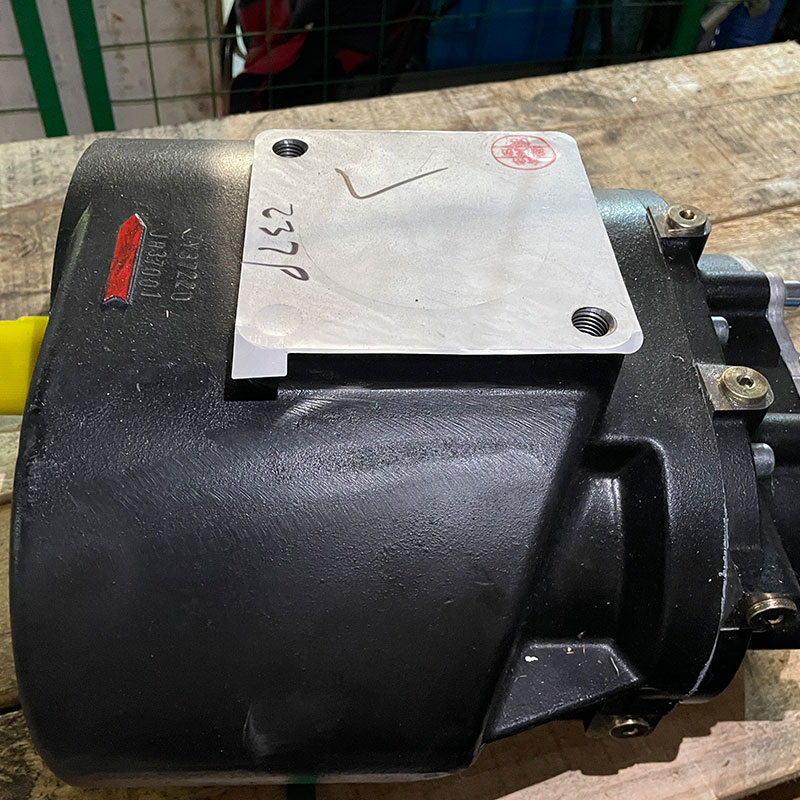

Screw Compressor Head Hanbell Air End AC-480r for Screw Air Compressor

Hanbell AC series screw airend refers specifically to the air source heat pump unit produced by Shanghai Hanbell Precision Machinery Co., Ltd., which uses its core patented technology - screw compress

Working Pressure:7~13 [ bar ]101.5~489[ psig ]
Free Air Delivery:260[ cfm ]7.38[ m³/min ]
Working Power:45[ kw ]60[ hp ]

PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Screw Compressor Head Hanbell Air End AC-480r for Screw Air Compressor

Product Details

Hanbell air end AC series

Product Features

● Optimized Structure

Four-bearing design, ensuring simple and compact, effectively saving air unit package space and overall cost.

● Semi-Automatic Assembly

Advanced semi-automatic assembly line precisely controls the tolerance range of each component and assembly to ensure operating stability.

● Large Market Share

Cost-effective product line with large market share.

Technical Parameters

Model	Power (kW)	Rotating speed (rpm)	Air Delivety (m3/min)	Shaft power (kW)	Specific power (kW/m³/min)	Connection method	Dimension(mm)	Weight(kg)
AC-077	7.5	3600	1.03	7.3	7.09	Belt/PM	282178140	18
AC-077	11	5200	1.59	11	6.92	Belt/PM	282178140	18
AC-130	11	3000	1.92	12.7	6.61	Belt/PM	380200170	50
AC-130	15	3600	2.34	15.6	6.67	Belt/PM	380200170	50
AC-240	22	3000	3.59	23	6.41	Direct Driven	405260207	55
AC-420S	30	3000	4.5	31	6.89	Direct Driven	453353280	100

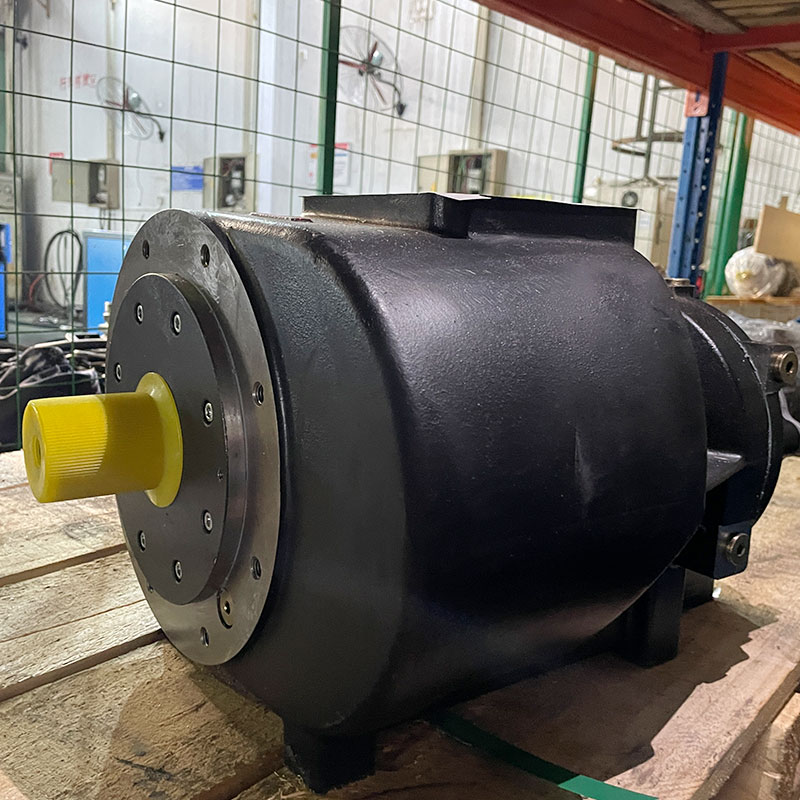

AC-420	37	3000	6.28	38.9	6.19	Direct Driven	453353280	100
AC-480R	45	3000	7.38	45.7	6.19	Direct Driven	550370300	145
AC-600R	55	3000	9.25	57.6	6.23	Direct Driven	630350300	155
AC-780R	75	3000	12.6	74.7	5.93	Direct Driven	650380350	195
AC-1030R	90	3000	15.2	96	633	Direct Driven	772402350	260
AC-1200R	110	3000	19.54	119	6.09	Direct Driven	810575412	378
AC-1320	132	3000	21.83	142.4	6.52	Direct Driven	863610442	490
AC-1450R	132	3000	21.76	135.7	6.24	Direct Driven	500485409	220
