50Nm3/h 25 bar High Pressure Oil-free Piston Nitrogen Booster Compressor

This booster compressor is a gas boosting device that increases the pressure of compressed air from an inlet pressure of 5 bar to an outlet pressure of 25 bar.

  • Working Pressure:5~25[ bar ]72.5~362.5[ psig ]
  • Free Air Delivery:12~141.2[ cfm ]0.34~4[ m3/min ]
  • Working Power:3~30[ kw ]4~40[ hp ]

Product Details

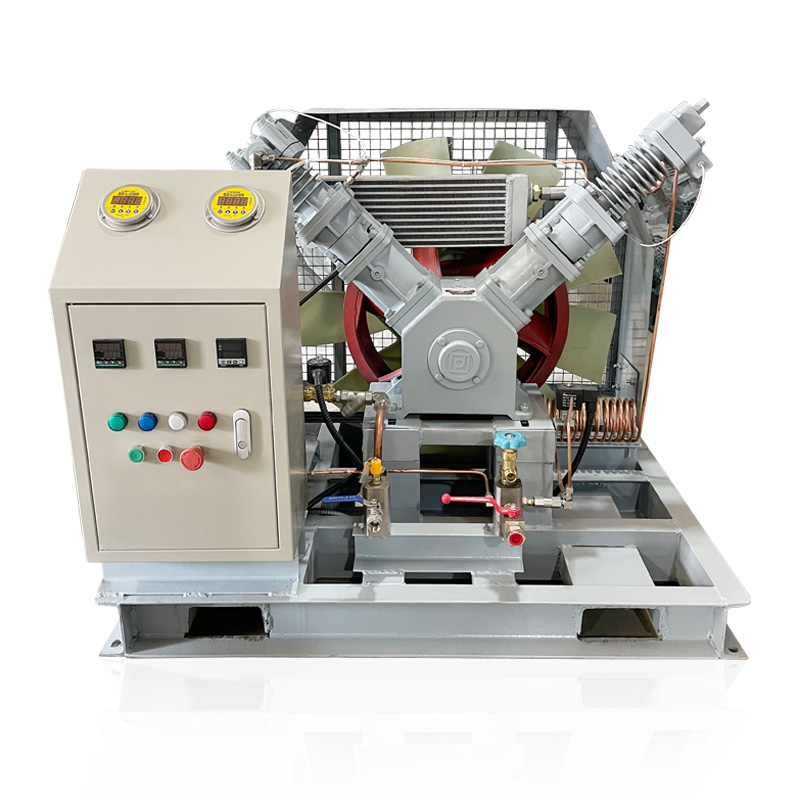

RVWN系列 (20).jpg

Product features

1. Critical Safety Design

Features oil-free compression and oxygen-compatible materials to eliminate fire and explosion risks.

2. High-Pressure Output

Reliably boosts pressure to the essential 25 bar level required for demanding processes like laser cutting and oxidation.

3. Process Reliability

Ensures a stable and pure oxygen supply, protecting sensitive downstream equipment and ensuring consistent results.

4. Operational Efficiency

Provides a cost-effective solution to generate high-pressure oxygen on-site, avoiding the need for expensive bottled gas.

5. Robust & Durable

Engineered for continuous operation with minimal maintenance, maximizing uptime in industrial environments.


Technical Parameters

ModelInlet P (Mpa)Outlet P (Mpa)

Capacity

(m3/h)

Motor Power(Kw)Dimension L*W*H(mm)CompressionInlet sizeOutlet SizeWeight (kg)
RVWN-20/5-250.5 2.5 20 1250x500x900Rc1/2Rc1/2210
RVWN-30/5-250.5 2.5 30 1250x550x900Rc1Rc1230
RVWN-40/5-250.5 2.5 40 5.5 1250x600x900Rc1Rc1250
RVWN-50/5-250.5 2.5 50 7.5 1250x600x900Rc1Rc1270
RVWN-60/5-250.5 2.5 60 7.5 1250x600x900Rc1Rc1270
RVWN-70/5-250.5 2.5 70 7.5 1250x600x900Rc1Rc1270
RVWN-80/5-250.5 2.5 80 11 1250x700x900Rc1Rc1300
RWWN-100/5-250.5 2.5 100 11 1350x700x1200Rc1Rc1380
RWWN-120/5-250.5 2.5 120 15 1350x700x1200Rc1Rc1410
RWWN-140/5-250.5 2.5 140 15 1350x700x1200Rc1Rc1410
RSWN-160/5-250.5 2.5 160 18.5 1500x800x1200Rc1Rc1490
RWWN-200/5-25-‖0.5 2.5 200 11x21600x1600x1200Rc11/2Rc1940
RWWN-240/5-25-‖0.5 2.5 240 15x21600x1600x1200Rc11/2Rc11000
