25cfm Electric 300 Bar Scuba Tank Filling Breathing Air Compressor GDR-750E

High-pressure compressors, specifically designed for breathing air systems, can compress air to extremely high pressures of up to 300 bar and are typically driven by electric motors, used for filling

  • Working Pressure:225~350[ bar ]3263~5075[ psig ]
  • Free Air Delivery:25[ cfm ]0.75[ m3/min ]
  • Working Power:15[ kw ]20[ hp ]

Product Details

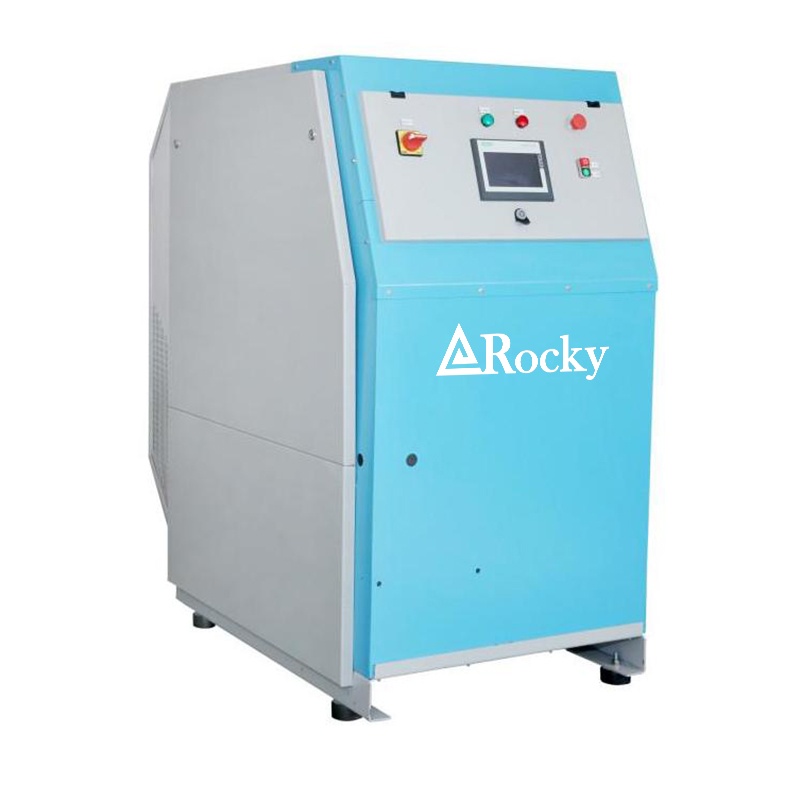

scuba diving  (1).jpg

Product Advantages:

1. Ultra-high pressure output, efficient inflation: High compression ratio reduces inflation time and improves cylinder turnover efficiency.

2. Precision filtration system, reliable gas quality: Output gas meets medical/diving grade standards, ensuring user respiratory safety.

3. Energy-efficient and durable: Multi-stage compression design reduces energy consumption, and the robust structure is suitable for long-term, heavy-duty use.

4. Low maintenance costs: Modular design facilitates maintenance, and the intelligent monitoring system provides fault warnings.

5. Wide applicability: Suitable for various scenarios such as diving centers, fire rescue, mine emergency response, and laboratories.

Technical Parameters

ModelFlow
(L/min/cfm)
Pressure
(Bar)
Power
(Hp)
(V/HZ/PH)Speed
(Rpm)
Compression
stage
Oil amount
(L)
Operating
Temp (°C)
Dimension
L*W*H(mm)
Weight
(Kg)
GDR-100E100/3.5225/3503220-230V 50/60HZ 1PH23003   0.36   5~ +45770*380*42045
GDR-150E150/5.2225/3504220-230V 50/60HZ 1PH245030.36   5~ +45660*400*42052
GDR-200E200/7225/3505.5220-440V 50/60HZ 3PH12503.02.85~ +451160*590*570116
GDR-265E265/9225/35010220-440V 50/60HZ 3PH14503.02.85~ +451160*590*570124
GDR-320E320/11225/35010220-440V 50/60HZ 3PH19504.02.85~ +451300*640*740138
GDR-400E400/14225/35010220-440V 50/60HZ 3PH2850435~ +451450*640*740160
GDR-500E500/18225/35015220-440V 50/60HZ 3PH1200455~ +451500*860*1550380
GDR-680E680/18225/35020220-440V 50/60HZ 3PH1400455~ +451500*860*1550410
GDR-750E750/25225/33020220-440V 50/60HZ 3PH1600455~ +451500*860*1550420
