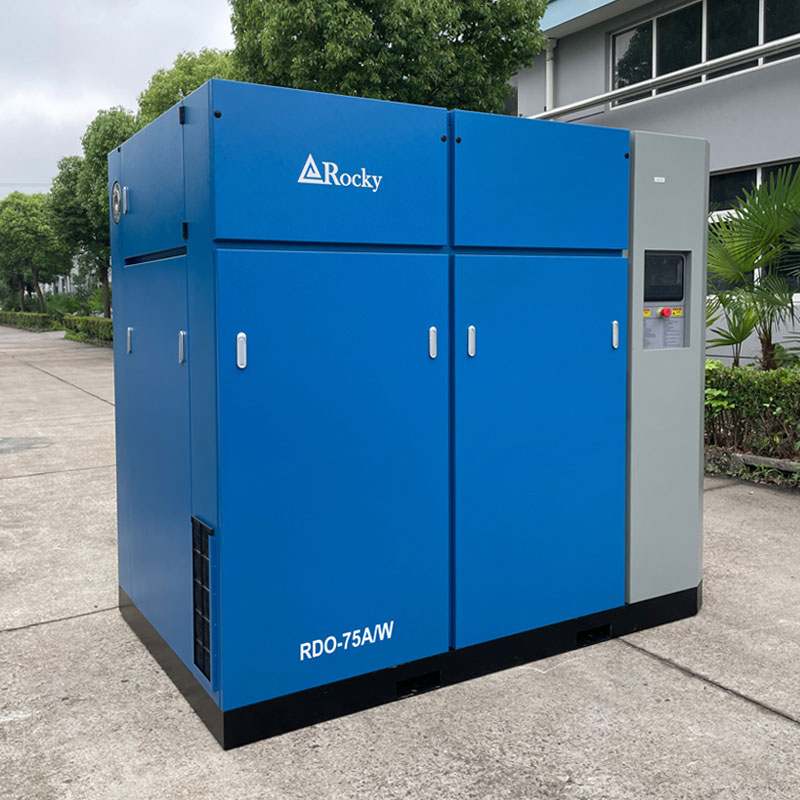

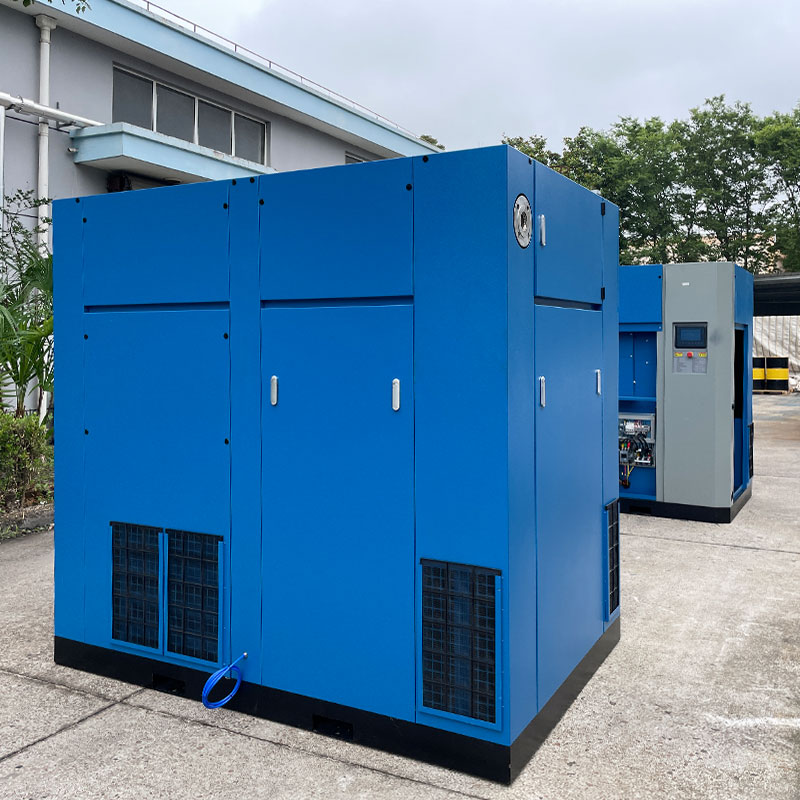

75kW 100HP 7-10 bar Dry Oil-Free Air Compressor Class 0 Certified for Electronics

A dry oil-free rotary screw air compressor is a type of industrial compressor that uses two intermeshing screws (rotors) to compress air without any oil or lubricant in the compression chamber. The ro

  • Working Pressure:7~10[ bar ]101.5~145[ psig ]
  • Free Air Delivery:232.9~458.9[ cfm ]6.6~13[ m3/min ]
  • Working Power:75[ kw ]100[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

Product features

  • 100% Oil-Free Air: Delivers ISO 8573-1 Class 0 certified air, ensuring zero oil contamination-critical for sensitive industries.

  • Higher Output for Medium-to-Large Operations: With 75kW power, it provides greater flow capacity (typically 10-14 m³/min), ideal for plant-wide or high-demand applications.

  • Energy-Efficient Operation: Equipped with permanent magnet motors (IE4/IE5) and variable speed drives (VSD) to optimize energy use based on demand.

  • Robust & Reliable: Designed for continuous duty with stainless steel rotors, heavy-duty bearings, and advanced cooling systems for long service life.

  • Compact & Low Noise: Space-saving design with sound-insulated enclosures, operating as quietly as 70-75 dB(A).

  • Smart Monitoring & Control: Built-in controllers enable real-time monitoring, remote diagnostics, and predictive maintenance.

Technical Parameters

                                                   Dry Oil-free Screw Air Compressor RDO Series
ModelAir Delivery (m3/min)Power
(kW)		Noise
dB(A)		Outlet
diameter		Dimension (mm)  Weight
    (Kg)
7bar8bar10barAir-cooledWater-cooledAir-cooledWater-cooled
RDO-45A/W4.5-7.84.0-6.83.7-6.445 69±3DN502200*1400*20002200*1500*17202650 2700
RDO-55A/W5.7-9.85.2-9.04.4-7.855 69±3DN502200*1400*20002200*1500*17202850 2900
RDO-75A/W7.6-13.07.2-12.26.6-11.275 70±3DN502200*1400*20002200*1500*17202950 2900
RDO-90A/W9.6-16.08.1-13.87.6-13.190 71±3DN502200*1400*20002200*1500*17203000 2950
RDO-110A/W12.1-20.611.6-19.511.1-18.8110 71±3DN653000*1990*21802800*1900*19903500 3550
RDO-132A/W14.7-24.813.6-23.011.5-19.5132 73±3DN653000*1990*21802800*1900*19903550 3600
RDO-160A/W16.9-28.515.6-26.314.1-23.8160 73±3DN653000*1990*21802800*1900*19903650 3750
RDO-185A/W19.5-32.817.1-28.916.3-27.5185 74±3DN653000*1990*21802800*1900*19904100 4200
RDO-200A/W21.8-36.820.4-34.618.1-30.6200 74±3DN1004500*2000*21003100*2100*20655100 4500
RDO-220A/W24.9-41.522.4-37.319.8-33.0220 74±3DN1004500*2000*21003100*2100*20655600 5000
RDO-250A/W27.3-46.025.3-42.822.7-38.2250 74±3DN1004500*2000*21003100*2100*20655700 5200
RDO-280A/W31.6-48.630.9-47.529.3-45.0280 76±3DN1004500*2000*21003100*2100*20655800 5300
RDO-315A/W34.1-52.532.9-50.631.5-48.5315 77±3DN1004500*2000*21003100*2100*20656000 5400
RDO-355A/W45.5-65.041.3-59.036.5-52.235578±3DN150/5000*2400*2400/6250
RDO-400A/W52.8-75.446.9-67.041.2-58.940078±3DN150/5000*2400*2400/6300
RDO-450A/W55.0-78.554.1-77.346.6-66.545079±3DN150/5000*2400*2400/6800
RDO-500A/W60.3-86.259.7-85.354.6-78.050079±3DN150/5000*2400*2400/7200
RDO-560A/W//59.5-85.056079±3DN150/5000*2400*2400/7200
