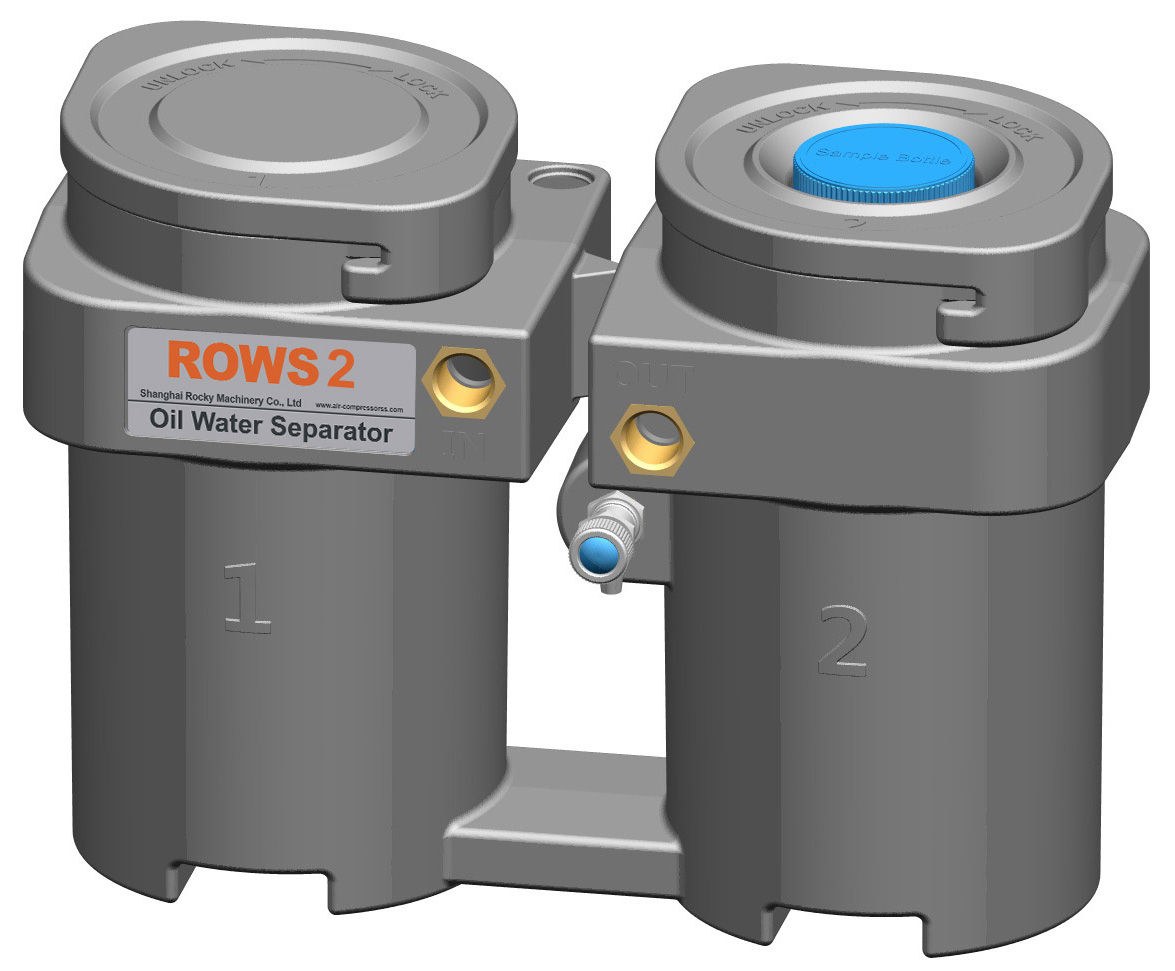

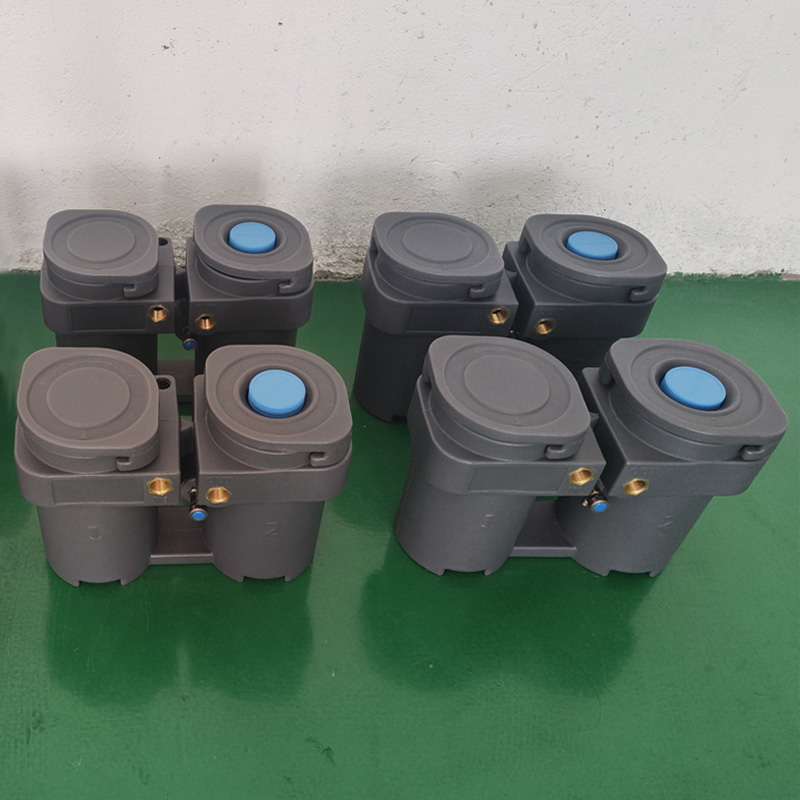

Automatic Industrial Oil-Water Separator for Compressed Air Condensate

Product feature

1. Environmental Compliance

The treated water contains less than 10 ppm of oil, meeting national environmental discharge standards (GB 8978).

2. Fully Automatic Operation: Zero Manual Intervention

Equipped with a built-in electronic liquid level controller or float switch, the system performs automatic drainage and

separation—requiring no manual operation—thereby reducing labor costs.

3. Three-Stage Separation Technology: High Efficiency

Stage 1 (Settling): Large oil droplets are separated via gravity.

Stage 2 (Coalescence): Specialized coalescing filter elements aggregate tiny oil droplets into larger ones.

Stage 3 (Adsorption): An activated carbon filter provides deep purification, ensuring clear effluent.

4. Extremely Low Operating Costs

Featuring no moving parts and virtually zero energy consumption, the system requires only periodic filter element

replacement (typically every 6 to 12 months), making maintenance simple and hassle-free.

5. High Versatility: Easy Installation

Compatible with multiple drainage points, allowing connection to air compressors, refrigerated air dryers, air storage

tanks, and other equipment.
