Industrial Smoke Dust Collector and Fume Extractor for Welding & Laser Cutting

A smoke dust collector is a filtration device that captures airborne smoke, dust, fumes, and fine particles generated by industrial processes such as welding, grinding, laser cutting, or soldering, en

  • Working Pressure:7~20[ bar ]101.5~290[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~355[ kw ]10~473[ hp ]

Product Details


Product features

  • High efficiency – Removes up to 99.97% of fine particles (HEPA/activated carbon).

  • Health protection – Reduces respiratory risks and keeps workspaces safe.

  • Versatile use – Ideal for welding, soldering, grinding, laser engraving, and woodworking.

  • Portable & compact – Easy to move and fit into different workstations.

  • Low maintenance – Long-lasting filters with simple cleaning or replacement.

  • Quiet operation – Minimizes noise disruption in workshops or factories.

Technical Parameters

Dust Colllector Technical Parameters

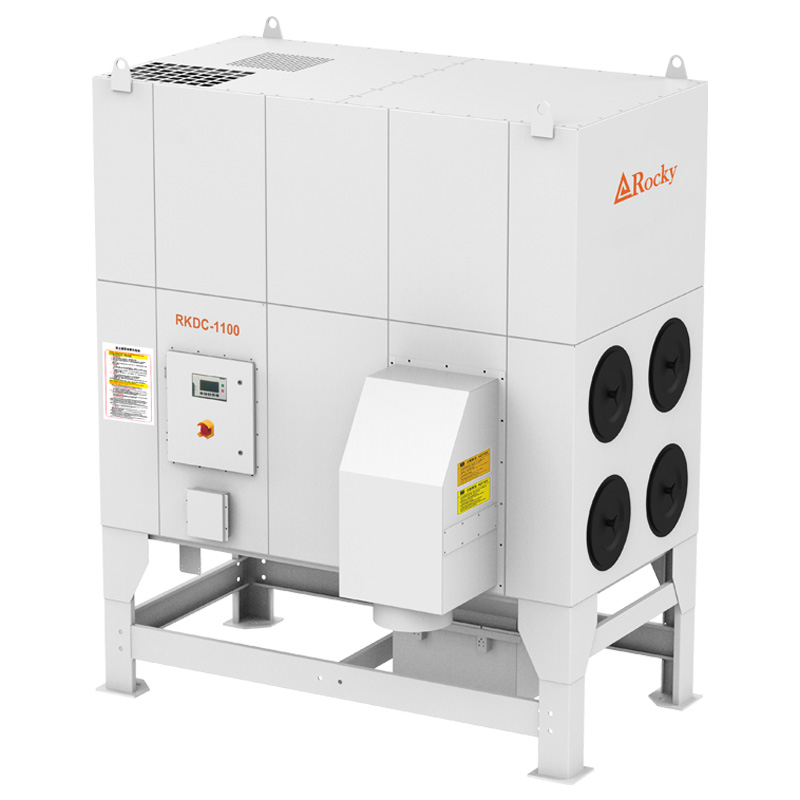

ModelRKDC-300RKDC-550RKDC-750RKDC-1100RKDC-1500RKDC-1850RKDC-2200
Motor Power (kW)35.57.5111518.522
Power Supply (V/Hz)380/50
Max. Airflow (m3/h)29004500720010000120001600020000
Max. Total Pressure (Pa)2000200025002800///
Filter MaterialNano Flame-Retardant Composite Fiber
Filter Mounting TypeRotary Locking Mechanism
Filtration PrincipleNegative-Pressure Back-Flush Design
Reverse Pulse Air Requirement (MPa)0.6 Oil-free and water-free compressed air0.7~0.8 Oil-free and water-free compressed air0.6~0.8 Oil-free and water-free compressed air
Number of Filter Cartridges2468121824
Filtration Area (m2)4692138184276414552
Filtration Accuracy (Um)0.3~3.0
Inlet Diameter (mm)250250300300300550600
Weight (kg)420520620790112017001900
Dimensions (L*W*H) mm1800*622*17451431*1405*21881504*1431*26882105*1605*25832105*1952*25832215*1516*25832215*1516*3750
