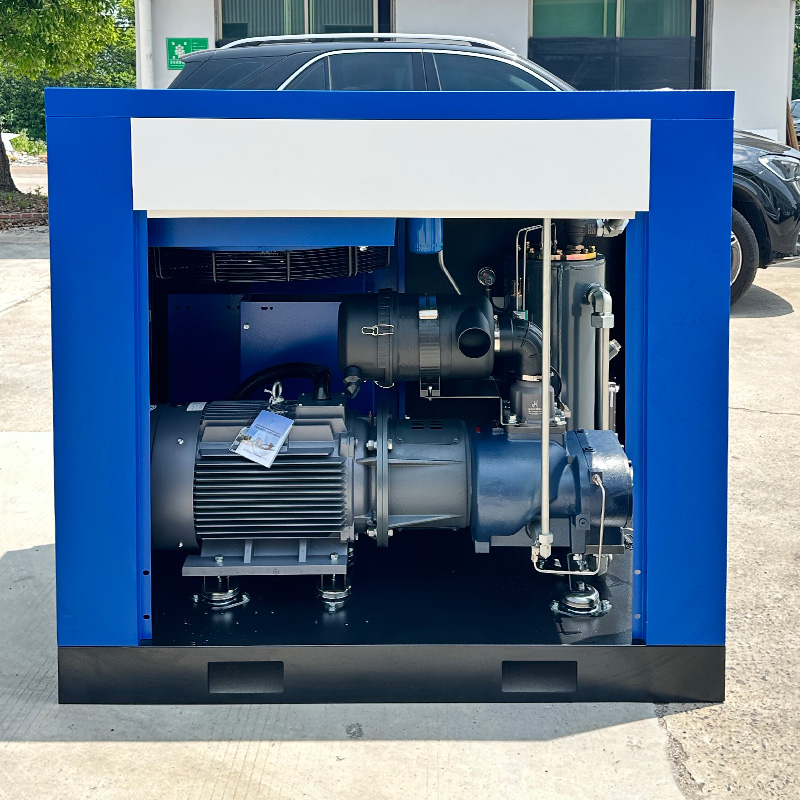

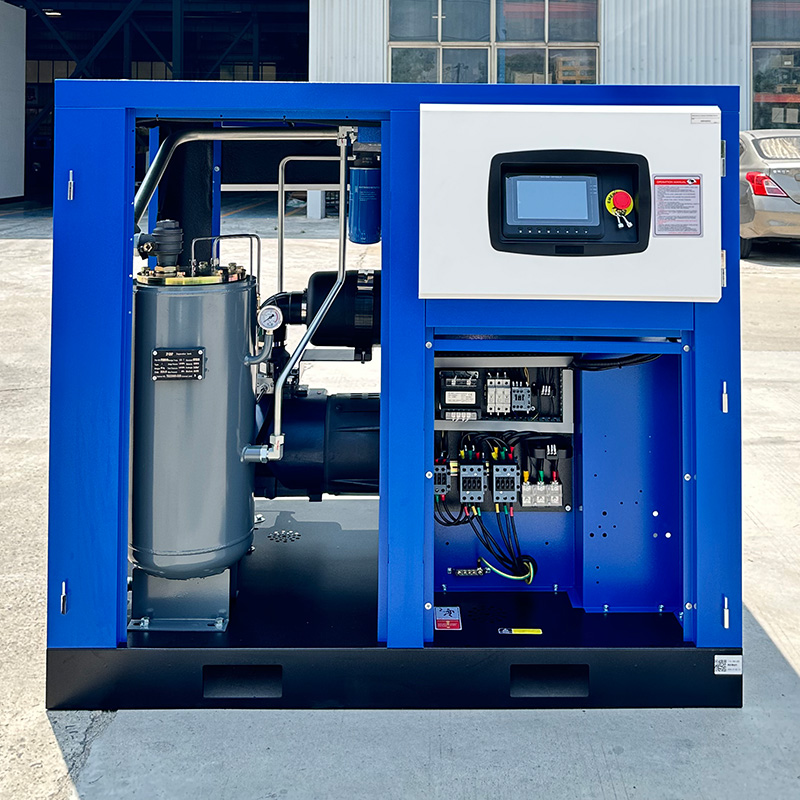

Factory Direct 37kW 50HP Fixed-Speed Screw Air Compressor – Industrial-Grade Low Noise Air Compressor

A 37kW 50HP fixed-speed screw air compressor (also known as a constant-speed or on‑off screw compressor) refers to a screw-type air compressor in which the motor runs at a fixed speed and is controlle

  • Working Pressure:7~13[ bar ]102~189[ psig ]
  • Free Air Delivery:173~230[ cfm ]4.9~6.5[ m3/min ]
  • Working Power:37[ kw ]50[ hp ]

Product Details

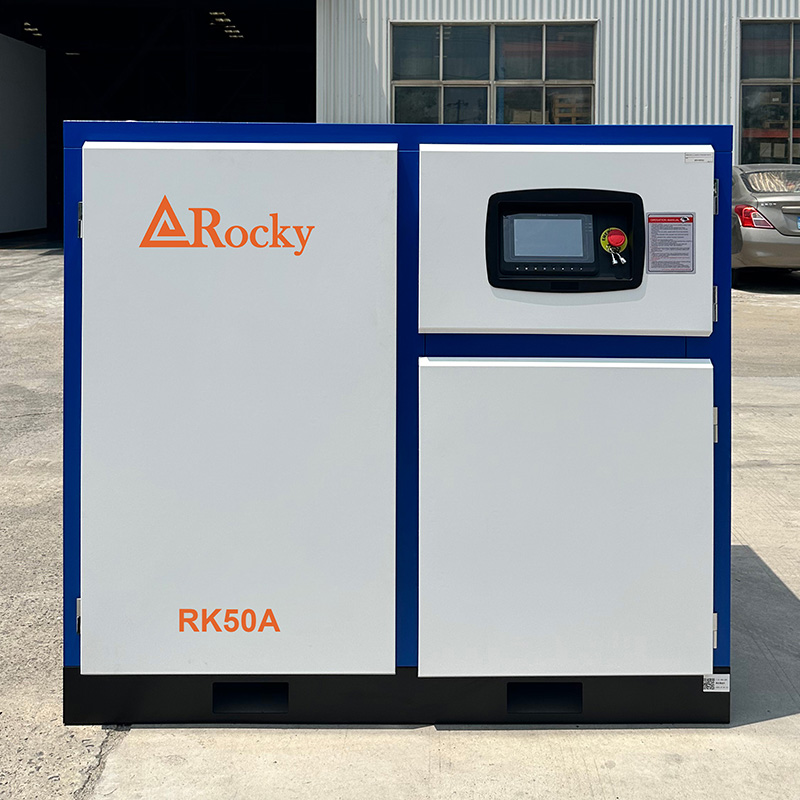

RK50A (5).jpg

Product features

1. Lower purchase cost – save on initial investment
Fixed-speed screw compressors have a simple design, no VFD or costly electrical components. Initial cost is 30%+ lower than VFD models – ideal for budget‑conscious users.

2. Lower maintenance cost – save money and effort
Simple structure, fewer parts, low failure rate. Easy to service – in‑house electricians can handle daily maintenance; no need for specialized engineers. Long‑term maintenance costs significantly lower than VFD units.

3. 24/7 continuous operation – rugged and durable
Constant‑speed design, built for heavy‑duty continuous running. No sensitive VFD components, no risk of overheating or speed reduction. Perfect for production lines that need uninterrupted air supply.

4. Low failure rate – stable and reliable
VFD controls are sensitive to temperature, humidity and dust. Fixed‑speed units are simple and highly adaptable to harsh environments, resulting in much lower failure rates. High‑precision screw rotors + efficient gear drive deliver superior reliability.

5. IE4 super premium motor – energy efficiency guaranteed
The 37kW model can be equipped with an IE4 super premium motor, IP54 rated – dustproof and waterproof. With advanced SAP rotor profile, it meets GB1 energy efficiency standard.

6. Oversized cooling system – no heat shutdown
Larger than industry standard cooler + intelligent thermal control ensures stable operation even in high‑temperature summer conditions – eliminates overheating shutdowns.

7. Fast response – instant air on startup
Direct start to rated working condition – no VFD soft start delay. Responds quickly to production line air demand.

Technical Parameters

Direct Driven Screw Air Compressor
     ModelAir Delivery (m3/min)Power
(kW/hp)
Noise
dB(A)
Outlet
diameter
Dimensions (mm)
Weight
(kg)
7 bar8 bar10 bar13 barL * W * H
     RK10A1.3 1.2 1.0 0.7 7.5/1063 G3/4700*600*860180
     RK15A1.8 1.7 1.6 1.0 11/1565 G3/41000*750*1070300
     RK20A2.4 2.3 2.0 1.6 15/2065 G3/41000*750*1070320
     RK30A3.7 3.6 3.2 2.8 22/3068 G11350*850*1120430
     RK40A5.2 5.0 3.9 3.4 30/4068 G11350*800*1110460
     RK50A6.5 6.2 5.6 4.9 37/5069 G1 1/21500*1000*1350650
     RK60A8.0 7.3 6.0 5.9 45/6070 G1 1/21500*1000*1350730
     RK75A10.1 9.5 8.7 7.3 55/7570 G21700*1220*1550950
     RK100A13.6 12.8 11.3 9.2 75/10072 G21700*1200*15501050
     RK125A16.1 15.5 13.6 12.5 90/12572 G22100*1400*16501420
     RK150A21.2 19.6 17.8 15.5 110/15072 DN652500*1650*19002200
     RK175A24.1 23.2 19.5 17.8 132/17572 DN652500*1650*19002400
     RK220A28.8 27.8 23.0 20.0 160/22072 DN803000*1900*19503650
     RK250A32.5 31.2 27.5 25.8 185/25072 DN803000*1900*19503950
     RK275A34.5 34.0 30.5 28.0 200/27576 DN803000*1900*19504200
     RK300A36.8 35.0 32.0 30.0 220/30076 DN1003600*2200*22004600
     RK350A43.0 41.5 38.0 34.9 250/35076 DN1003600*2200*22005900
     RK375A51.3 50.6 46.0 41.5 280/37582 DN1003600*2200*22006000
     RK420A56.8 55.9 50.1 42.0 315/42082 DN1254600*2300*24307800
     RK420W56.8 55.9 50.1 42.0 315/42082 DN1254200*2300*24307500
     RK475A66.1 65.4 55.1 46.0 355/47585 DN1254600*2300*24308200
     RK475W66.1 65.4 55.1 46.0 355/47582 DN1254200*2300*24307900
