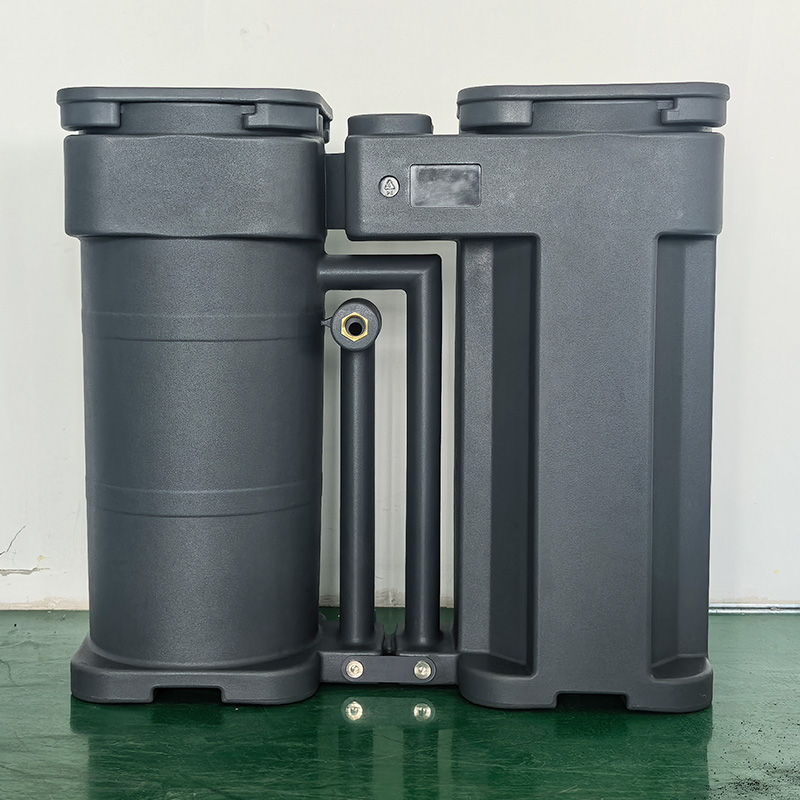

Industrial Grade High Efficiency Air Compressor Oil Water Separator

Oil-water separator is a device that removes oil from water (or vice versa) using density difference, coalescence, or filtration. In industrial air systems, it separates compressor lubricating oil fro

  • Working Pressure:7~20[ bar ]101.5~290[ psig ]
  • Free Air Delivery:176.5~2118[ cfm ]5~60[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

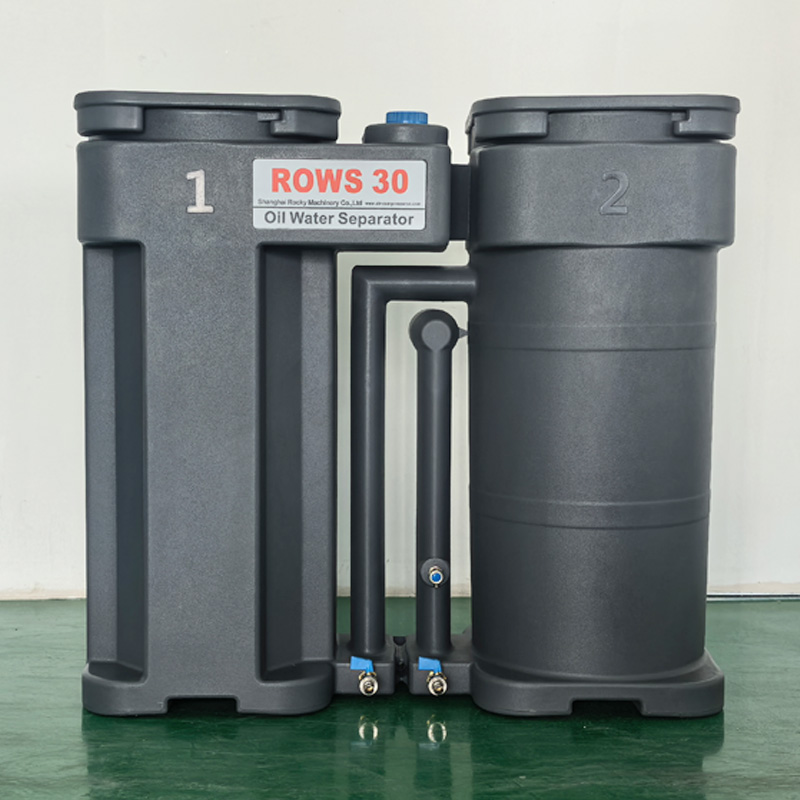

ROWS30 (4).jpg

Product feature


1. High separation efficiency – Removes up to 99.9% of oil from condensate

2. Environmental compliance – Meets discharge regulations

3. Low maintenance – Long service life with minimal downtime

4. Energy saving – Low pressure drop

5. Compact design – Easy to install in tight spaces

6. Cost effective – Reduces waste disposal and oil consumption

Technical Parameters

ModelROWS2ROWS5ROWS10ROWS20ROWS30ROWS60

Max. compressor

capacity (Based on a 8 hour shift)

(m3/min)

2 5   10 20 30 60
Max. oil absorption1.96 L4.9 L9.8 L14.6 L24.6 L49.2 L
Inlet  1 * G1/2"2 * G1/2"  2 * G1/2"2 * G1/2"2 * G1/2"2 * G1/2"
OutletG1/2"G 1"G 1"G 1"G 1"G 1"
Test valveYes
Sample bottleYes
Service drain valvesNo
Yes
Element indicatorNoYes
Overflow indicatorNoYes
Oil content<10 PPM<10 PPM<10 PPM<10 PPM<10 PPM<10 PPM
Material of housingPEPEPEPEPEPE
Dimensions
(mm)		375*155*265555*195*610655*245*750785*310*900975*385*9001155*475*1045
N.W.( kg)3.51120304785
