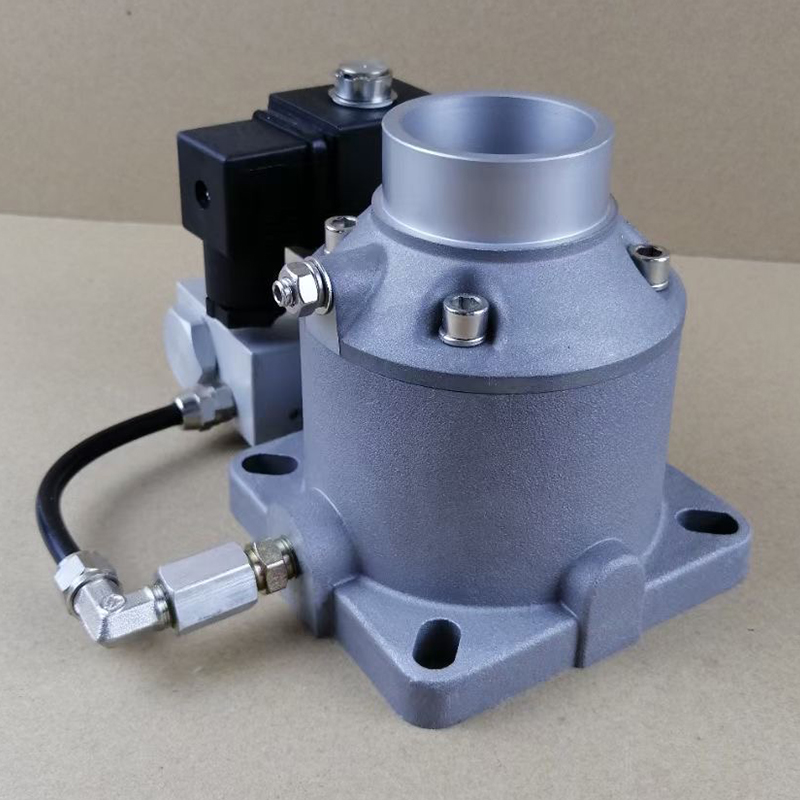

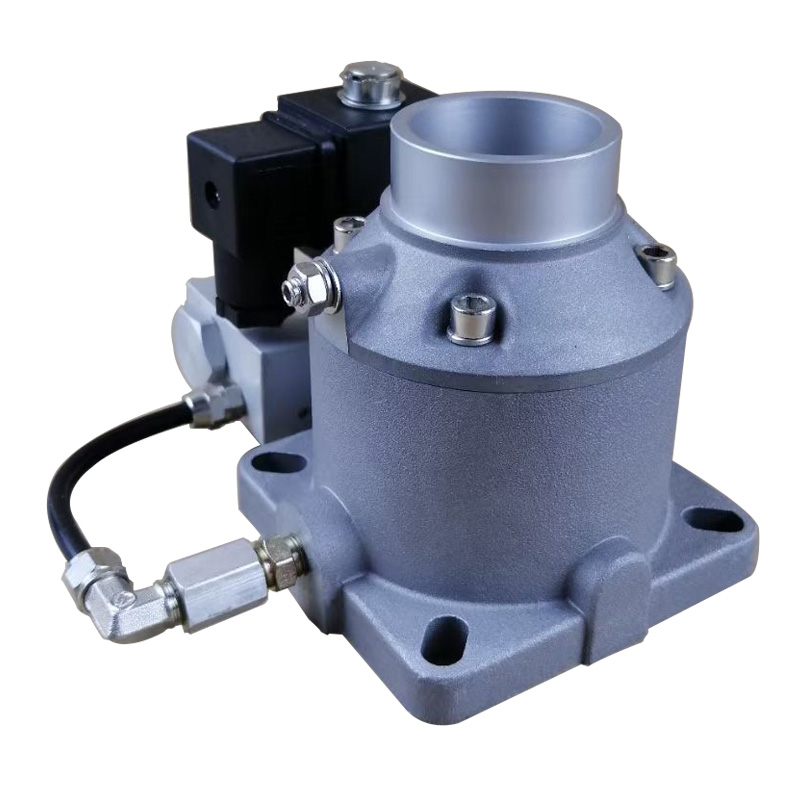

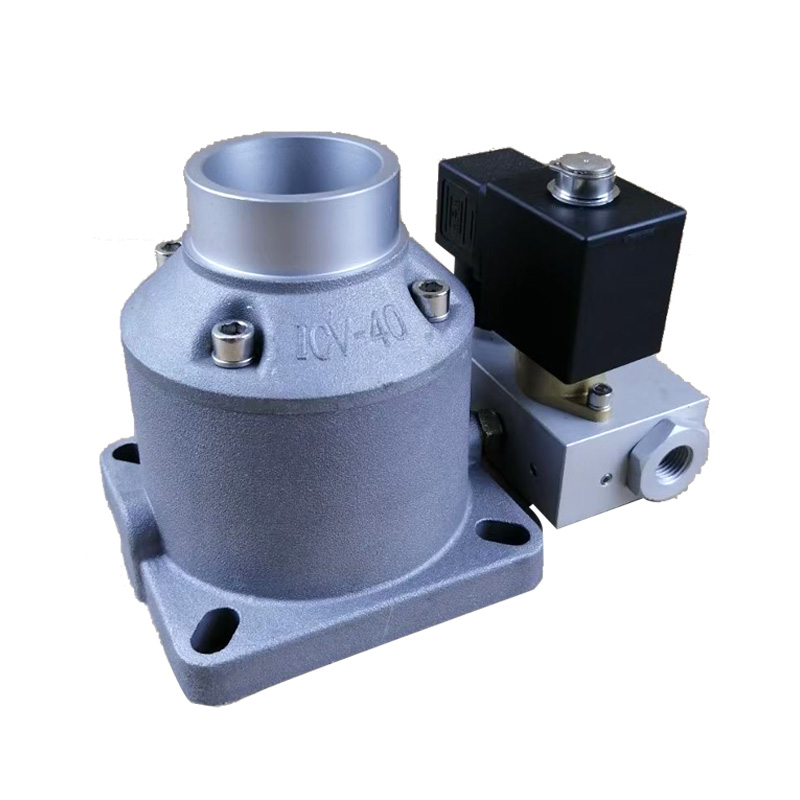

2.5 m³/min 40mm Elbow Type Air Inlet Valve ICV-40 Intake Control Valve Loading/Unloading Replacement Part

The ICV-40 is a compact elbow-type intake valve for screw air compressors (2.5 m³/min, up to 15 bar, 40 mm bore). Made of aluminum alloy, it offers three control options (Check/Modulation/On/Off), opt

  • Working Pressure:7~20[ bar ]101.5~290[ psig ]
  • Free Air Delivery:70.6[ cfm ]2[ m3/min ]
  • Working Power:7.5~11[ kw ]10~15[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details


Product features

  1. Optimized 2–2.5 m³/min flow – Ideal for 15–22 kW screw compressors, prevents over-sizing.

  2. Pressure rating up to 15 bar – Reliable for standard industrial systems.

  3. Three control modes – Check (non-return), Capacity Modulation (stepless energy saving), On/Off (basic load/unload).

  4. Adjustable unloaded pressure – Fine-tune receiver pressure to reduce energy waste.

  5. Aluminum alloy housing – Lightweight, corrosion-resistant, durable.

  6. Optional premium solenoids – ODE, Burkert, Lefoo, or Best for flexible quality/cost choices.

  7. Standard dimensions – Flange: 4-Φ9 × Φ104–Φ116; Intake port OD: 48 mm for easy replacement

Technical Parameters

Nominal bore: 40 mm
Operating pressure: ≤15 bar
Recommended maximum flow rate: approx. 2.5 m³/min (2500 L/min)
Flange holes: 4-Φ9 × Φ104～Φ116
Intake port outer diameter: 48 mm
Control system: ① Check System, ② Capacity Modulation System, ③ On/Off System
Solenoid valve (optional): ODE / Burkert / Lefoo / Best
Regulation function: Adjustable air receiver pressure during unloaded operation
Housing material: Aluminum alloy (Aluminum)
