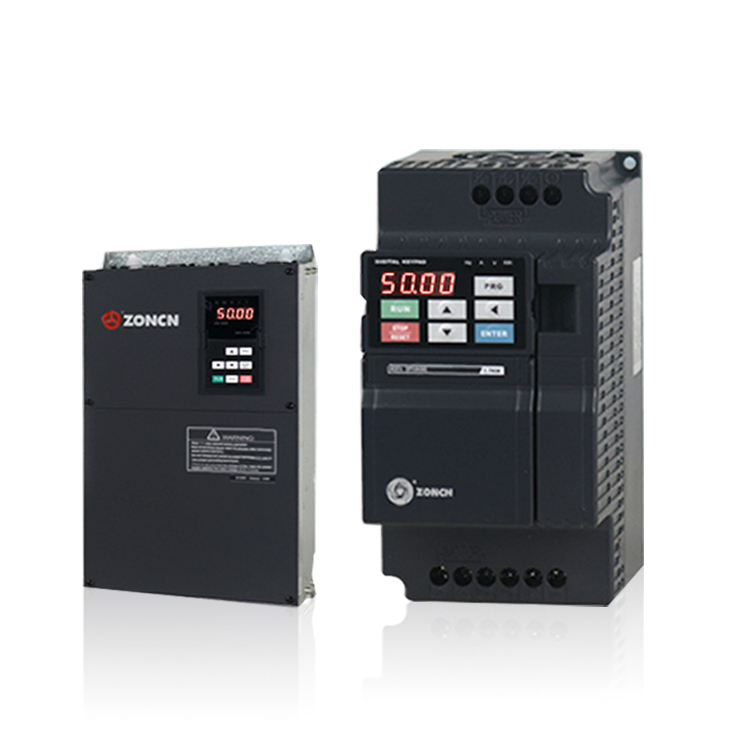

Zoncn Z2400-250G/280P VFD Air Compressor Energy-Saving Inverter 380V 3-Phase

The ZONCN Z2400-250G/280P is an industrial-grade three-phase 380V variable frequency drive (VFD) from the ZONCN Z2400 series, specifically designed for air compressor energy-saving retrofit.

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:293~1377[ cfm ]8.3~39[ m3/min ]
  • Working Power:250[ kw ]350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

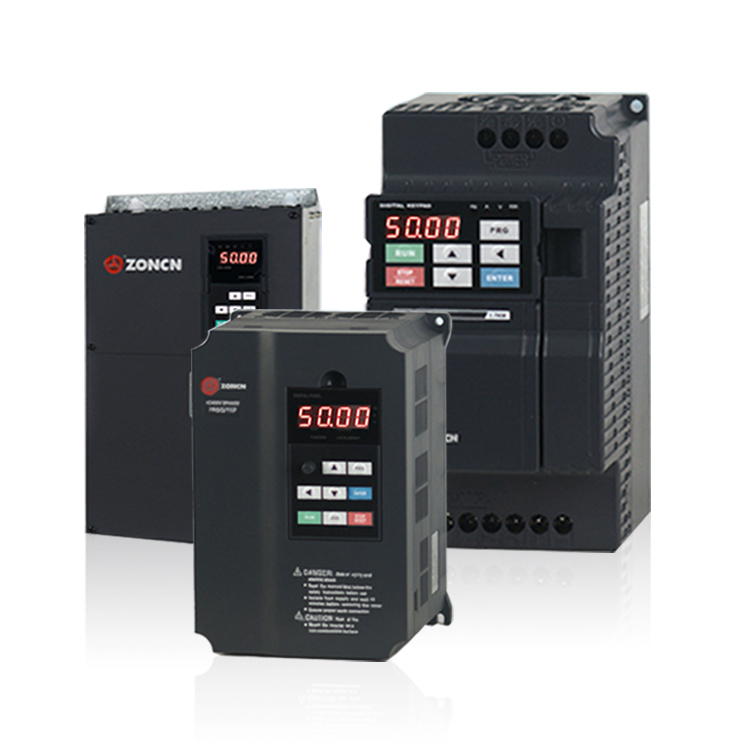

Zoncn (41).jpg

Product Features

• Original ZONCN model Z2400-250G/280P , power class 220kW (G) / 250kW (P)

• Dual control modes: V/F control and sensorless vector control (SVC)

• SVC output frequency range: 0.1-320Hz; V/F mode: 0.1-3200Hz

• Starting torque: 150% rated torque at 0.5Hz (G-type heavy-duty)

• Overload capacity: 150% of rated current for 60 seconds; 180% for 3 seconds (G-type)

• Excellent speed regulation accuracy with fast dynamic response to load changes


Technical Parameters

ParameterSpecification
ModelZoncn Z2400-250G/280P
Power250 kW (G-Type) / 280 kW (P-Type)
Input Voltage3-phase, 380 V ±15%
Output Current470 A (G) / 520 A (P)
Overload CapacityG: 150% 60s, 180% 3s
P: 120% 60s, 150% 3s
Control ModeV/F, open-loop vector (SFVC)
Output Frequency0–320 Hz (vector); 0–3200 Hz (V/F)
Starting Torque150% at 0.5 Hz (G-Type)
ProtectionOvercurrent, overvoltage, overload, overheat, phase loss
CommunicationRS485, Modbus
Dimensions (W×H×D)330 × 1595 × 200 mm
Enclosure RatingIP20
CertificationCE
ApplicationsAir compressors, fans, pumps, textile, CNC, injection molding
