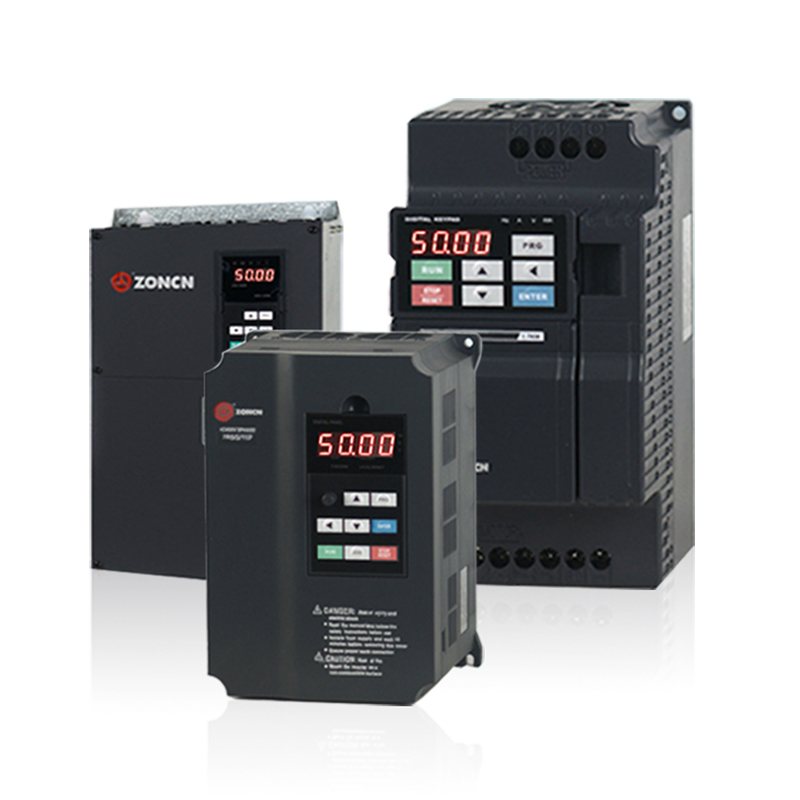

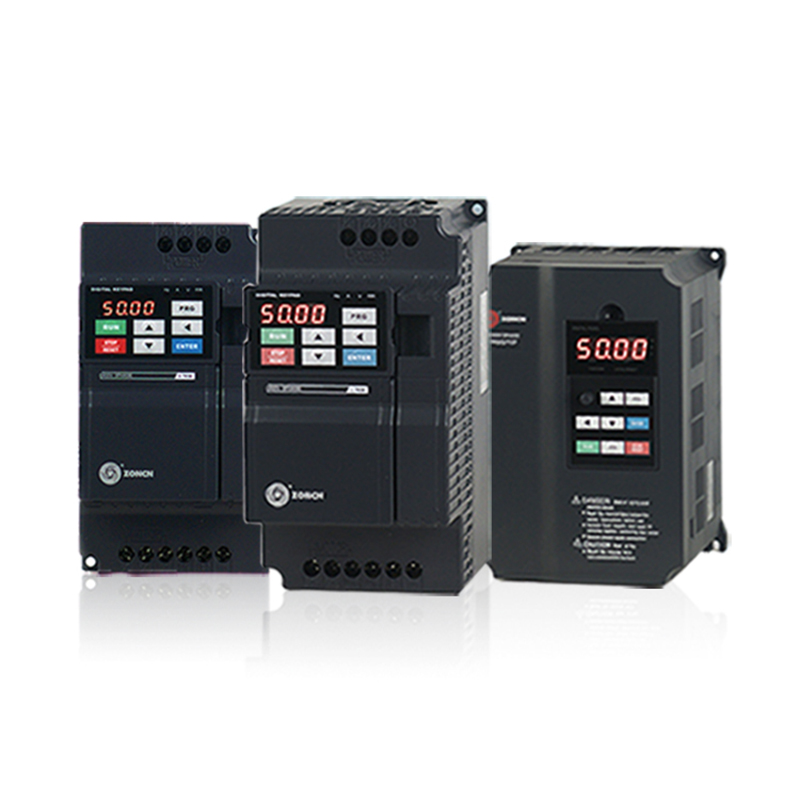

The ZONCN Z2400-37G/45P is a high-performance three-phase 380V vector variable frequency drive (VFD) engineered for industrial motor speed regulation and energy-saving operation.
Core Advantages
Dual Power Rating — One Drive, Two Applications
Z2400-37G/45P combines 37kW (G-type, constant torque: conveyors, mixers, machine tools) and 45kW (P-type, variable torque: fans, pumps) in one unit. Cuts procurement cost and simplifies inventory.
High-Precision Vector Control
SFVC delivers 150% torque at 0.5Hz, ±0.5% speed accuracy and 1:100 speed ratio — eliminating low-speed jitter and power shortage.
Intelligent Energy Saving
Auto-adjusts output to real-time load, reducing energy consumption by 20%–40%. Ideal for continuous industrial duty where electricity cost matters most.
Wide Voltage Adaptability
3-phase 380V input with ±15% fluctuation tolerance. Stable operation even under unstable grid conditions worldwide.
Robust Industrial Design
AVR keeps output voltage constant; auto stall control and rapid current limit prevent tripping and over-current faults; DC braking (0.0Hz to max frequency, 0.0–100.0s) extends drive lifespan.
Flexible Control Functions
16 preset speeds, onboard PID, 4 groups of accel/decel (0.0–6500.0s, linear/S-curve), multi-point & N-power V/F curves with complete/half separation.
For technical support or inquiries, please leave your contact information.
