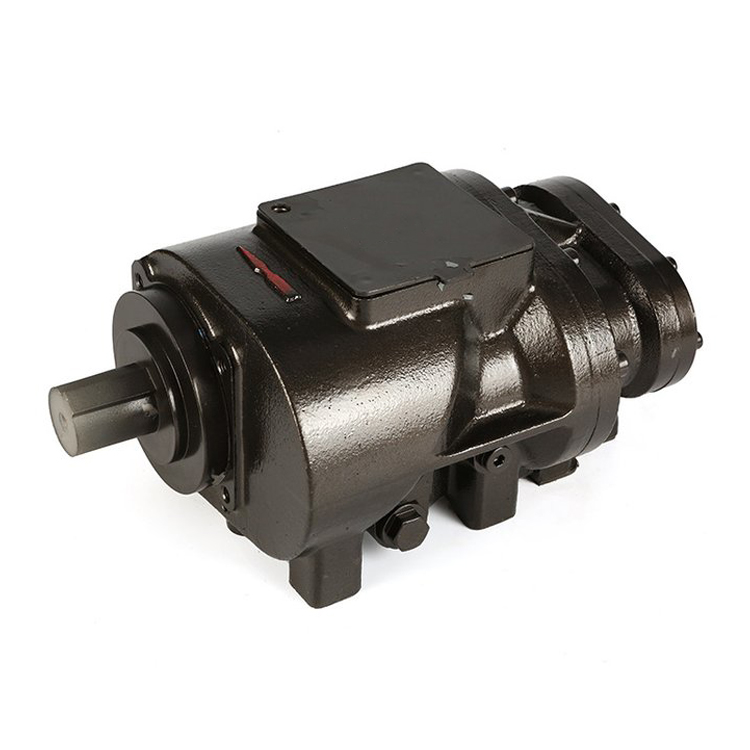

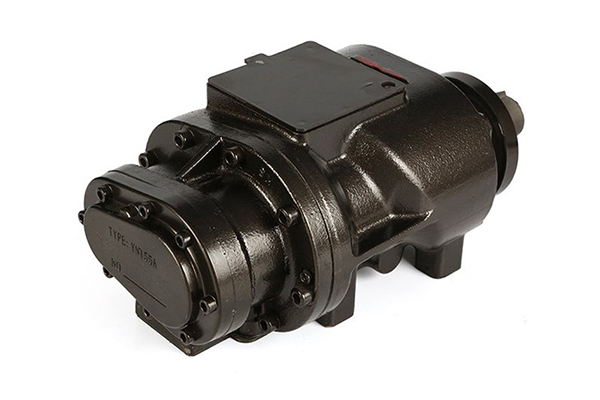

7.5kW Screw Air Compressor Baosi Airend YNT55A Screw Compressor Head

The single-stage air screw host is YNT55A, and the whole series of rotors are processed by KAPP grinder imported from Germany, with high precision and high efficiency.

  • Working Pressure:7~10[ bar ]101.5~145[ psig ]
  • Free Air Delivery:15.8~40.6[ cfm ]0.48~1.15[ m3/min ]
  • Working Power:7.5[ kw ]10[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Model: YNT55A

Atmospheric humidity: 80%R. H.

Inlet pressure: latm

Inlet temperature: 30°C

Exhaust temperature: 85°C

Inlet oil temperature: 60°C


Product feature

1. The whole series of rotors are processed by KAPP grinding machine imported from Germany, with high precision and high efficiency.

2. It can be driven by belt or directly connected, and the application is flexible and convenient.

3. The optimized design of the host structure makes the overall structure more compact and beautiful.



Technical Parameters

Model Pressure(MPa) /Shaft power (kW)0.70.811.251.5
YNT55A8.25Rotating speed(rpm)38003500295024502000
Displacement(m3/min)1.151.060.850.70.48
Fuel injection quantity(L/min)11.211.411.712.012.3
Fuel consumption (kW)6.6
11.8Rotating speed(rpm)54004950415035002860
Displacement(m3/min)1.651.531.2310.68
Fuel injection quantity(L/min)16.016.216.717.117.7
Fuel consumption (kW)9.4
16Rotating speed(rpm)69006350540045003800
Displacemen(m3/min)2.0921.621.31
Fuel injection quantity(L/min)22.022.122.823.323.8
Fuel consumption(kW)12.8
