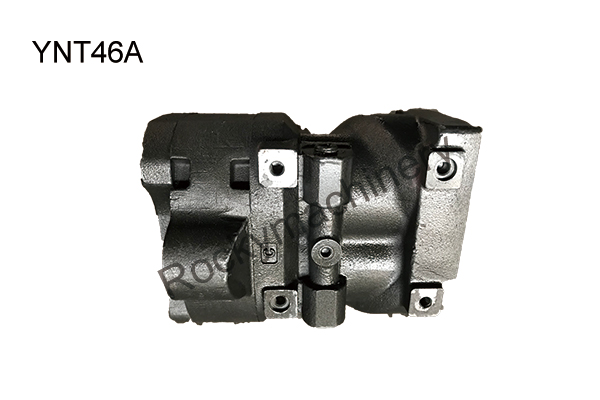

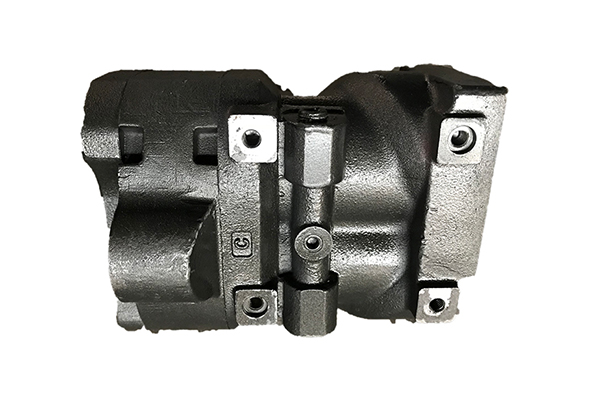

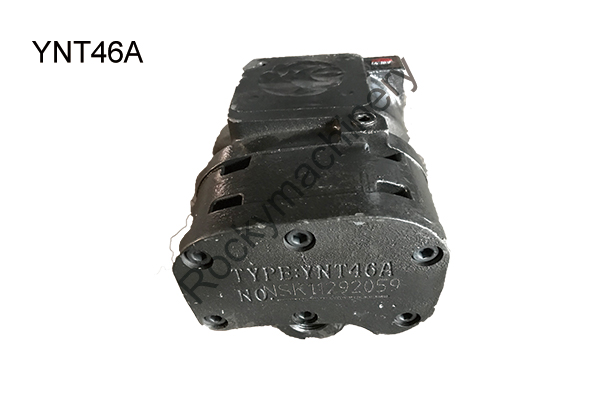

7~15bar 5.5kW Air Compressor Head Baosi Air End YNT46A

  • Working Pressure:7~15[ bar ]101.5~217.5[ psig ]
  • Free Air Delivery:26.8[ cfm ]0.76[ m3/min ]
  • Working Power:5.5[ kw ]7.5[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Model: YNT46A

Atmospheric humidity: 80%R. H.

Inlet pressure: latm

Inlet temperature: 30°C

Exhaust temperature: 85°C

Inlet oil temperature: 60°C




Technical Parameters

ModelPower(kW)Connection methodDimension（mm）Weight（kg)
YNT55A7.5KWdirect drive288*170*13725
YNT60A7.5KWdirect drive300*200*16525
YNT70A11KWdirect drive348*209*17030
YNT70B15KWdirect drive398*220*17535
YNT80A18.5KWdirect drive414*237*208
YNE117RA22KWdirect drive398*260*21051
YNE133RA30KWdirect drive473*302*24281
YNE143RA37KWdirect drive435*332*255100
YNE143RB45KWdirect drive517*332*255110
YNE163RA55KWdirect drive572*370*285140
YNE163RA55KWdirect drive572*370*285140
YNE178RA75KWdirect drive587*404*322175
YNE178RB90KWdirect drive667*404*322195
YNE204RA110KWdirect drive398*203*340255
YNE204RB132KWdirect drive398*203*340280
