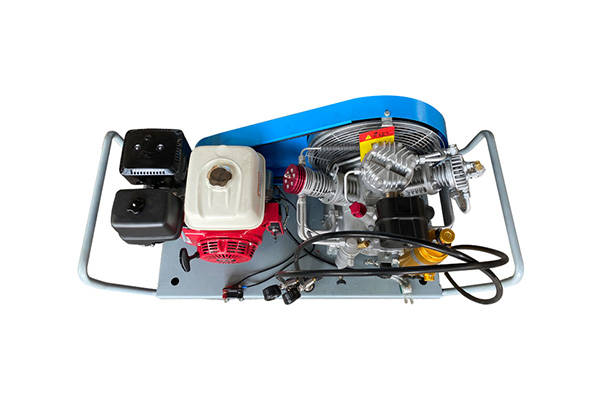

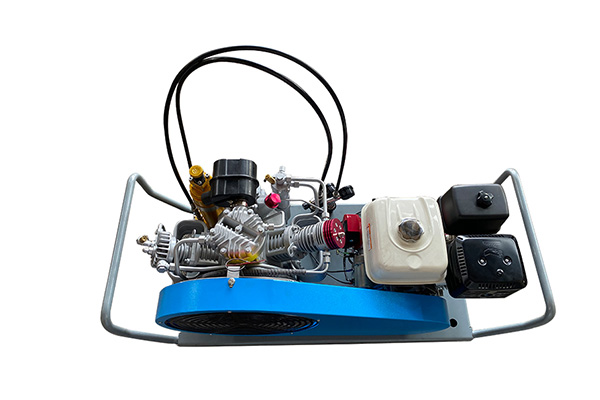

Gasoline Powered Diving/Fire/Paintball Breathing Air Compressor GDR-150P

High-pressure breathing air compressors are widely used in diving breathing, fire fighting, paintball shooting, mountaineering, aquaculture and other industries.

  • Working Pressure:225~330[ bar ]3262.5~4785[ psig ]
  • Free Air Delivery:7[ cfm ]0.2[ m3/min ]
  • Working Power:4[ kw ]5.3[ hp ]

Product Details

Gasoline Powered Diving/Fire/Paintball Breathing Air Compressor GDR-150P


Rocky GDR series high-pressure breathing compressors are sturdy, durable, small and flexible, and can be easily put into the tail compartment of a car. They are deeply loved by personnel in miniature fire stations, chemical industry, labor defense, and personal divers. Wide range of applications: sports diving, firefighting, marine, medical engineering, shooting, racing, etc.


Product specification

● With power cord and motor protection switch
● Button with start and stop
● The oil-water separator and filter adopt the integrated design of aluminum alloy
● Metal frame structure with plastic coating
● Final safety valve provides overpressure protection
● Stainless steel and aluminum alloy condenser tube
● Activated carbon molecular sieve filter
● Condensate drain valve

Technical Parameters

ModelFree air deliveryInlet pressureWroking pressureDrivenPower (kW)Dimensions (L*W*H)Weight(kg)
GDR-100E100L/min 3.5cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor2.2 kw700*380*420mm46
GDR-100P100L/min 3.5cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine4.2kw770*420*420mm44
GDR-150E150L/min 5.2cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor3 kw660*400*420mm52
GDR-150P150L/min 5.2cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine5kW790*420*420mm74
GDR-200E200L/min 7.06cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor4kw1100*550*570mm95
GDR-200P200L/min 7.06cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine4kw1100*550*570mm102
GDR-265E265L/min 9.35cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor5.5kw1250*590*630mm120
GDR-265P265L/min 9.35cfmAtmosphereDive 225 Bar Firefighting 330 BarSUBARU/HONDA 4 strokes gasoline engine5.5kw1250*590*630mm135
GDR-400E400L/min 14.1cfmAtmosphereDive 225 Bar Firefighting 330 BarElectric motor7.5kW1300*640*740mm138
