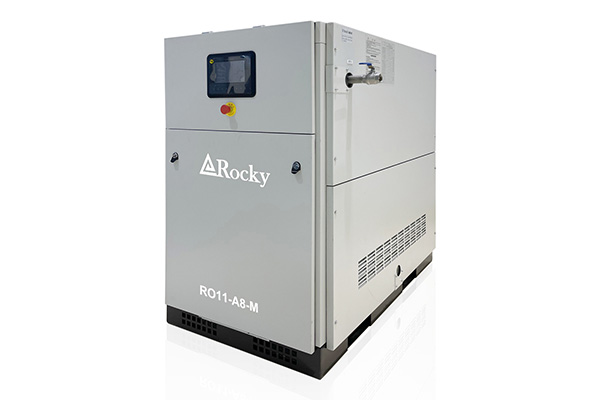

Silent Oil Free Scroll Type Electric Air Compressor RO-11A For Medical

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is

  • Working Pressure:8~10[ bar ]116~145[ psig ]
  • Free Air Delivery:38.8~42.4[ cfm ]1.1~1.2[ m3/min ]
  • Working Power:11[ kw ]15[ hp ]

Product Details

Oil-free scroll compressor product description

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is known as "maintenance-free aircompressor" and is an ideal model for air compressorsbelow 50HP.


Oil-free Scroll air compressor Advantages


Fully Oil-free

Class 0 oil-free is certified by GermanTUV organization.

Low Vibration

The high-pressure area aroundthe axis is evenly distributedwithout eccentricity, good balanceand well controlled vibration.


Super Silent

Reasonable vibration and noisereduction design, smooth outputairflow without fluctuation, lownoise and low vibration.

Intelligent and Reliable

Multi-stage scroll air-ends,automatically controls the scrollunits according to the air demand.Failed air-end doesn't affect to thesystem as all units are controlled independently.

Technical Parameters

ModelAir Delivery(m3/min)Power
(kW)
Air-endAir tankNoise
dB(A)
Outlet
diameter
Dimension (mm)  Weight
    (Kg)
8bar10barPower*QtyLitersL * W * H
RO-2.2AT0.24 0.22 2.22.2*14055G1/2700*500*1220160
RO-3.7AT0.40 0.34 3.73.7*14055G1/2700*500*1220170
RO-2.2A0.24 0.22 2.22.2*1/55G1/2650*500*870125
RO-3.7A0.40 0.34 3.73.7*1/55G1/2650*500*870135
RO-5.5A0.60 0.55 5.55.5*1/55G1/2790*640*1050190
RO-7.5A0.80 0.68 7.43.7*2/60G1/2980*675*1270350
RO-11A1.20 1.10 115.5*2/60G3/4852*1274*1330450
RO-15A1.60 1.36 14.83.7*4/63G1 1/21565*1274*1330700
RO-16.5A1.80 1.65 16.55.5*3/63G1 1/21565*1274*1330710
RO-22A2.40 2.20 225.5*4/63G1 1/21565*1274*1330730
RO-33A3.60 3.30 335.5*6/65G1 1/21565*1274*17751020
RO-44A4.80 4.40 445.5*8/68G1 1/21565*1274*17751250
