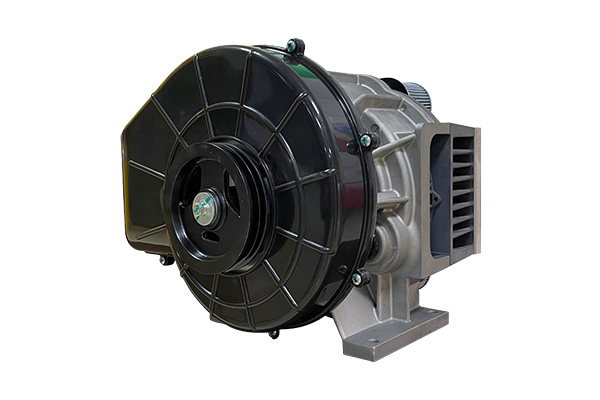

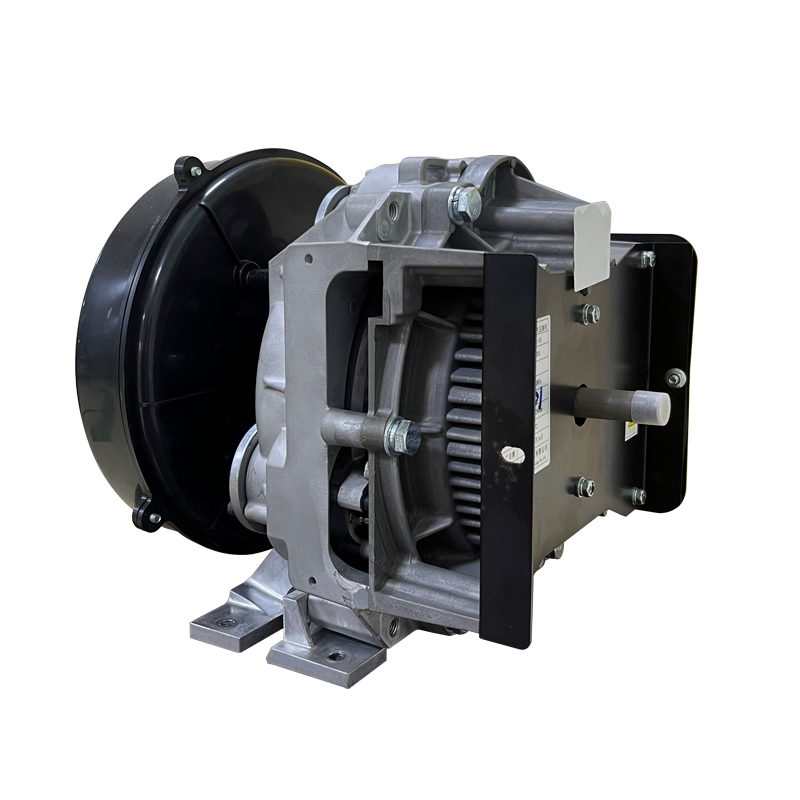

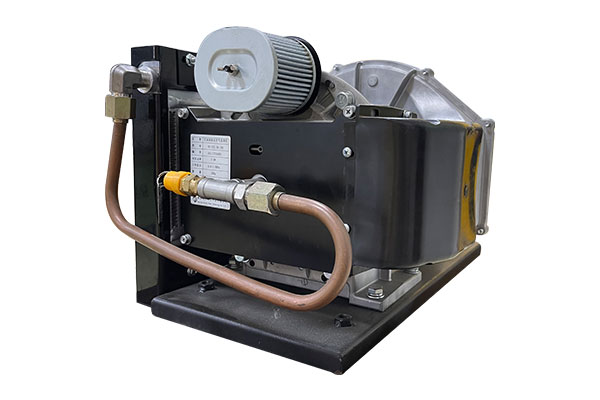

5.5kW 8 Bar Scroll Air Compressor Air end/Pump RK-JP3.7B-8

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is

  • Working Pressure:8~10[ bar ]116~145[ psig ]
  • Free Air Delivery:7.8~169[ cfm ]0.22~4.8[ m3/min ]
  • Working Power:2.2~44[ kw ]3~60[ hp ]

Product Details

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is known as "maintenance-free aircompressor" and is an ideal model for air compressorsbelow 50HP.



Oil-free Scroll air compressor Advantages


● Fully Oil-free

Class 0 oil-free is certified by GermanTUV organization.

● Low Vibration

The high-pressure area aroundthe axis is evenly distributedwithout eccentricity, good balanceand well controlled vibration.

● Super Silent

Reasonable vibration and noisereduction design, smooth outputairflow without fluctuation, lownoise and low vibration.

● Intelligent and Reliable

Multi-stage scroll air-ends,automatically controls the scrollunits according to the air demand.Failed air-end doesn't affect to thesystem as all units are controlled independently.

Technical Parameters

ModelPower
(kW)
Air Delivery (m3/min)Pressure
(bar)
Noise
dB(A)
Exhaust
Temperature
(°C)
Dimension
(mm)
Weight
(kg)
RK-JP1.5A-81.50.13865±3≤150230*238*23311.7
RK-JP2.2A-82.20.24 69±3≤150360*351*29014.5
RK-JP3.7B-83.70.40 70±3≤165362*345*29019.5
RK-JP5.5B-85.50.60 72±3≤165420*417*35324.5
