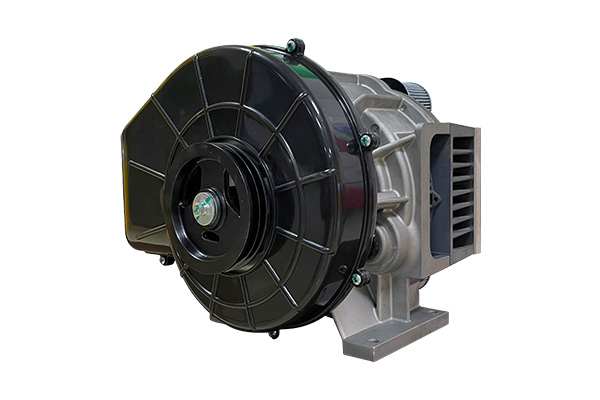

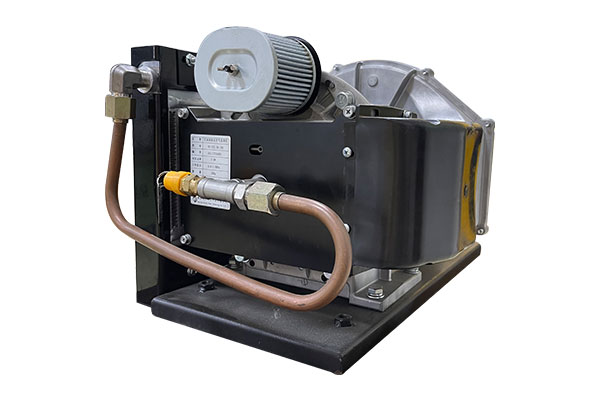

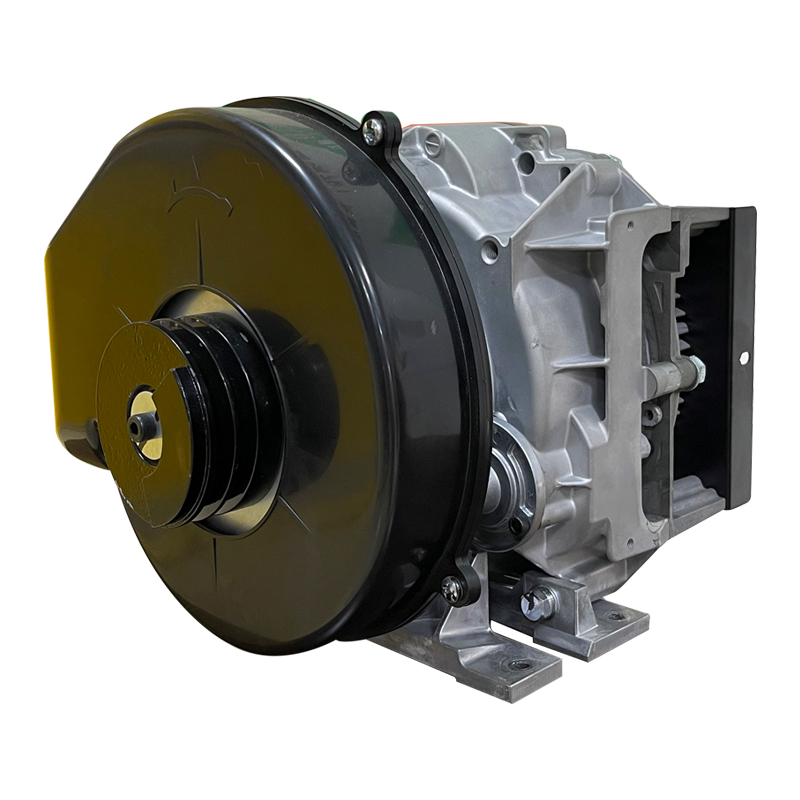

Automotive Scroll Compressor Pump Scroll Compressor Air End RK-JP2.2A-8

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is

  • Working Pressure:8~10[ bar ]116~148[ psig ]
  • Free Air Delivery:7.8~169[ cfm ]0.22~4.8[ m3/min ]
  • Working Power:2.2~44[ kw ]3~60[ hp ]

Product Details

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is known as "maintenance-free aircompressor" and is an ideal model for air compressorsbelow 50HP.



Oil-free Scroll air compressor Advantages


Fully Oil-free

Class 0 oil-free is certified by GermanTUV organization.

Low Vibration

The high-pressure area aroundthe axis is evenly distributedwithout eccentricity, good balanceand well controlled vibration.


Super Silent

Reasonable vibration and noisereduction design, smooth outputairflow without fluctuation, lownoise and low vibration.

Intelligent and Reliable

Multi-stage scroll air-ends,automatically controls the scrollunits according to the air demand.Failed air-end doesn't affect to thesystem as all units are controlledindependently.

Technical Parameters

ModelPower
(kW)
Air Delivery (m3/min)Pressure
(bar)
Noise
dB(A)
Exhaust
Temperature
(°C)
Dimension
(mm)
Weight
(kg)
RK-JP1.5A-81.50.13865±3≤150230*238*23311.7
RK-JP2.2A-82.20.24 69±3≤150360*351*29014.5
RK-JP3.7B-83.70.40 70±3≤165362*345*29019.5
RK-JP5.5B-85.50.60 72±3≤165420*417*35324.5
