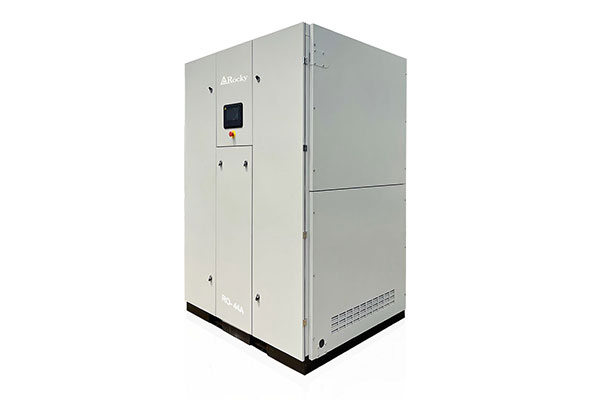

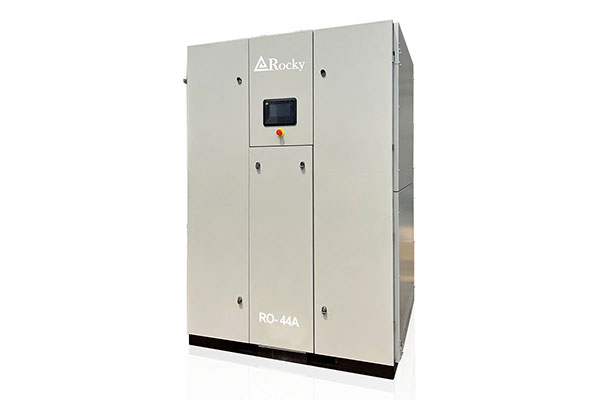

Electric Small Oil-free Scroll Type Air Compressor RO-44A

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is

  • Working Pressure:8~10[ bar ]116~145[ psig ]
  • Free Air Delivery:155~169[ cfm ]4.4~4.8[ m3/min ]
  • Working Power:44[ kw ]60[ hp ]

Product Details

Oil-free scroll air compressor product description

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is known as "maintenance-free aircompressor" and is an ideal model for air compressorsbelow 50HP.


Product feature

1. 100% oil-free

Can be used in any industry, especially suitable for users who have high requirements for compressed air oil content.

2. Quiet operation

The scroll air compressor operates with extremely low noise and a healthier working environment.

3. Easy installation

It occupies a small area and can be installed near the gas point, thereby reducing the installation of compressed air pipe network and effectively reducing the installation cost of the pipe network.

4. Simple maintenance

No need to replace or add lubricating oil, only a small amount of consumables need to be replaced regularly, and the maintenance cost is low.

5. Zero emission

Only condensate is discharged, no harmful substances are discharged, which is in line with sustainable development goals.

Technical Parameters

Model

Air Delivery(m3/min)

Power
(kW)

Air-end

Air tank

Noise
dB(A)

Outlet
diameter

Dimension (mm)

Weight
(Kg)

8bar

10bar

Power*Qty

Liters

L * W * H

RO-2.2AT

0.24

0.22

2.2

2.2*1

40

55

G1/2

700*500*1220

160

RO-3.7AT

0.40

0.34

3.7

3.7*1

40

55

G1/2

700*500*1220

170

RO-2.2A

0.24

0.22

2.2

2.2*1

/

55

G1/2

650*500*870

125

RO-3.7A

0.40

0.34

3.7

3.7*1

/

55

G1/2

650*500*870

135

RO-5.5A

0.60

0.55

5.5

5.5*1

/

55

G1/2

790*640*1050

190

RO-7.5A

0.80

0.68

7.4

3.7*2

/

60

G1/2

980*675*1270

350

RO-11A

1.20

1.10

11

5.5*2

/

60

G3/4

852*1274*1330

450

RO-15A

1.60

1.36

14.8

3.7*4

/

63

G1 1/2

1565*1274*1330

700

RO-16.5A

1.80

1.65

16.5

5.5*3

/

63

G1 1/2

1565*1274*1330

710

RO-22A

2.40

2.20

22

5.5*4

/

63

G1 1/2

1565*1274*1330

730

RO-33A

3.60

3.30

33

5.5*6

/

65

G1 1/2

1565*1274*1775

1020

RO-44A

4.80

4.40

44

5.5*8

/

68

G1 1/2

1565*1274*1775

1250
