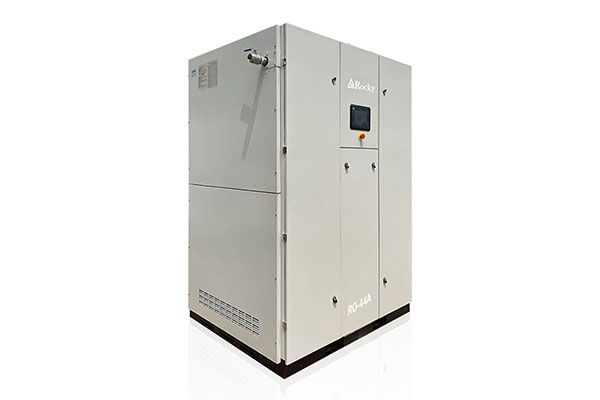

8bar 10bar 60HP Small Oil Free Scroll Screw Air Compressor RO-44A

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is

  • Working Pressure:8~10[ bar ]116!145[ psig ]
  • Free Air Delivery:155~169[ cfm ]4.4~4.8[ m3/min ]
  • Working Power:44[ kw ]60[ hp ]

Product Details

Oil-free scroll air compressor product description

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is known as "maintenance-free aircompressor" and is an ideal model for air compressorsbelow 50HP.


Oil-free Scroll air compressor Features


1. Fully Oil-free

Class 0 oil-free is certified by GermanTUV organization.

2. Low Vibration

The high-pressure area aroundthe axis is evenly distributedwithout eccentricity, good balanceand well controlled vibration.


3. Super Silent

Reasonable vibration and noisereduction design, smooth outputairflow without fluctuation, lownoise and low vibration.

4. Intelligent and Reliable

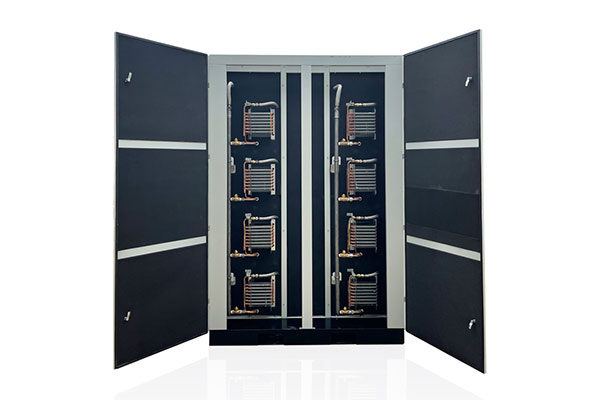

Multi-stage scroll air-ends,automatically controls the scrollunits according to the air demand.Failed air-end doesn't affect to thesystem as all units are controlledindependently.

Technical Parameters

Model

Air Delivery(m3/min)

Power
(kW)

Air-end

Air tank

Noise
dB(A)

Outlet
diameter

Dimension (mm)

Weight
(Kg)

8bar

10bar

Power*Qty

Liters

L * W * H

RO-2.2AT

0.24

0.22

2.2

2.2*1

40

55

G1/2

700*500*1220

160

RO-3.7AT

0.40

0.34

3.7

3.7*1

40

55

G1/2

700*500*1220

170

RO-2.2A

0.24

0.22

2.2

2.2*1

/

55

G1/2

650*500*870

125

RO-3.7A

0.40

0.34

3.7

3.7*1

/

55

G1/2

650*500*870

135

RO-5.5A

0.60

0.55

5.5

5.5*1

/

55

G1/2

790*640*1050

190

RO-7.5A

0.80

0.68

7.4

3.7*2

/

60

G1/2

980*675*1270

350

RO-11A

1.20

1.10

11

5.5*2

/

60

G3/4

852*1274*1330

450

RO-15A

1.60

1.36

14.8

3.7*4

/

63

G1 1/2

1565*1274*1330

700

RO-16.5A

1.80

1.65

16.5

5.5*3

/

63

G1 1/2

1565*1274*1330

710

RO-22A

2.40

2.20

22

5.5*4

/

63

G1 1/2

1565*1274*1330

730

RO-33A

3.60

3.30

33

5.5*6

/

65

G1 1/2

1565*1274*1775

1020

RO-44A

4.80

4.40

44

5.5*8

/

68

G1 1/2

1565*1274*1775

1250
