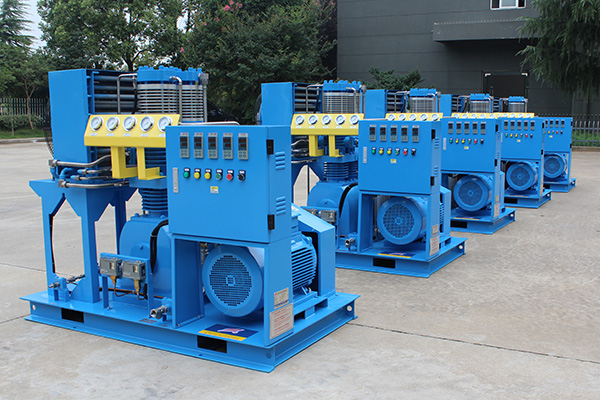

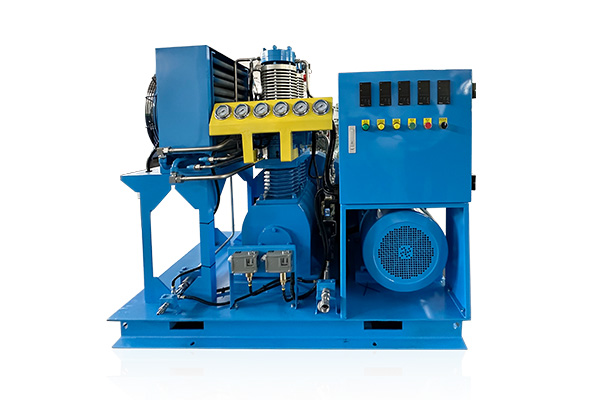

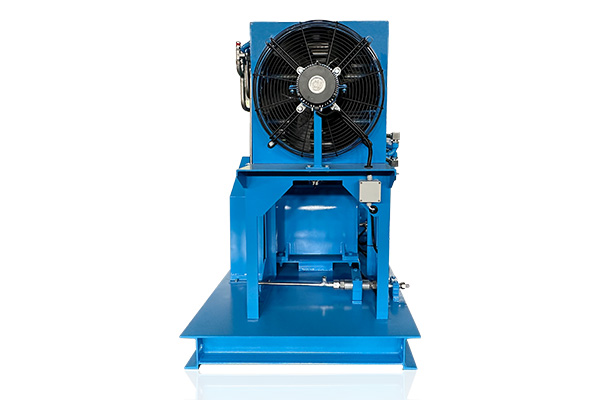

High Pressure Oil Free Oxygen Compressor Nitrogen Compressor

The oxygen compressor adopts a completely oil-free design, and friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties.

  • Working Pressure:150~200[ bar ]2175~2900[ psig ]
  • Free Air Delivery:35.5~5295[ cfm ]1~150[ m3/min ]
  • Working Power:1.5~45[ kw ]2~60[ hp ]

Product Details


Product Features

●100% oil-free, stainless steel cylinder, without pollution, keep gas purity unchanged.

● Four-stage compression, each stage is equipped with a safety valve to ensure safety and reliability.

● Low speed and heavy load design guarantee the life of wearing parts effectively.

● Small pressure ratio design. The inlet and outlet pressures and exhaust temperatures at all levels are accurately controlled.

● Pipeline valves are designed with large diameter and low flow rate to ensure performance and safety.

● Low noise, the average noise is lower than 75dB(A), it can work in the hospital area.

● Heavy-duty design, it can run continuously and stably for 24 hours.

Technical Parameters

ModelCapacity
(m3/h)
Inlet P
(Barg)
Outlet P
(Barg)
Power
(kW)
Inlet/Out
Temp(°C)
Dimension
L*W*H(mm)
Inlet SizeOutlet SizeWeight
(Kg)
GOW-1~3/4-1501~33~41501.5~3.045850*640*680M14*1.5M14*1.5140
GOW-1~3/4-2001~33~42001.5~3.045850*640*680M14*1.5M14*1.5140
GOW-4~12/4-1504~123~41503.0~5.5451000*800*1100DN15M16*1.5320
GOW-4~12/4-2004~123~42003.0~5.5451000*800*1100DN15M16*1.5320
GOW-10~15/4-15010~153~41505.5~7.5451050*750*1020DN15M16*1.5450
GOW-10~15/4-20010~153~42005.5~7.5451050*750*1020DN15M16*1.5450
GOW-13~60/4-15013~603~415011~18.5451650*950*1470DN25M16*1.5960
GOW-13~60/4-20013~603~420011~18.5451650*950*1470DN25M16*1.5960
GOW-60~70/4-15060~703~415022451950*1350*1400DN40M22*1.51300
GOW-80~150/4-15080~1503~415030~45452100*1100*1600DN50M22*1.52000
GOW-80~150/4-20080~1503~420030~45452100*1100*1600DN50M22*1.52000
