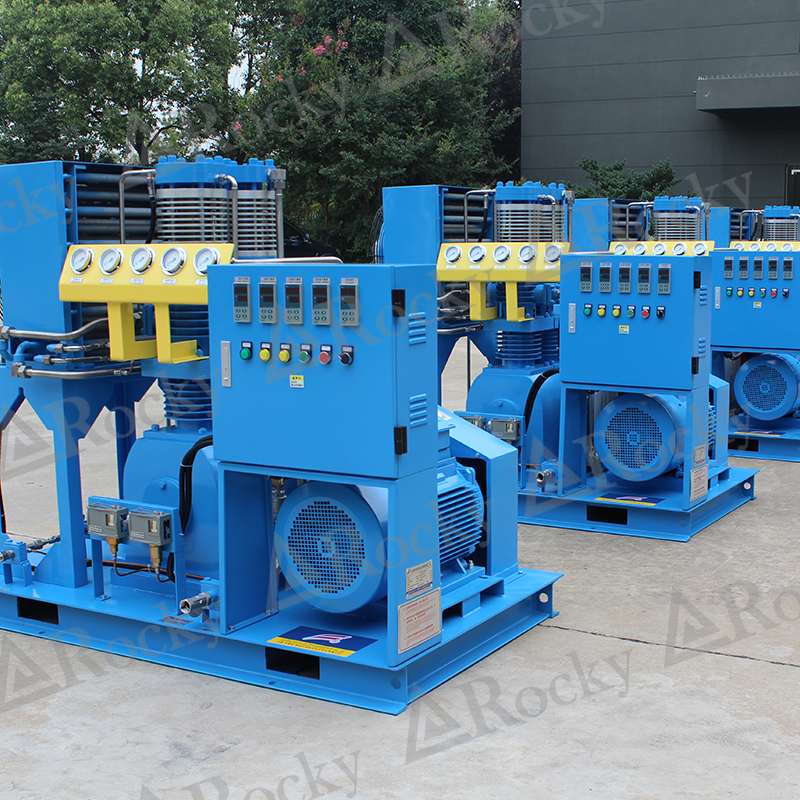

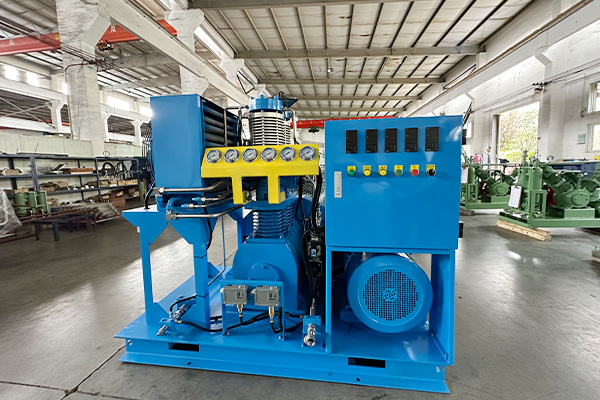

Medical Oxygen Compressor Oil Free Gas Booster Compressor

Product Description

80-150Nm3 wind type oil-free oxygen bottle filling compressor

The oxygen compressor adopts a completely oil-free design, and friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties.

Product advantages of oxygen booster

1. The entire compression system is not lubricated with thin oil, which avoids the possibility of contact between oil and high-pressure high-purity oxygen, and ensures the safety of the machine;

2. The whole system has no lubrication and oil distribution system, the machine structure is simple, the control is convenient, and the operation is convenient;

3. The entire system is oil-free, so the compressed medium oxygen is free from pollution, and the purity of oxygen at the inlet and outlet of the compressor is the same.

This cylinder filling oxygen compressor is suitable for inlet pressure 3-4barg (40-60psig) and discharge pressure 150barg (2150psig)

The flow rate of small PSA air separation oxygen system of 80NM3-150NM3/hour provides clean oxygen filling service for oxygen cutting in community and small island hospitals. It can run continuously for 24 hours, and can reach more than 20 bottles each time.

Features of this oxygen booster compressor

Four-stage compression, water-cooled cooling method and stainless steel water cooler are adopted to ensure good cooling effect of the compressor and effectively prolong the service life of key wearing parts. The inlet is equipped with low intake pressure and the exhaust end is equipped with exhaust. Each level of high pressure protection, high exhaust temperature protection, safety valve and temperature display. If the temperature is too high and the pressure is too high, the system will alarm and stop to ensure safe operation. There is a forklift on the bottom of the compressor, which can be easily transferred. construction site.

Our standard high-pressure oxygen compressor has passed the EU CE certification to meet the requirements of the EU market, and can also provide customized oxygen compressors according to customer conditions.
