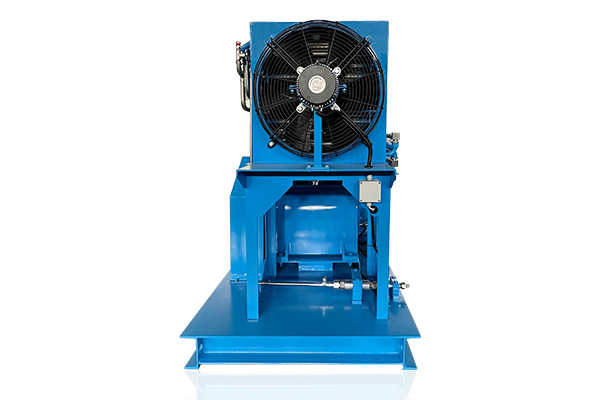

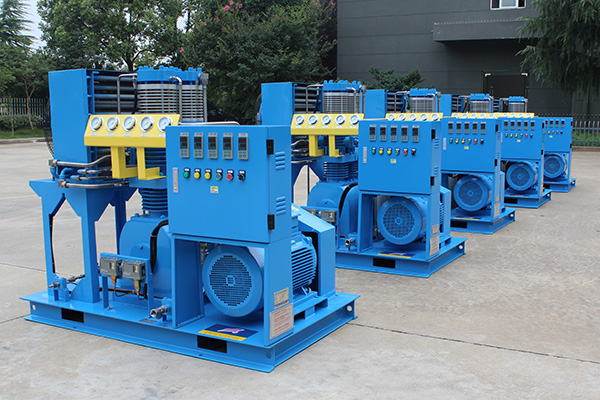

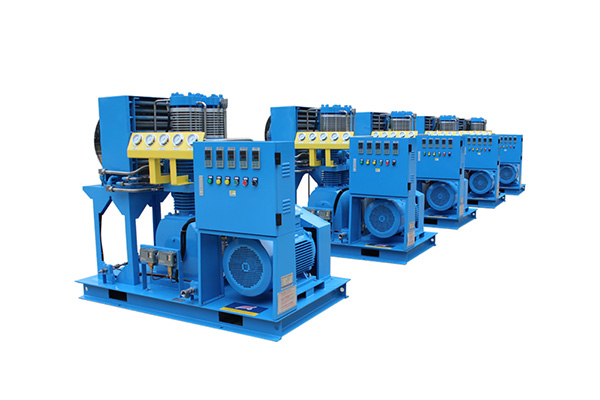

100% Oil-Free Screw Compressor Medical Oxygen Gas Booster Compressor

The oxygen compressor adopts a completely oil-free design, and friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties.

  • Working Pressure:150~200[ bar ]2175~2900[ psig ]
  • Free Air Delivery:35.3~5295[ cfm ]1-150[ m3/min ]
  • Working Power:1.5~45[ kw ]2~60[ hp ]

Product Details


Product Features

100% oil-free, stainless steel cylinder, without pollution, keep gas purity unchanged.

Four-stage compression, each stage is equipped with a safety valve to ensure safety and reliability.

Low speed and heavy load design guarantee the life of wearing parts effectively.

Small pressure ratio design. The inlet and outlet pressures and exhaust temperatures at all levels are accurately controlled.

Pipeline valves are designed with large diameter and low flow rate to ensure performance and safety.

Low noise, the average noise is lower than 75dB(A), it can work in the hospital area.

● Heavy-duty design, it can run continuously and stably for 24 hours.

Technical Parameters

ModelCapacity
(m3/h)
Inlet P
(Barg)
Outlet P
(Barg)
Power
(kW)
Inlet/Out
Temp(°C)
Dimension
L*W*H(mm)
Inlet SizeOutlet SizeWeight
(Kg)
GOW-1~3/4-1501~33~41501.5~3.045850*640*680M14*1.5M14*1.5140
GOW-1~3/4-2001~33~42001.5~3.045850*640*680M14*1.5M14*1.5140
GOW-4~12/4-1504~123~41503.0~5.5451000*800*1100DN15M16*1.5320
GOW-4~12/4-2004~123~42003.0~5.5451000*800*1100DN15M16*1.5320
GOW-10~15/4-15010~153~41505.5~7.5451050*750*1020DN15M16*1.5450
GOW-10~15/4-20010~153~42005.5~7.5451050*750*1020DN15M16*1.5450
GOW-13~60/4-15013~603~415011~18.5451650*950*1470DN25M16*1.5960
GOW-13~60/4-20013~603~420011~18.5451650*950*1470DN25M16*1.5960
GOW-60~70/4-15060~703~415022451950*1350*1400DN40M22*1.51300
GOW-80~150/4-15080~1503~415030~45452100*1100*1600DN50M22*1.52000
GOW-80~150/4-20080~1503~420030~45452100*1100*1600DN50M22*1.52000
