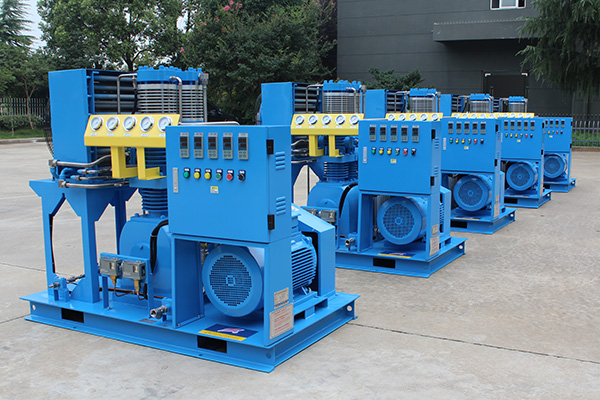

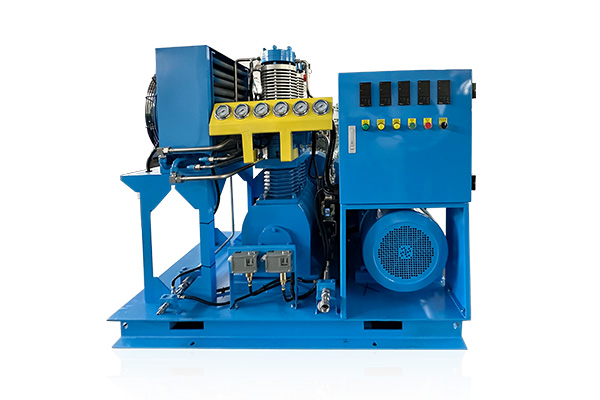

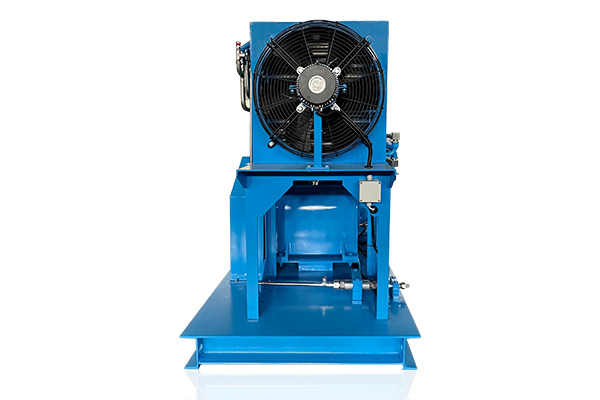

80-150 Nm3/H 200 bar High Pressure Oil Free Medical Compressor Oxygen Booster

The oxygen compressor adopts a completely oil-free design, and friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties.

Working Pressure:150~200[ bar ]2175~2900[ psig ]
Free Air Delivery:35.3~5295[ cfm ]1- 150 [ m³/min ]
Working Power:1.5-45[ kw ]2~60[ hp ]

PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

80-150 Nm3/H 200 bar High Pressure Oil Free Medical Compressor Oxygen Booster

Product Details

Product Features

●100% oil-free, stainless steel cylinder, without pollution, keep gas purity unchanged.

● Four-stage compression, each stage is equipped with a safety valve to ensure safety and reliability.

● Low speed and heavy load design guarantee the life of wearing parts effectively.

● Small pressure ratio design. The inlet and outlet pressures and exhaust temperatures at all levels are accurately controlled.

● Pipeline valves are designed with large diameter and low flow rate to ensure performance and safety.

● Low noise, the average noise is lower than 75dB(A), it can work in the hospital area.

● Heavy-duty design, it can run continuously and stably for 24 hours.

Technical Parameters

Model	Capacity (m3/h)	Inlet P (Barg)	Outlet P (Barg)	Power (kW)	Inlet/Out Temp(°C)	Dimension LWH(mm)	Inlet Size	Outlet Size	Weight (Kg)
GOW-1~3/4-150	1~3	3~4	150	1.5~3.0	45	850640680	M14*1.5	M14*1.5	140
GOW-1~3/4-200	1~3	3~4	200	1.5~3.0	45	850640680	M14*1.5	M14*1.5	140
GOW-4~12/4-150	4~12	3~4	150	3.0~5.5	45	10008001100	DN15	M16*1.5	320
GOW-4~12/4-200	4~12	3~4	200	3.0~5.5	45	10008001100	DN15	M16*1.5	320
GOW-10~15/4-150	10~15	3~4	150	5.5~7.5	45	10507501020	DN15	M16*1.5	450
GOW-10~15/4-200	10~15	3~4	200	5.5~7.5	45	10507501020	DN15	M16*1.5	450
GOW-13~60/4-150	13~60	3~4	150	11~18.5	45	16509501470	DN25	M16*1.5	960
GOW-13~60/4-200	13~60	3~4	200	11~18.5	45	16509501470	DN25	M16*1.5	960
GOW-60~70/4-150	60~70	3~4	150	22	45	195013501400	DN40	M22*1.5	1300
GOW-80~150/4-150	80~150	3~4	150	30~45	45	210011001600	DN50	M22*1.5	2000
GOW-80~150/4-200	80~150	3~4	200	30~45	45	210011001600	DN50	M22*1.5	2000
