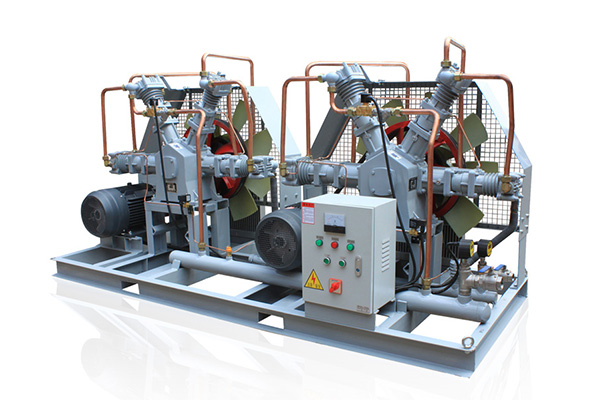

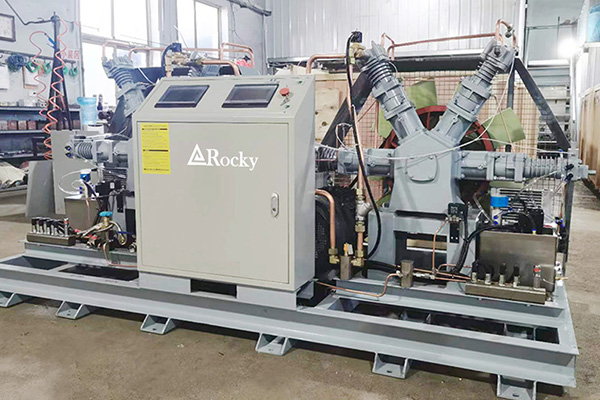

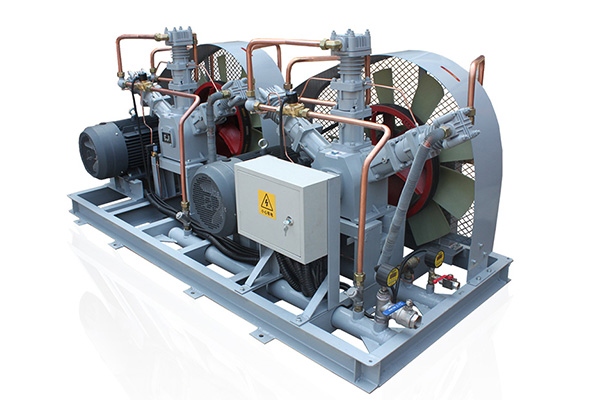

High pressure oil-free oxygen booster piston type oil-free silent air compressor

The oxygen compressor adopts a completely oil-free design, and friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties.

  • Working Pressure:150[ bar ]2175[ psig ]
  • Free Air Delivery:176.5~4942[ cfm ]5~140[ m3/min ]
  • Working Power:4~22[ kw ]5.3~30[ hp ]

Product Details


Product Features

● PLC touch screen control, remote control optional.

● Inlet and outlet pressure overload, temperature overheating, cooling water failure, System will alarm and shutdown automaticly.

● Running time display, maintenance reminder.

● Self-contained water tank and circulation pump, no need for external piping. use antifreeze, no fear of low temperature.

● Small vibration, low noise, long life of wearing parts.

Technical Parameters

Model

Capacity

(m3/h)

Inlet P (Barg)Outlet P (Barg)

Motor Power

(Kw)

Rotating speedInlet SizeOutlet SizeDimension L*W*H(mm)Weight (kg)
RWWY(1-5)4-15051504.0470RC1/2"G5/81350*850*1100380
RWWY-10/4-1501015055470RC1/2"G5/81350*1050*1100410
RWWY-15/4-1501515075640RC1/2"G5/81350*1050*1100420
RWWY-20/4-1502015011580RC1/2"G5/81350*1050*1100430
RWWY-25/4-1502515011640RC1/2"G5/81350*1050*1100430
RWWY-30/4-1503015015470RC1/2"G5/81350*1050*1100450
RWWY-35/4-1503515015470RC1/2"G5/81350*1050*1100450
RWWY-40/4-1504015015580RC1/2"G5/81350*1050*1100450
RSWY-45/4-1504515018.5580RC1"G5/81450*1100*1250520
RSWY-50/4-1505015018.5580RC1"G5/81450*1100*1250520
RSWY-55/4-1505515018.5580RC1"G5/81450*1100*1250520
RSWY-60/4-1506015022640RC1"G5/81450*1100*1250540
RSWY-65/4-1506515022720RC1"G5/81450*1100*1250540
RSWY-70/4-1507015022720RC1"G5/81450*1100*1250540
RWWY-75/4-150-II7515015*2580RC1"G5/82800*1250*12001060
RWWY-80/4-150-II8015015*2580RC1"G5/82800*1250*12001060
RWWY-85/4-150-II8515015*2580RC1"G5/82800*1250*12001060
RSWY-90/4-150-II9015018.5*2580RC1"G5/82900*1320*13001260
RSWY-95/4-150-II9515018.5*2580RC1"G5/82900*1320*13001260
RSWY-100/4-150-II10015018.5*2580RC1"G5/82900*1320*13001260
RSWY-105/4-150-II10515018.5*2580RC1"G5/82900*1320*13001260
RSWY-1104-150-II11015018.5*2580RC1"G5/82900*1320*13001260
RSWY-1154-150-II11515022*2640RC1"G5/82900*1320*13001350
RSWY-12/4-150-II12015022*2640RC1"G5/82900*1320*13001350
RSWY-125/4-150-II12515022*2640RC1"G5/82900*1320*13001350
RSWY-130/4-150-II13015022*2720RC1"G5/82900*1320*13001350
RSWY-135/4-150-II13515022*2720RC1"G5/82900*1320*13001350
RSWY-140/4-150-II14015022*2720RC1"G5/82900*1320*13001350
