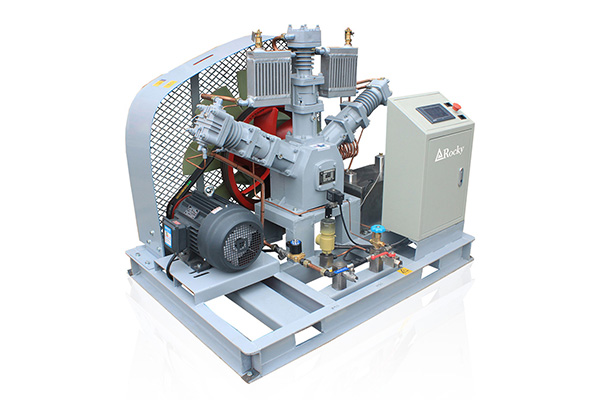

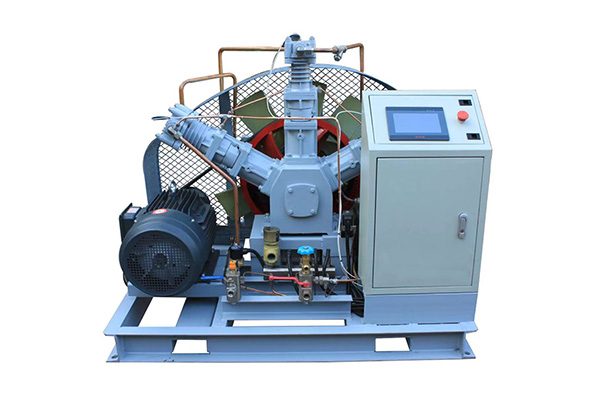

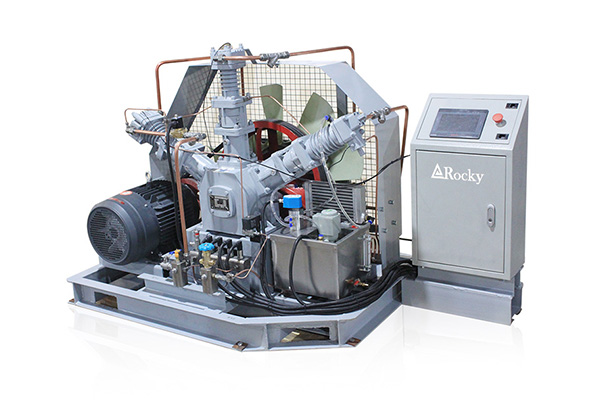

200 Bar high pressure cylinder filling oxygen booster compressor

The oxygen compressor adopts a completely oil-free design, and friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties.

Working Pressure:150[ bar ]2175[ psig ]
Free Air Delivery:176.5~4942[ cfm ]5~140[ m³/min ]
Working Power:4~22[ kw ]5.3~30[ hp ]

PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

200 Bar high pressure cylinder filling oxygen booster compressor

Product Details

Product Features

● PLC touch screen control, remote control optional.

●Inlet and outlet pressure overload, temperature overheating, cooling water failure, System will alarm and shutdown automaticly.

● Running time display, maintenance reminder.

● Self-contained water tank and circulation pump, no need for external piping. use antifreeze, no fear of low temperature.

● Small vibration, low noise, long life of wearing parts.

Technical Parameters

Model	Capacity (m3/h)	Inlet P (Barg)	Outlet P (Barg)	Motor Power (Kw)	Rotating speed	Inlet Size	Outlet Size	Dimension LWH(mm)	Weight (kg)
RWWY(1-5)4-150	5	4	150	4.0	470	RC1/2"	G5/8	13508501100	380
RWWY-10/4-150	10	4	150	55	470	RC1/2"	G5/8	135010501100	410
RWWY-15/4-150	15	4	150	75	640	RC1/2"	G5/8	135010501100	420
RWWY-20/4-150	20	4	150	11	580	RC1/2"	G5/8	135010501100	430
RWWY-25/4-150	25	4	150	11	640	RC1/2"	G5/8	135010501100	430
RWWY-30/4-150	30	4	150	15	470	RC1/2"	G5/8	135010501100	450
RWWY-35/4-150	35	4	150	15	470	RC1/2"	G5/8	135010501100	450
RWWY-40/4-150	40	4	150	15	580	RC1/2"	G5/8	135010501100	450
RSWY-45/4-150	45	4	150	18.5	580	RC1"	G5/8	145011001250	520
RSWY-50/4-150	50	4	150	18.5	580	RC1"	G5/8	145011001250	520
RSWY-55/4-150	55	4	150	18.5	580	RC1"	G5/8	145011001250	520
RSWY-60/4-150	60	4	150	22	640	RC1"	G5/8	145011001250	540
RSWY-65/4-150	65	4	150	22	720	RC1"	G5/8	145011001250	540
RSWY-70/4-150	70	4	150	22	720	RC1"	G5/8	145011001250	540
RWWY-75/4-150-II	75	4	150	15*2	580	RC1"	G5/8	280012501200	1060
RWWY-80/4-150-II	80	4	150	15*2	580	RC1"	G5/8	280012501200	1060
RWWY-85/4-150-II	85	4	150	15*2	580	RC1"	G5/8	280012501200	1060
RSWY-90/4-150-II	90	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-95/4-150-II	95	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-100/4-150-II	100	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-105/4-150-II	105	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-1104-150-II	110	4	150	18.5*2	580	RC1"	G5/8	290013201300	1260
RSWY-1154-150-II	115	4	150	22*2	640	RC1"	G5/8	290013201300	1350
RSWY-12/4-150-II	120	4	150	22*2	640	RC1"	G5/8	290013201300	1350
RSWY-125/4-150-II	125	4	150	22*2	640	RC1"	G5/8	290013201300	1350
RSWY-130/4-150-II	130	4	150	22*2	720	RC1"	G5/8	290013201300	1350
RSWY-135/4-150-II	135	4	150	22*2	720	RC1"	G5/8	290013201300	1350
RSWY-140/4-150-II	140	4	150	22*2	720	RC1"	G5/8	290013201300	1350
