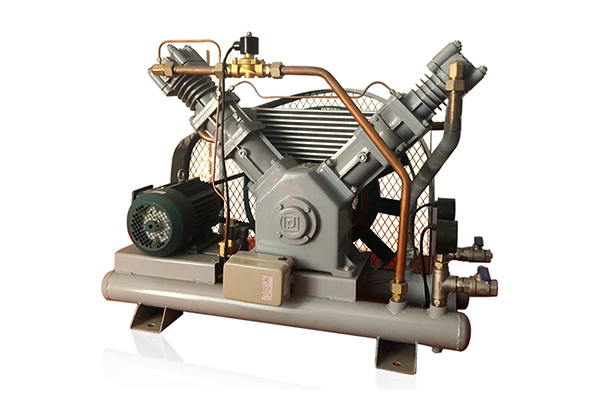

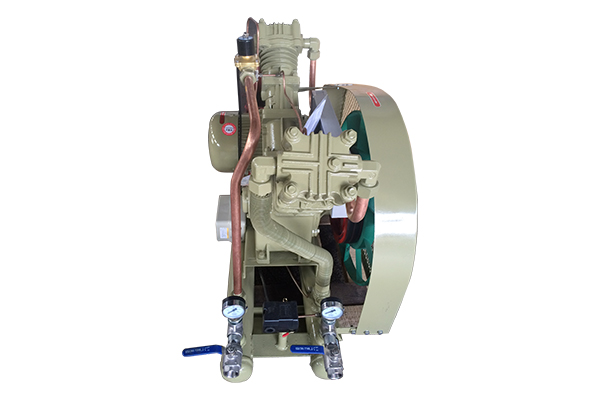

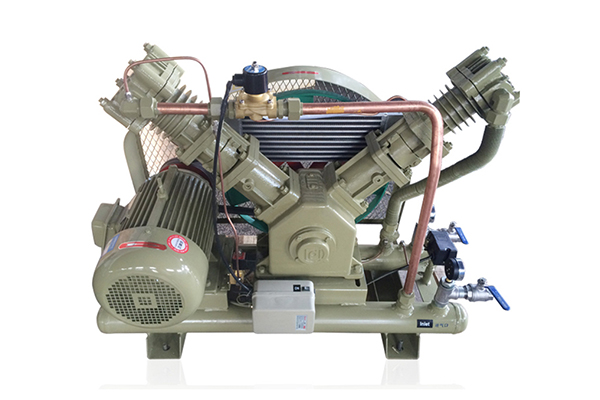

Medium pressure oil-free oxygen and nitrogen booster

Reciprocating piston differential structure, single-acting air cooling, three-stage compression: integral circulating aluminum intercooler to ensure the exhaust temperature. Single and double units ca

  • Working Pressure:16~25[ bar ]232~363[ psig ]
  • Free Air Delivery:127~1518[ cfm ]3.6~430[ m3/min ]
  • Working Power:0.75~22[ kw ]0.9~30[ hp ]

Product Details

Medium pressure oil-free air compressor

Reciprocating piston differential structure, single-acting air cooling, three-stage compression: integral circulating aluminum intercooler to ensure the exhaust temperature. Single and double units can be freely combined, controlled by an automatic pressure regulator, and can be started freely without special personnel on duty. The air storage tank is installed below to provide a stable air source, with low vibration, low noise, long life and easy maintenance. Provide a medium-pressure pure gas source, the exhaust gas does not contain oil, and does not pollute secondary products and gas facilities.



Product Feature


1. Oil-free design, the guide ring and piston ring are made of self-lubricating materials, 100% oil-free lubrication, and the bearing part is designed with high temperature resistance to avoid gas pollution during the compression process and ensure the purity of the gas.
2. Small size, light weight, easy maintenance, no need to add lubricating oil, low maintenance cost.
3. Microcomputer controller control, high compressor temperature exhaust, low intake pressure, high exhaust pressure, alarm, high degree of automation, reliable operation of the compressor.
4. Data remote display and remote control can be configured according to customer requirements.


Application industry

Widely used in process environments that require medium pressure (1.6MPa~3.5MPa, up to 4.0MPa), It is more suitable for tightness test, pressure test, plastic blowing, bottle filling, high pressure leak detection, pipeline cleaning, electronic components, oil exploitation and other occasions that require high gas source.


Technical Parameters

Compressed media
(General for oxygen and nitrogen)
ModelCapacity
(Nm3/h)
Intake pressure
(MPa)
Exhaust pressure
(MPa)
Power
(kW)
Dimensions
(mm)
Oxygen/NitrogenVW-0.33/5-25200.52.5 1220*500*800
Oxygen/NitrogenZWN-3.6/4-83.60.40.8 0.75 750*500*650
Oxygen/NitrogenVWN-10/5-25100.52.5 1600*700*1500
Oxygen/NitrogenVWN-60/5-16600.51.6 5.5 1250*500*900
Oxygen/NitrogenVWN-20/6-20200.62.0 1250*600*900
Oxygen/NitrogenVWN-20/5-25200.52.5 1050*600*1000
Oxygen/NitrogenVWN-40/7-25400.72.5 1250*500*900
Oxygen/NitrogenVWN-60/4-25600.42.5 11 1250*700*900
Oxygen/NitrogenWWN-80/4-25800.42.5 11 1350*700*1200
Oxygen/NitrogenVWN-80/7-25800.72.5 7.5 1250*700*900
Oxygen/NitrogenVWN-60/4-30600.43.0 1250*500*900
Oxygen/NitrogenVWN-50/4-30500.43.0 7.5 1250*650*1000
Oxygen/NitrogenVWN-80/5-30800.53.0 11 1250*700*1000
Oxygen/NitrogenVWN-30/5-35300.53.5 5.5 1050*500*1000
Oxygen/NitrogenVWN-50/5-35500.53.5 7.5 1050*700*1000
Oxygen/NitrogenVWN-40/5-40400.54.0 7.5 1250*600*900
Oxygen/NitrogenVWY-80/0.5-50800.055.0 18.5 1250*700*900
Oxygen/NitrogenVWND-55/5-8550.50.8 1400*810*1300
Oxygen/NitrogenVWN-60/5-10600.51.0 1250*500*900
Oxygen/NitrogenVWY-75/4-16750.41.6 7.5 1050*500*1000
Oxygen/NitrogenVWND-100/5-101000.51.0 5.5 1400*930*1350
Oxygen/NitrogenVWN-120/6-161200.61.6 11 1250*700*1000
Oxygen/NitrogenVWN-140/5-81400.50.8 5.5 1250*600*900
Oxygen/NitrogenWWND-150/4-101500.41.0 11 1430*1030*1350
Oxygen/NitrogenSWND-240/4-102400.41.0 15 1500×1100×1620
Oxygen/NitrogenVWY-120/5-101200.51.0 7.5 1250*600*1000
Oxygen/NitrogenSWY-150/4-161500.41.6 15 1250*900*1480
Oxygen/NitrogenWWN-100/4-251000.42.5 15 1350*700*1200
Oxygen/NitrogenWWN-120/6-301200.63.0 15 1250*800*1200
Oxygen/NitrogenWWN-120/6-451200.64.5 18.5 1350*1100*1100
Oxygen/NitrogenWWN-80/5-45800.54.5 15 1350*700*1200
Oxygen/NitrogenWWN-240/5-102400.51.0 151350*800*1200
Oxygen/NitrogenWWN-300/0.5-8-Ⅱ3000.050.8 22*22500*1200*800
Oxygen/NitrogenWWNFB-900/4-8-Ⅱ9000.40.8 22*22600*1000*900
Oxygen/NitrogenVWN-180/5-25-Ⅱ1800.52.5 11*21500*1350*1100
Oxygen/NitrogenWWN-200/3-18-Ⅱ2000.31.8 11*21450*1350*1100
Oxygen/NitrogenWWN-200/6-30-Ⅱ2000.63.0 11*21600*1600*1200
Oxygen/NitrogenWWFB-430/4-94300.40.9 22 1500*1000*800
